Zhiyun Crane 4

ZNAČAJKE:

Extended Arm for Full-Frame Lenses
Dual-Layer Quick Release Plates
360° Pan, 207° Tilt, 70° Roll Rotation
Bluetooth 5.0 Shutter Control
Built-In 3200 Lux Fill Light
Adjustable Color Temperature
Creative Operation Modes, 12-Hr Runtime
1.22" Touchscreen, Balance Indicators
2600mAh Batteries, PD Fast Charge

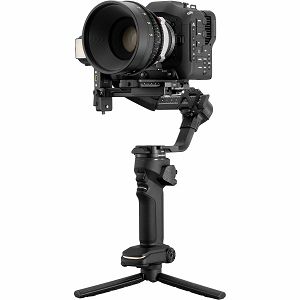

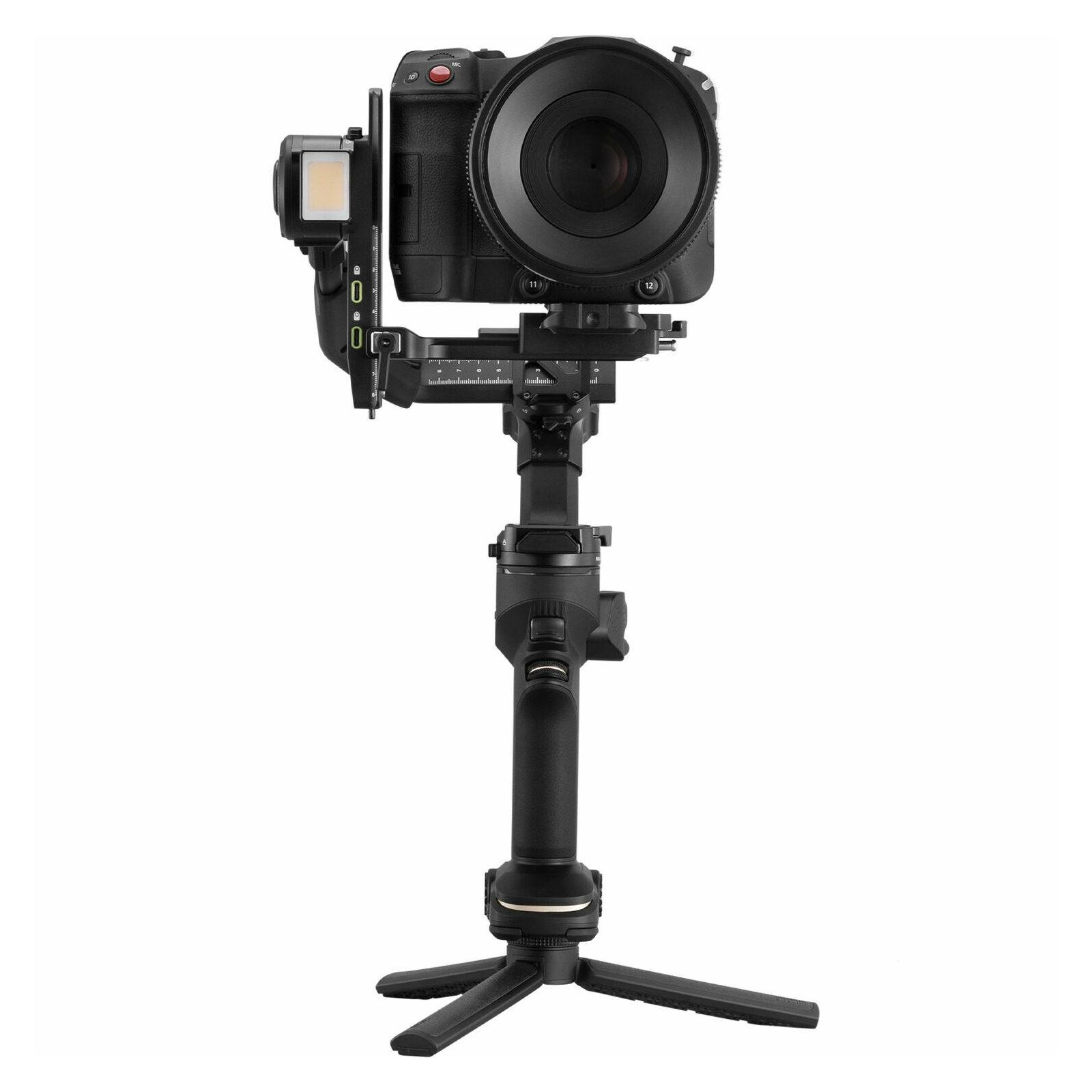

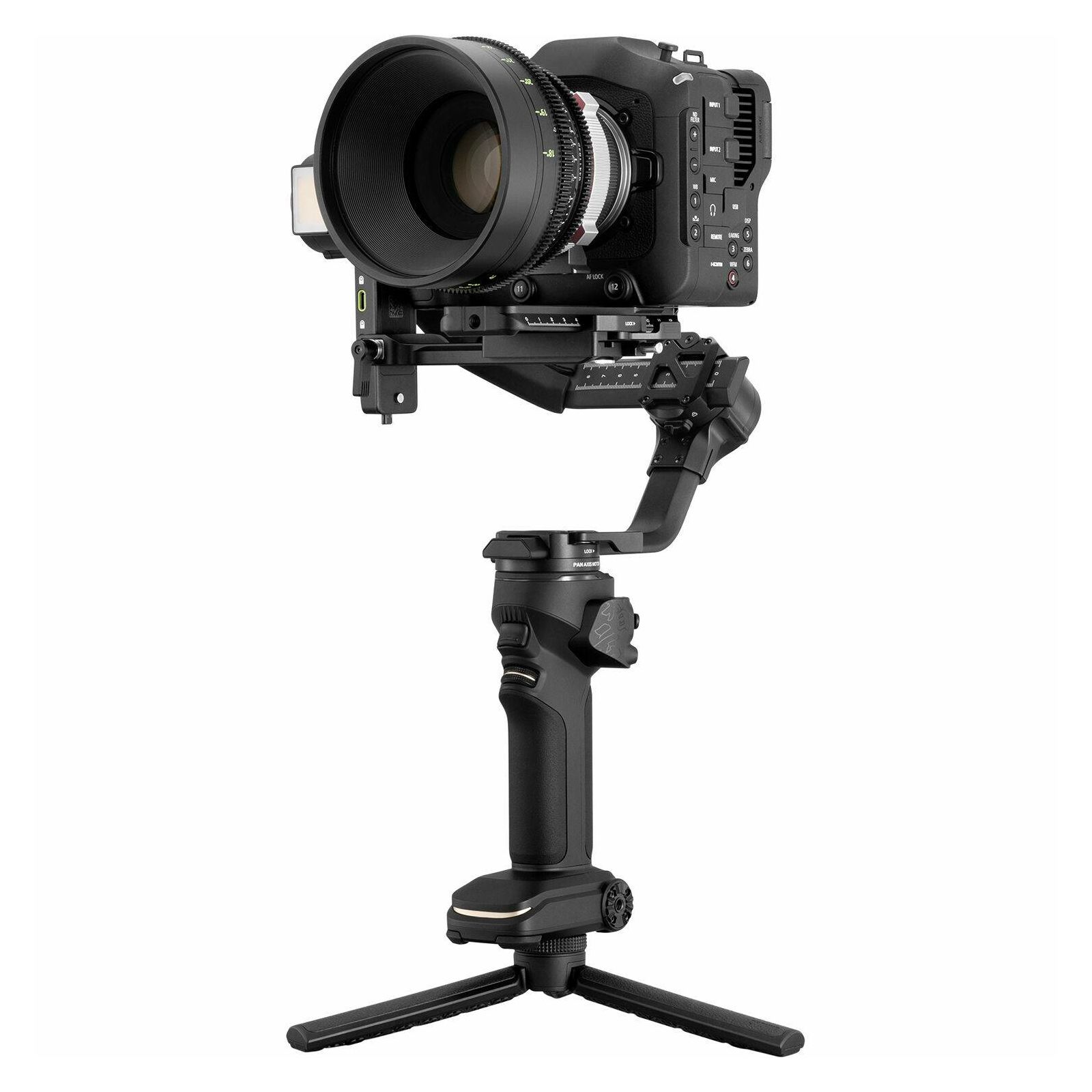

The Zhiyun CRANE 4 takes the familiar form factor and lightweight experience of previous Zhiyun gimbals while expanding the onboard features for native portrait shooting, Bluetooth shutter control, and an extended grip to accommodate cameras with full-frame lenses. Control the 360° pan, 207° tilt, and 70° roll rotation using the onboard controls. Balance indicator lights on each motor aid in achieving precise calibration. Dual-layer quick release plates facilitate both landscape and portrait-oriented shooting with ease. Easily control your settings with the 1.22" color touchscreen and Bluetooth-powered wireless shutter. The CRANE 4 also features a built-in fill light with a 3200 lux output and adjustable color temperature.

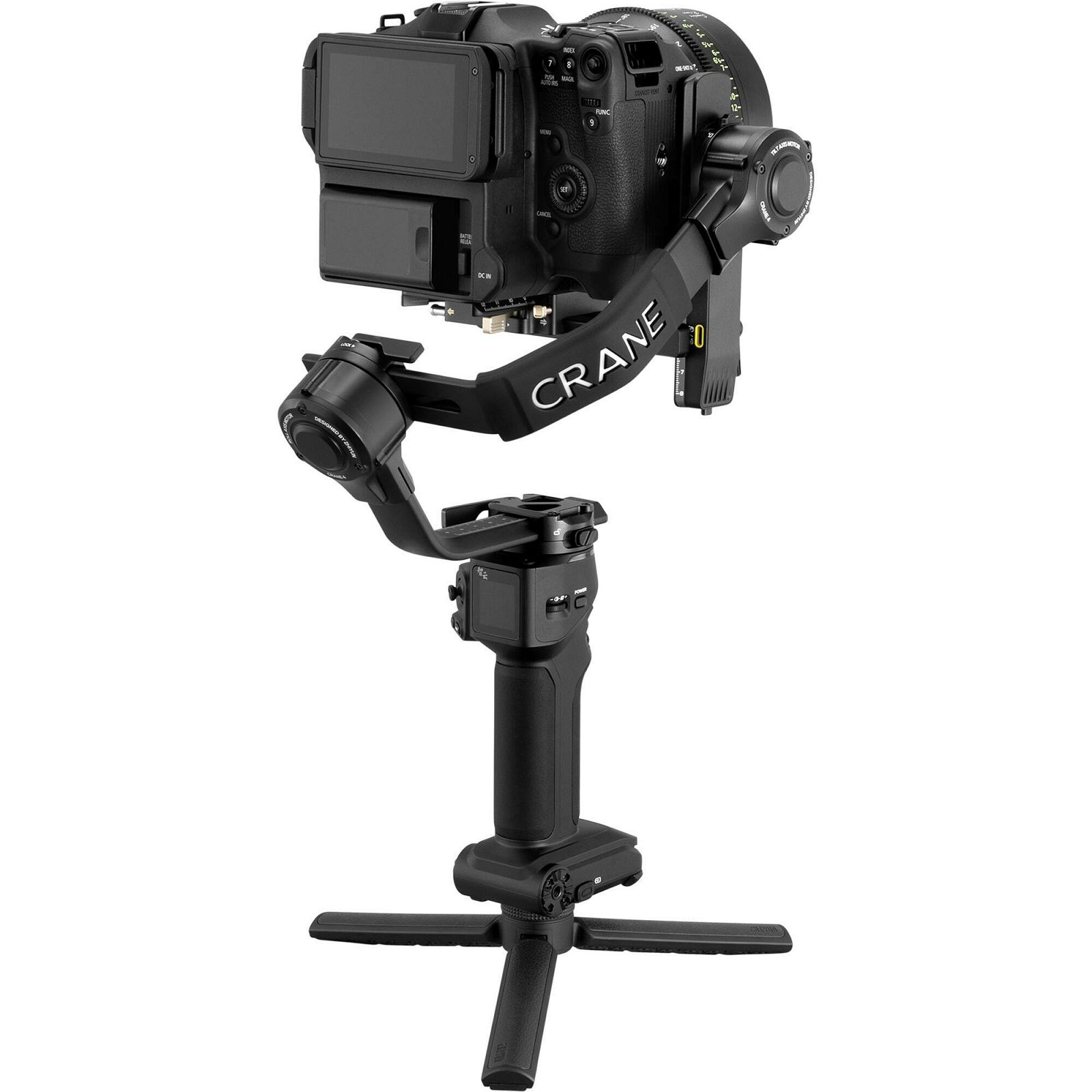

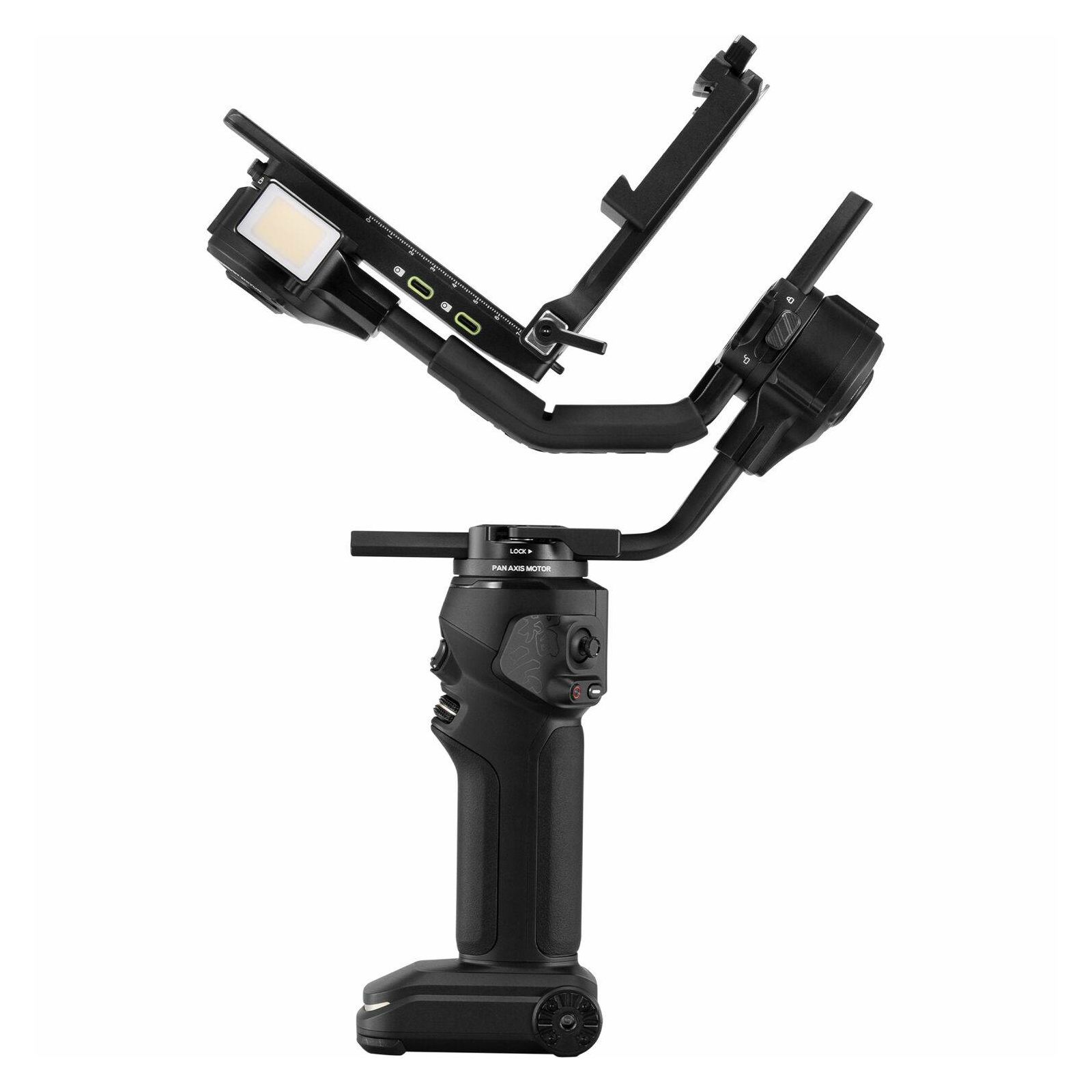

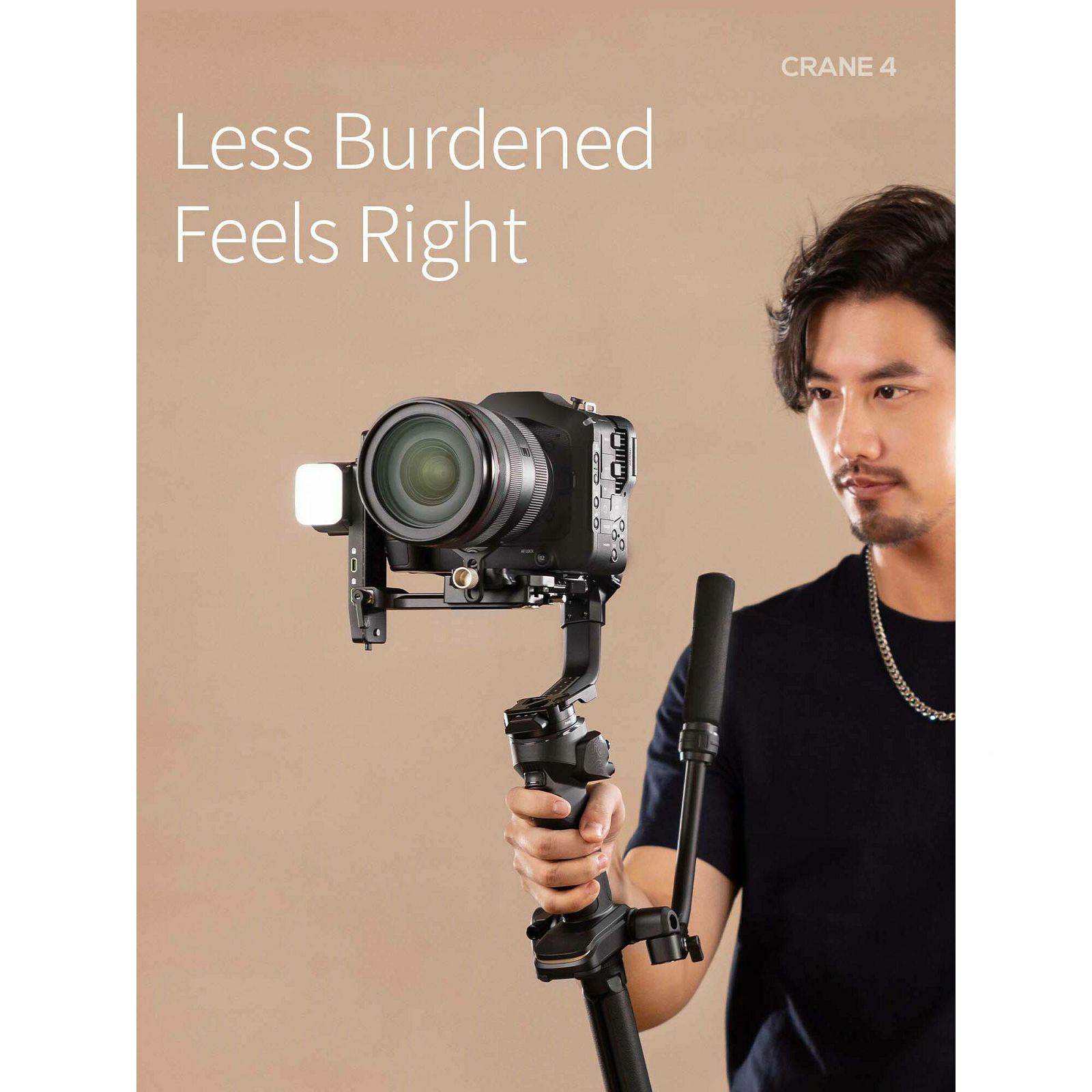

Lightweight Design, Extended Arm Length

With the CRANE 4 redesign comes an extended arm length and stronger motors, which expands the gimbal's gimbal and lens compatibility to DSLR, mirrorless, and compact cinema cameras with full-frame lenses attached.

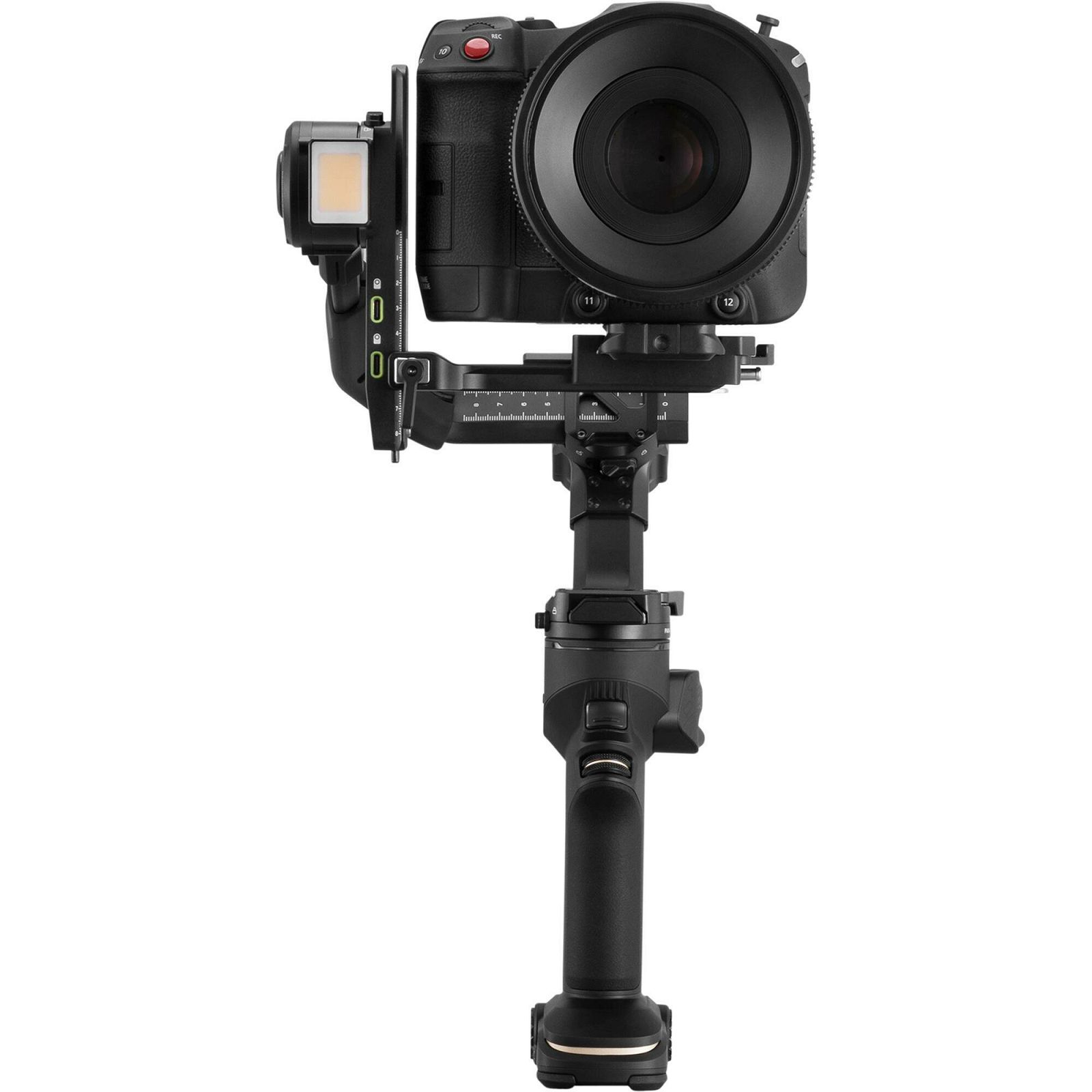

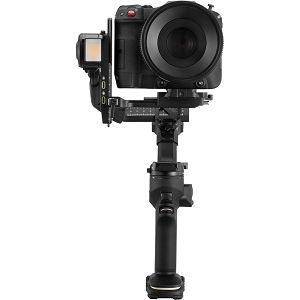

The gimbal weighs just 3.6 lb but has a load capacity capable of supporting cameras like the Canon EOS 5D Mark IV, Blackmagic Pocket Cinema Camera 6K Pro, Nikon Z8, Panasonic LUMIX S1H, and Sony a7S III, all with full-frame lenses attached.
For a full list of compatible cameras, please see the most current compatibility information on the Zhiyun website page or see the camera compatibility list in PDF format.

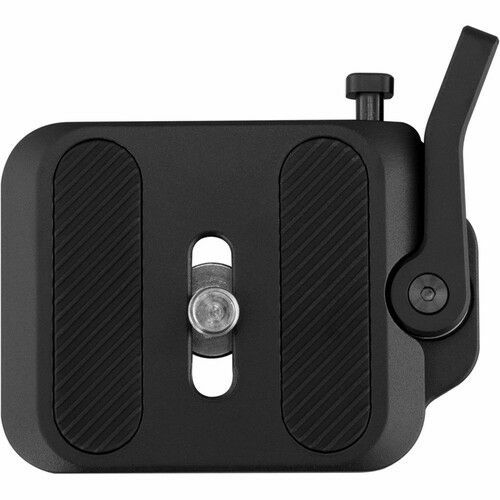

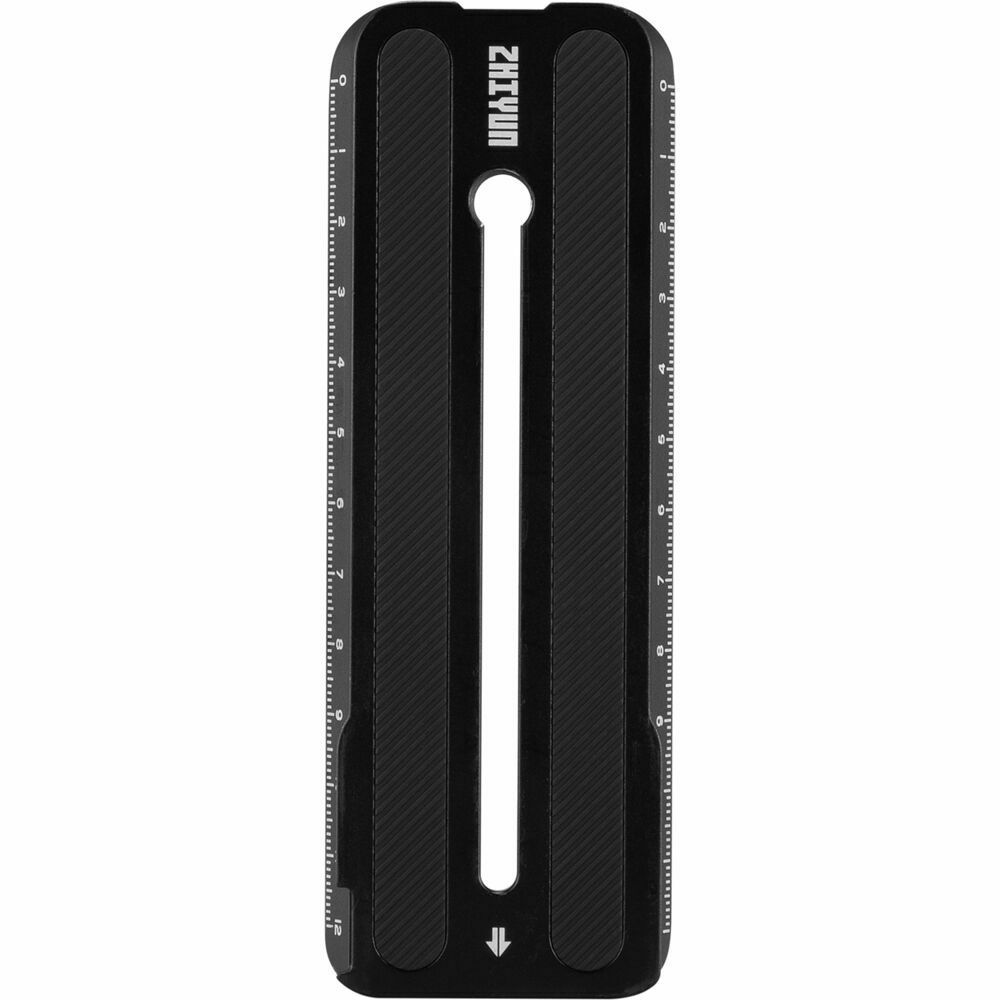

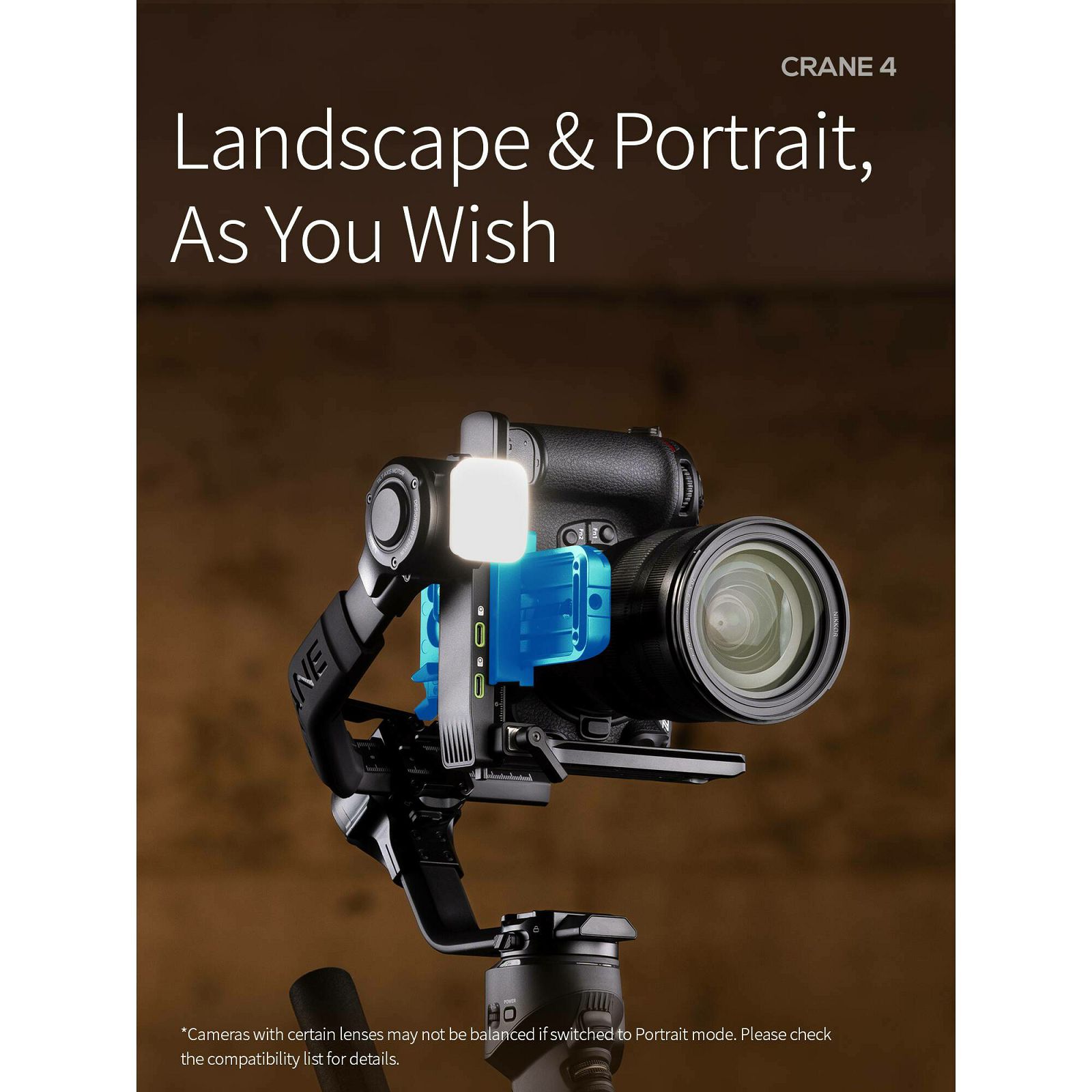

Dual-Layer Quick Release, Lens Support

Mount your camera of choice on the camera quick release plate or upper quick release plate for efficient integration and balancing with the dual-layer plates on the CRANE 4. The lower quick release plate slides in the landscape orientation baseplate and offers a mounting point for the
included lens support when using heftier full-frame lenses. The upper quick release slides easily into the portrait orientation baseplate.

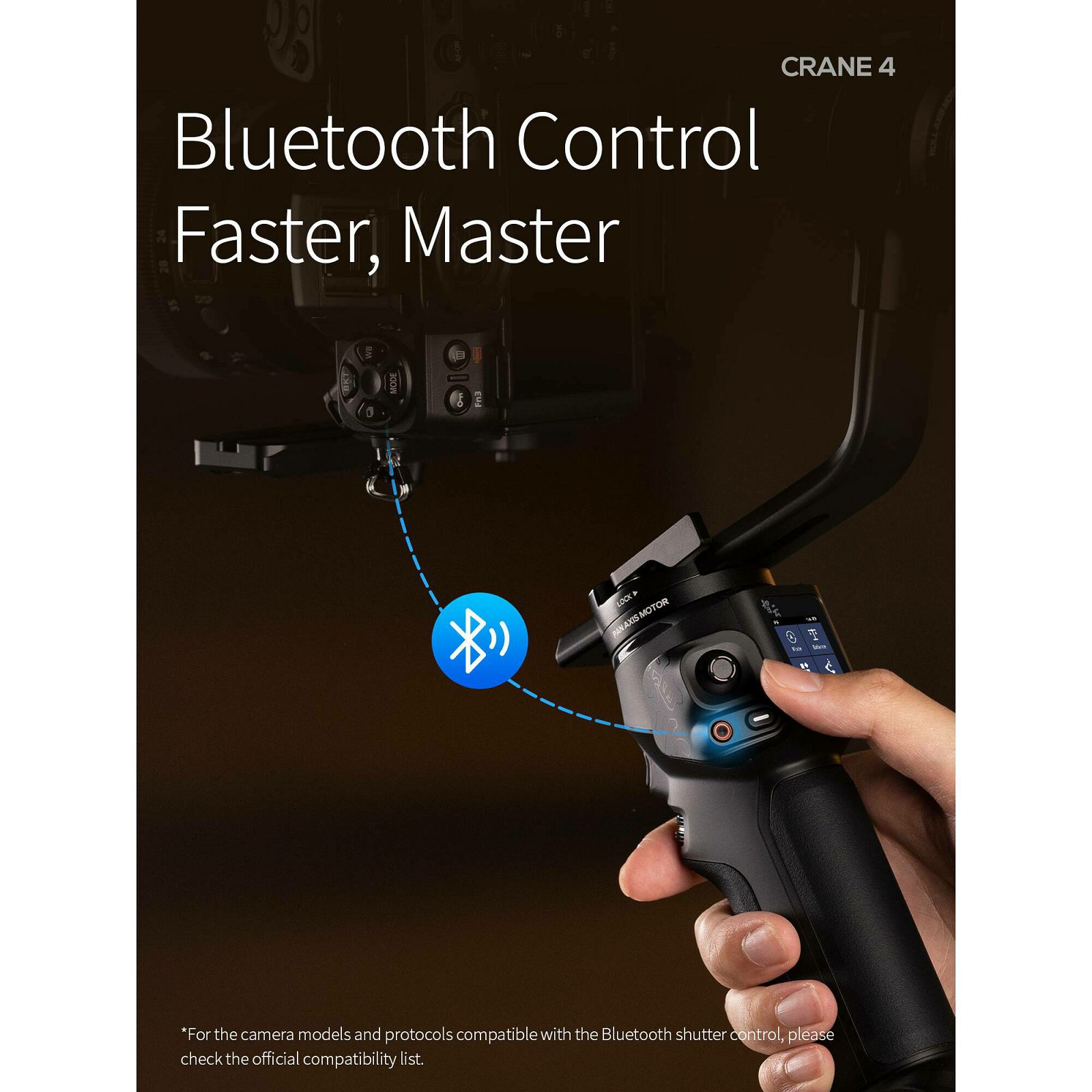

Bluetooth 5.0 Shutter Control

While the included camera control cables offer the option for wired shutter control, avoid complicated cable runs by using the embedded Bluetooth 5.0 shutter control.

Wirelessly control your compatible camera's shutter and toggle recording via the onboard controls and touchscreen. For a full list of Bluetooth-compatible cameras, please see the most current compatibility information on the Zhiyun website page or see the camera compatibility list in PDF format.

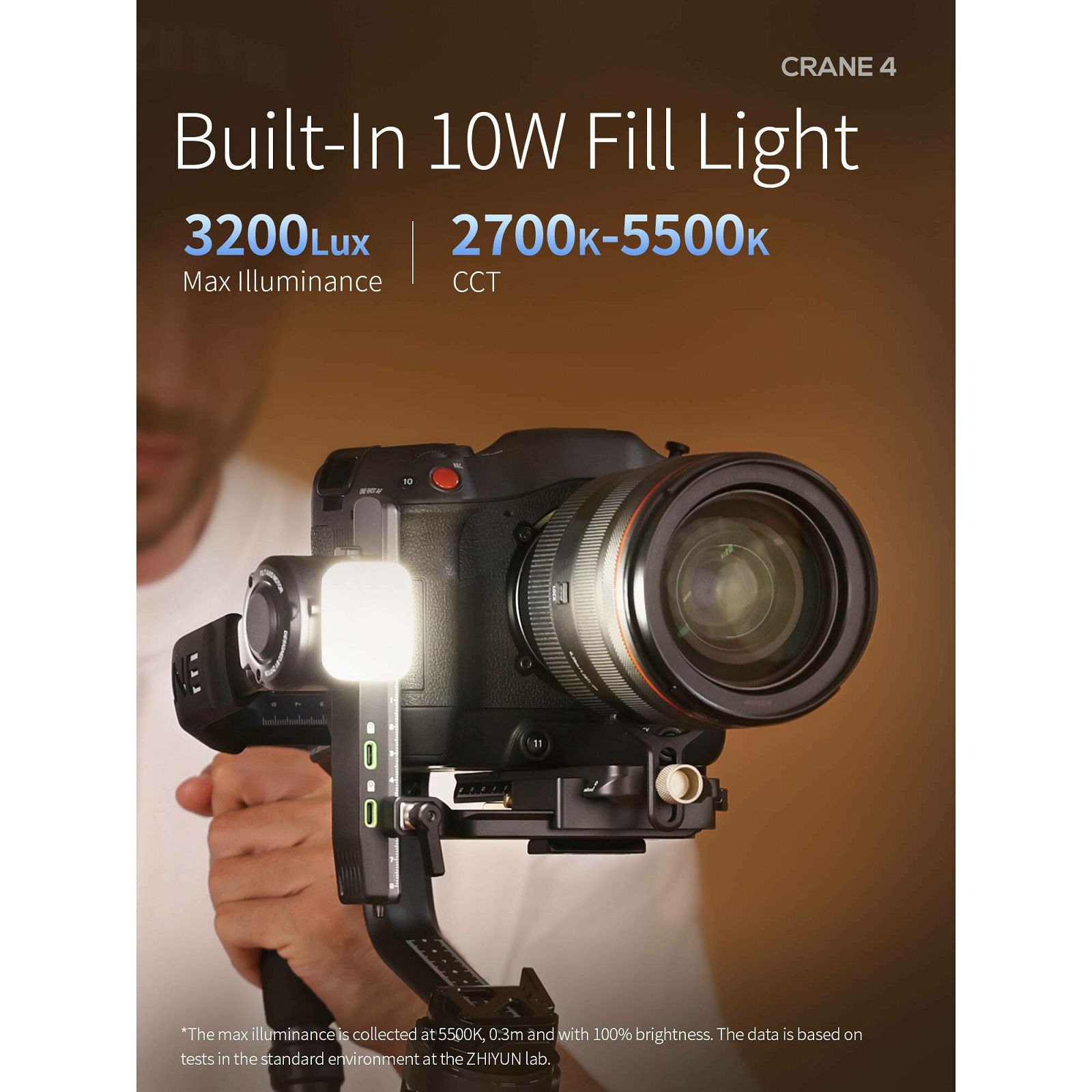

Powerful, Bright Fill Light

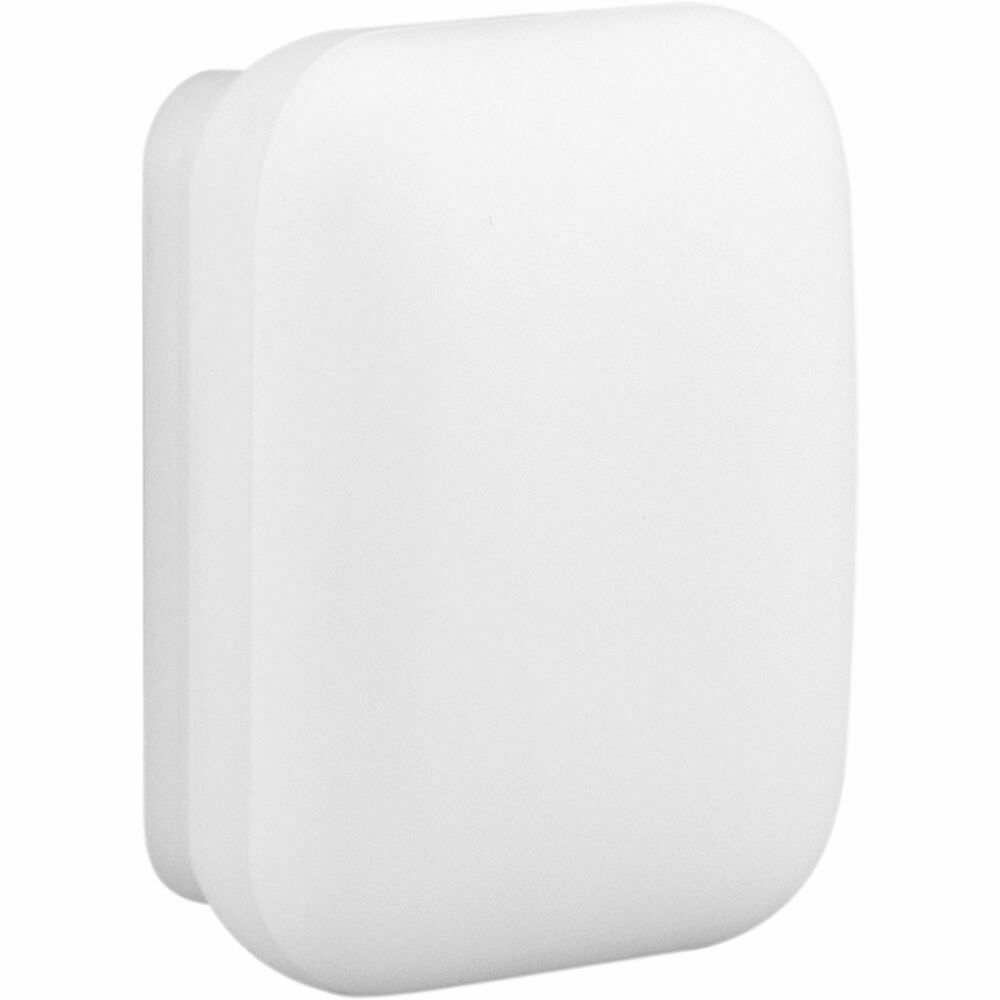

A built-in 10W fill light easily lights subjects thanks to its 3200 lux brightness. An included fill light diffuser can soften the light's effect as needed.
The light has a CRI of 95+ for accurate and natural color reproduction.
Adjust the color temperature of the light from 2700 to 5500K with the onboard control wheel.

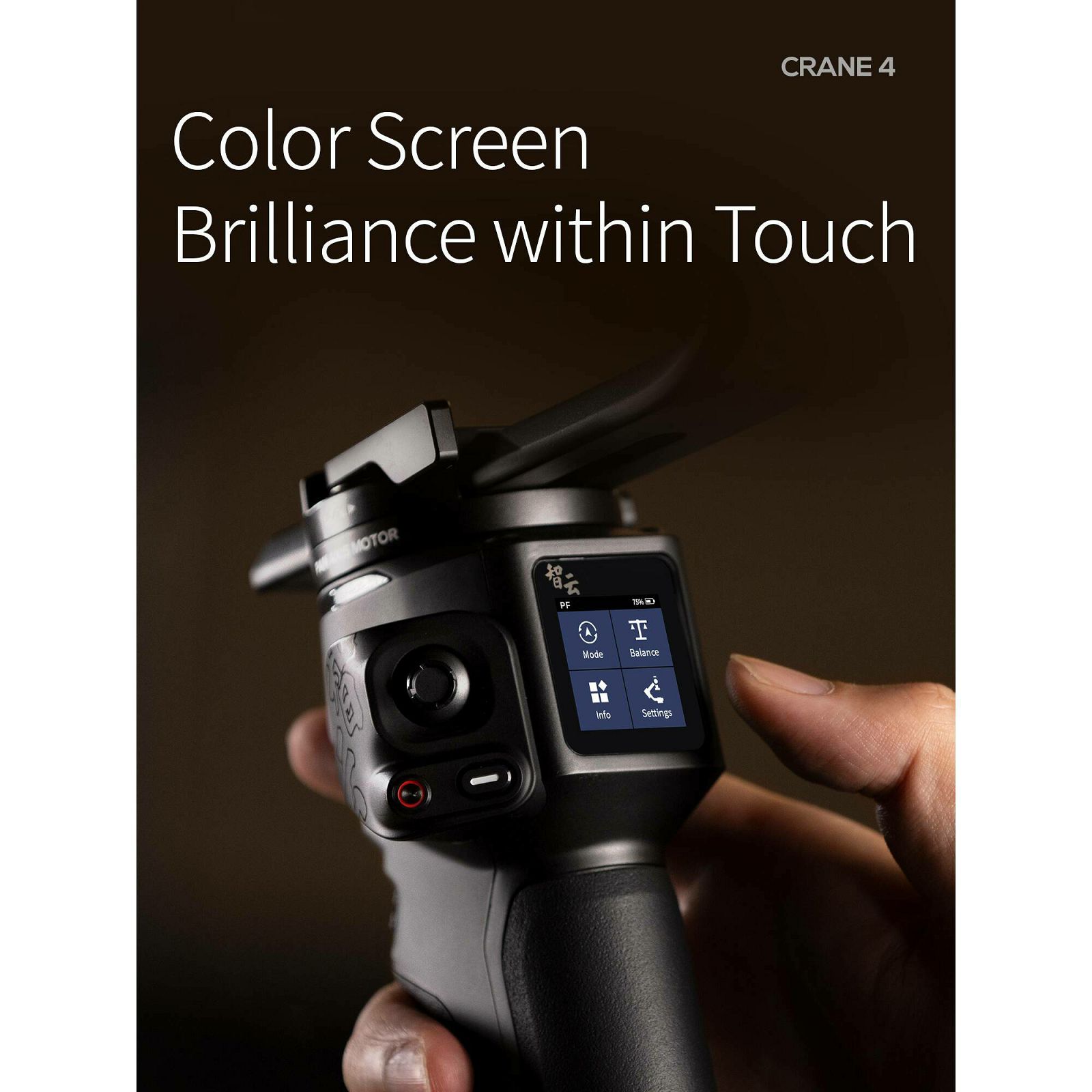

1.22" Color Touchscreen, Onboard Controls

Toggle between gimbal modes like Pan Follow Mode, Lock Mode, POV Mode, Follow Mode, Go Mode, Vortex Mode, and Portrait Mode.
Other shooting features include Panorama, Time-Lapse, and Motionlapse.

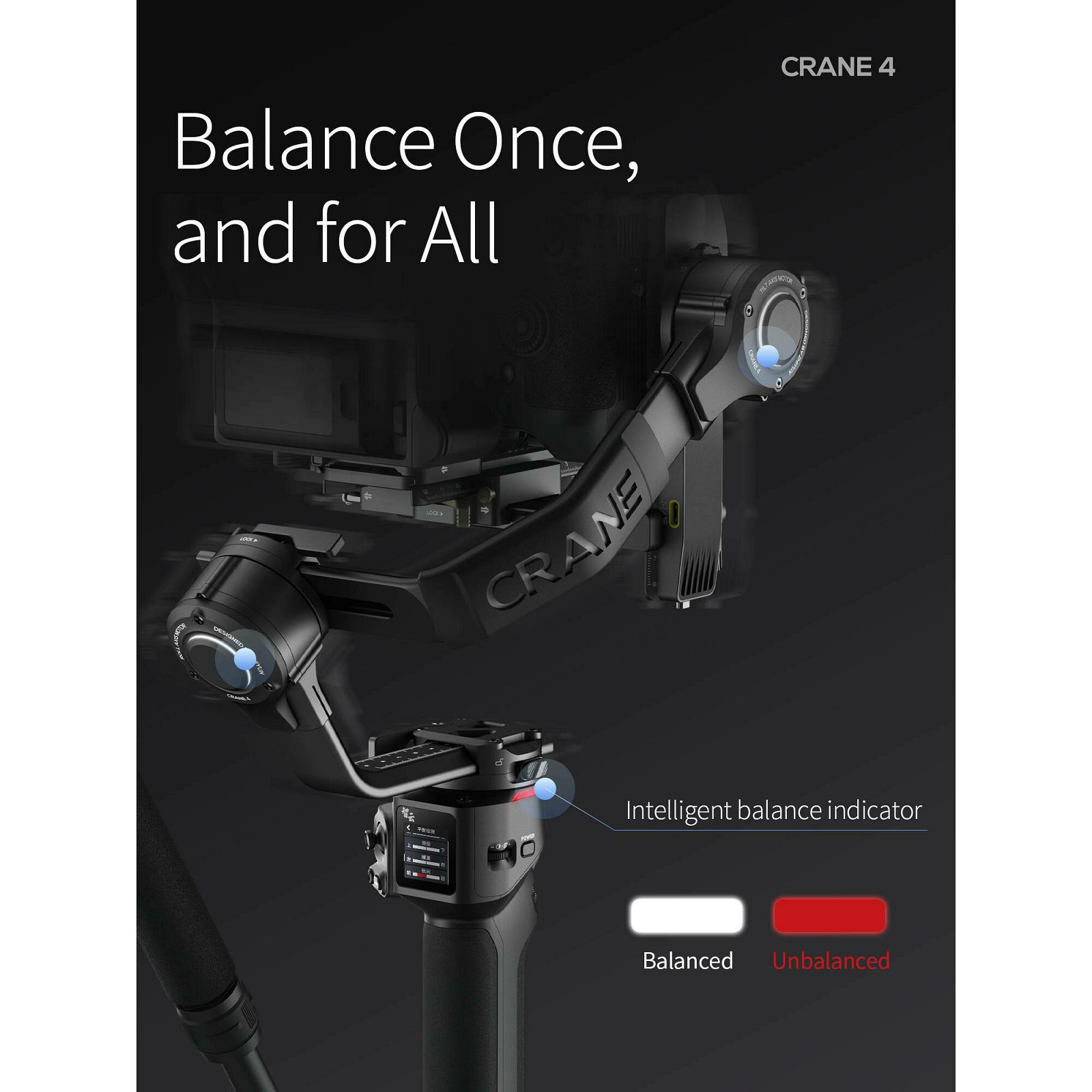

Check and view the balance status of each axis in real time.
Auto-calibrate after your rig is fully balanced.
Set the motor torque, smoothness, follow speed, and joystick speed of the gimbal.

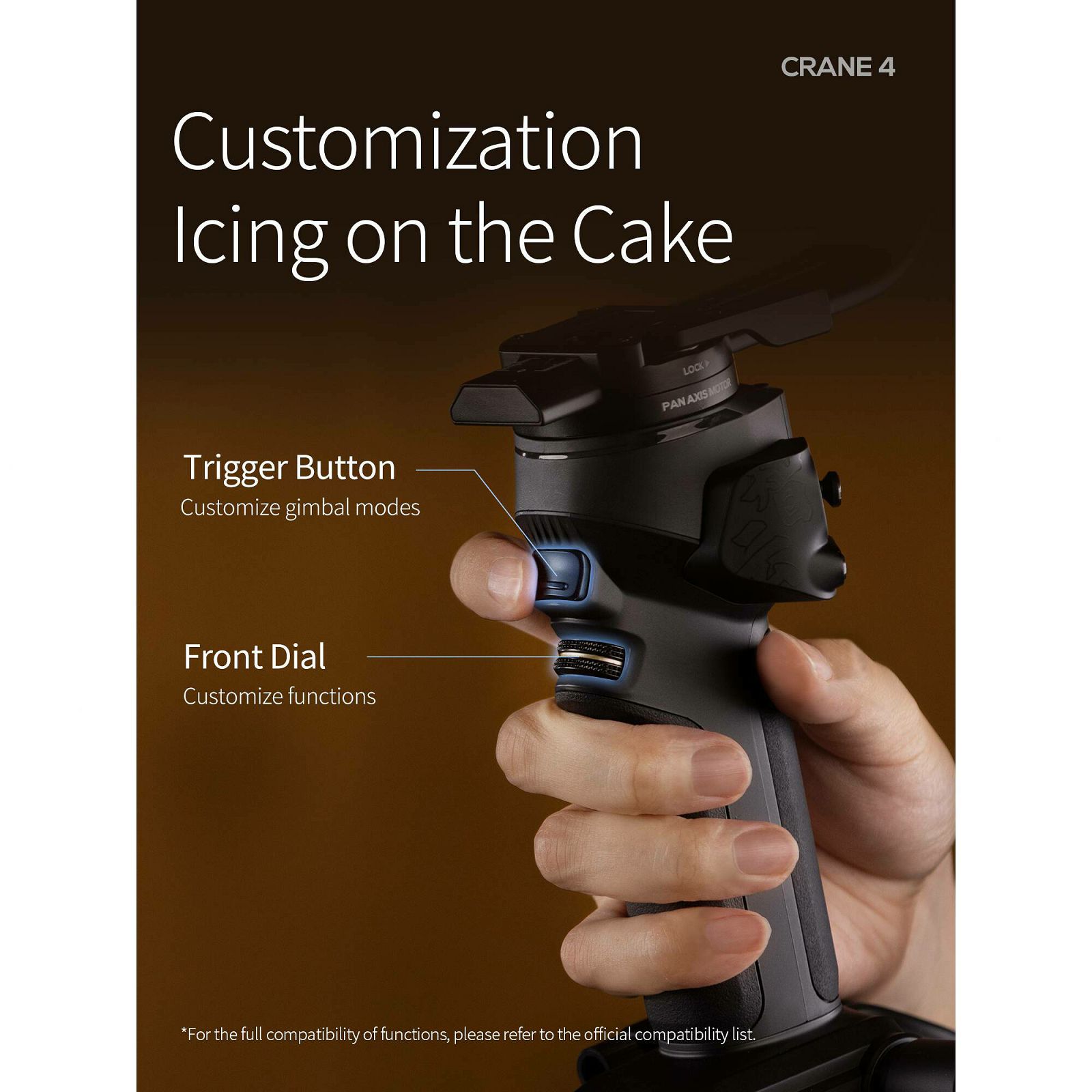

Customize the function of the trigger button and front dial to toggle settings or modes of your choice.

ZY Play App

Control your gimbal remotely from your iOS or Android device using the ZY Play App. Features of the app include virtual joystick control, photo and video control, motion sensor control, time-lapse, panorama, and firmware upgrade. The gimbal's embedded Bluetooth technology facilitates the app connection.

Follow Focus and Video Transmitter Integration

Attach additional pro-level tools to the CRANE 4 to communicate to others on set. Two USB-C ports at the front of the camera mounting area can connect follow focus motors for remote camera control. Another USB-C port at the back of the camera accepts the included camera control cables or connects to the separately available TransMount Image Transmission system. The transmitter unit can mount onto the bottom of your gimbal's baseplate to communicate with its corresponding viewing monitor.

All-Day Production

Four built-in 18650 batteries with a 2600mAh total capacity offer a runtime of 12 hours to shoot all-day events. The USB-C charging port supports
PD fast charging to get you back up and running in 1.5 hours. You can charge the gimbal while it's in use to keep capturing the action.

SPECIFIKACIJE:

Grip Design
Single Handgrip
Number of Axes
3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
Wireless Frequency
2.4 GHz
Wireless Protocol
Bluetooth 5.0
Mobile App Compatible
Yes: Android & iOS
App Name: ZY Play
Functionality: Adjust Settings, Firmware Update, Remote Control, Setup
Mounting
4 x 1/4"-20 Female
Weight
3.68 lb / 1.67 kg (without Tripod)
Gimbal
Number of Axes
3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
Rotation Range
Mechanical Range
Pitch (Tilt): 214° (-72 to 142°)
Roll: 322° (-251 to 71°)
Yaw (Pan): 360°
Controllable Range
Pitch (Tilt): 207° (-71 to 136°)
Roll: 70° (-35 to 35°)
Yaw (Pan): 360° Unlimited
Compatibility
Camera Control
On Compatible Models (See Full Compatibility List)
Camera Mounting Screw
3x 1/4"-20 Male
Connectivity
Inputs/Outputs
1x USB-C (Power / Firmware Updates)
1x USB-C (Control / Video)
2x USB-C (Control)
Wireless Frequency
2.4 GHz
Wireless Protocol
Bluetooth 5.0
Mobile App Compatible
Yes: Android & iOS
App Name: ZY Play
Functionality: Adjust Settings, Firmware Update, Remote Control, Setup
Battery
Battery Type
4x 18650
Battery Capacity
2600 mAh
Battery Runtime
12 Hours
Battery Charging Time
1.5 Hours
Power
Operating Voltage
11.0 to 16.8 VDC
Operating Current
200 to 14500 mA
Environmental
Operating Temperature
14 to 77°F / -10 to 25°C
General
Display Type
Fixed Touchscreen LCD
Mounting
4 x 1/4"-20 Female
Dimensions
13.4 x 11 x 2.8" / 340 x 280 x 70 mm
Weight
3.68 lb / 1.67 kg (without Tripod)

UKLJUČUJE:

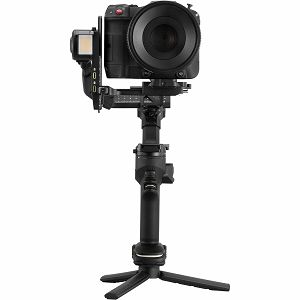

Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer

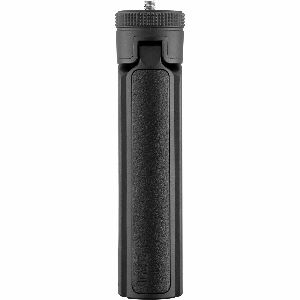

Mini Tripod

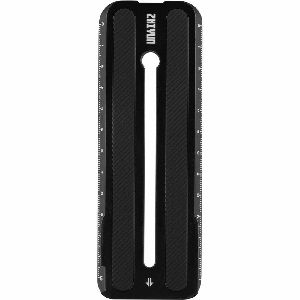

Lower Quick Release Plate
Upper Quick Release Plate

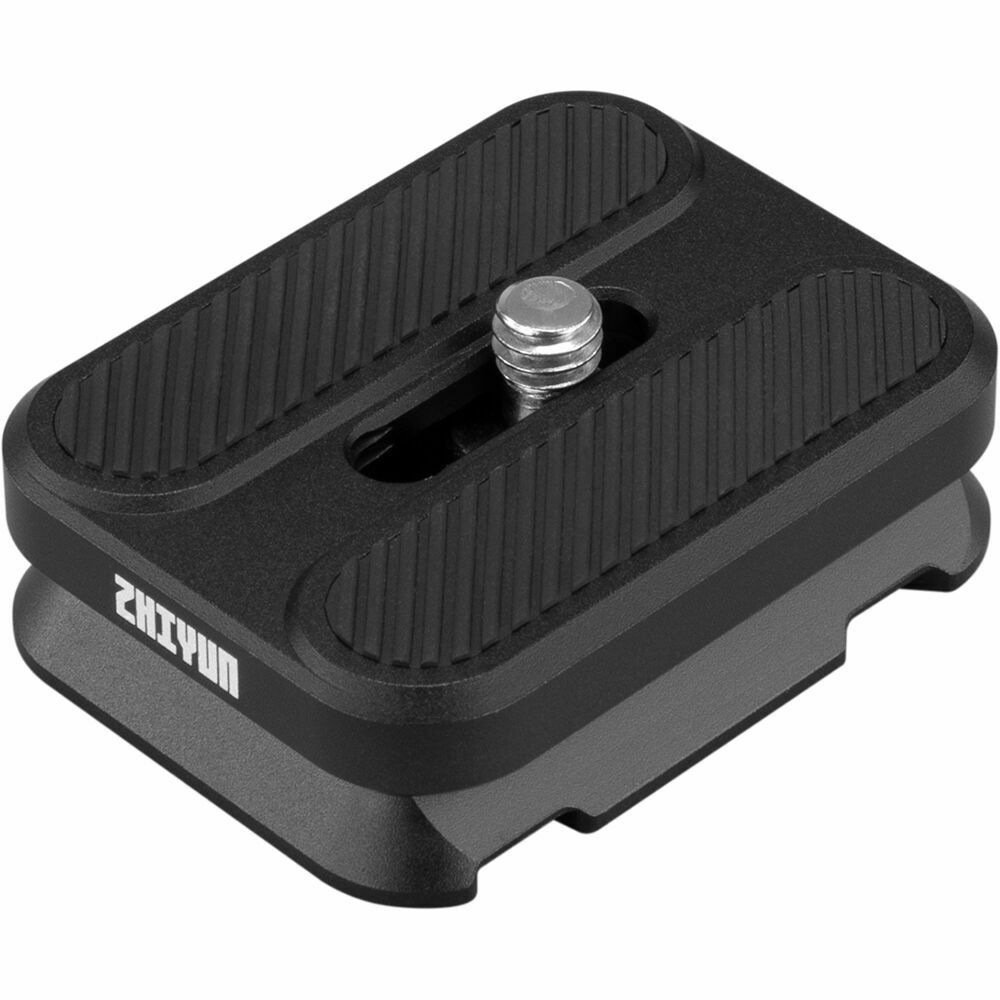

Camera Quick Release Plate

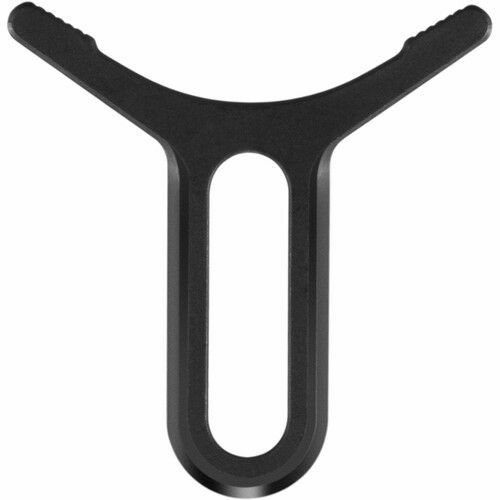

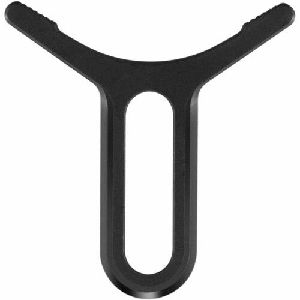

Lens Support

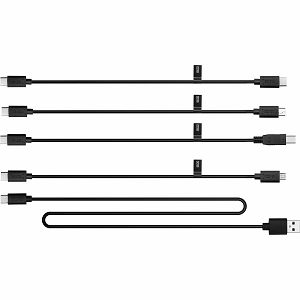

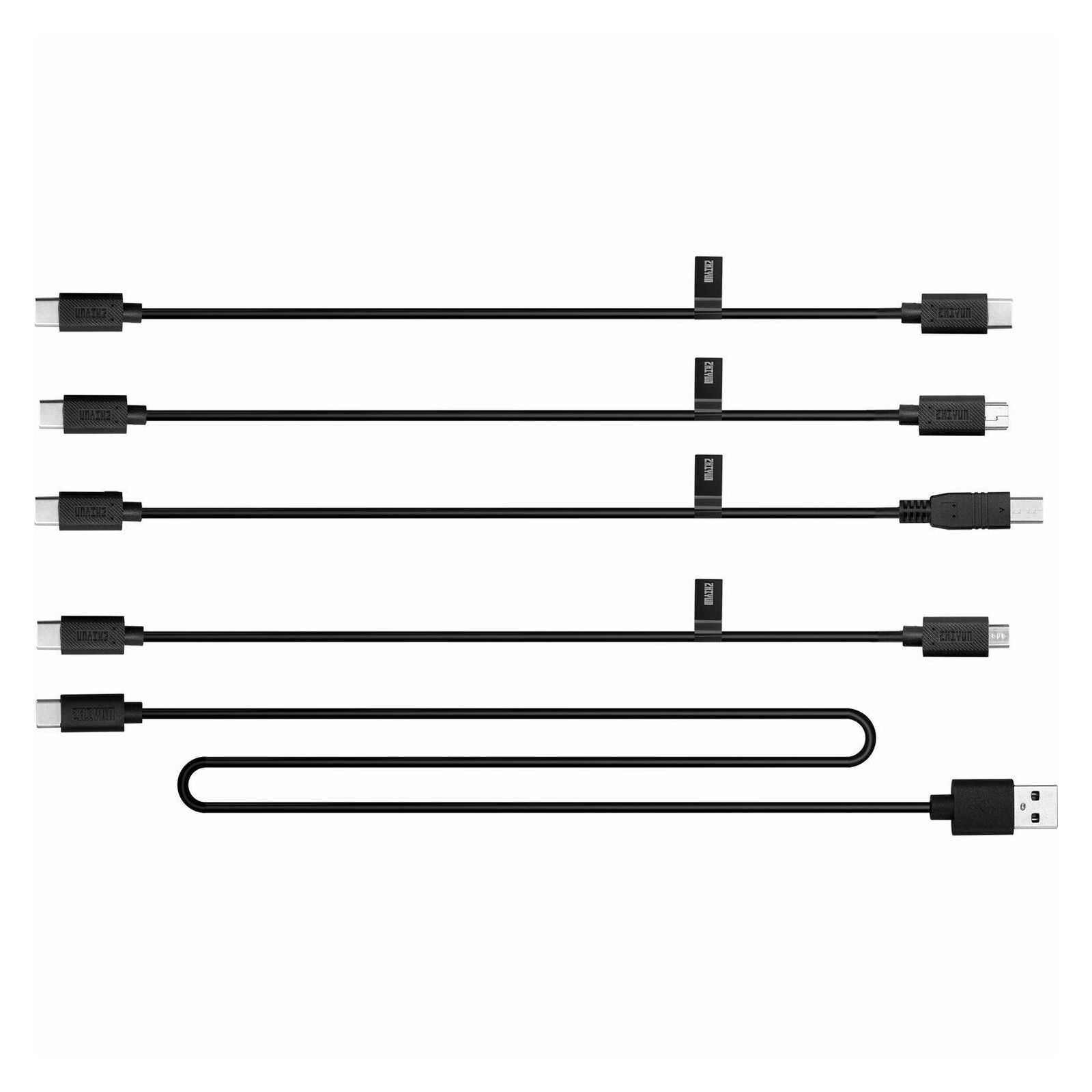

USB-C to Sony Multi Control Cable
USB-C to Mini-USB Canon Control Cable
USB-C to Micro-USB Canon Control Cable
USB-C to USB-C Panasonic Control Cable
USB-C Charging Cable
Fill Light Diffuser
3 x 1/4"-20 Screw
3/8"-16 Screw

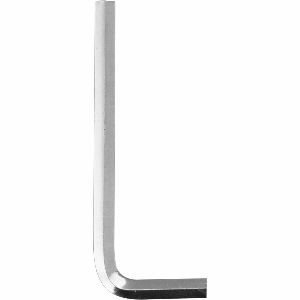

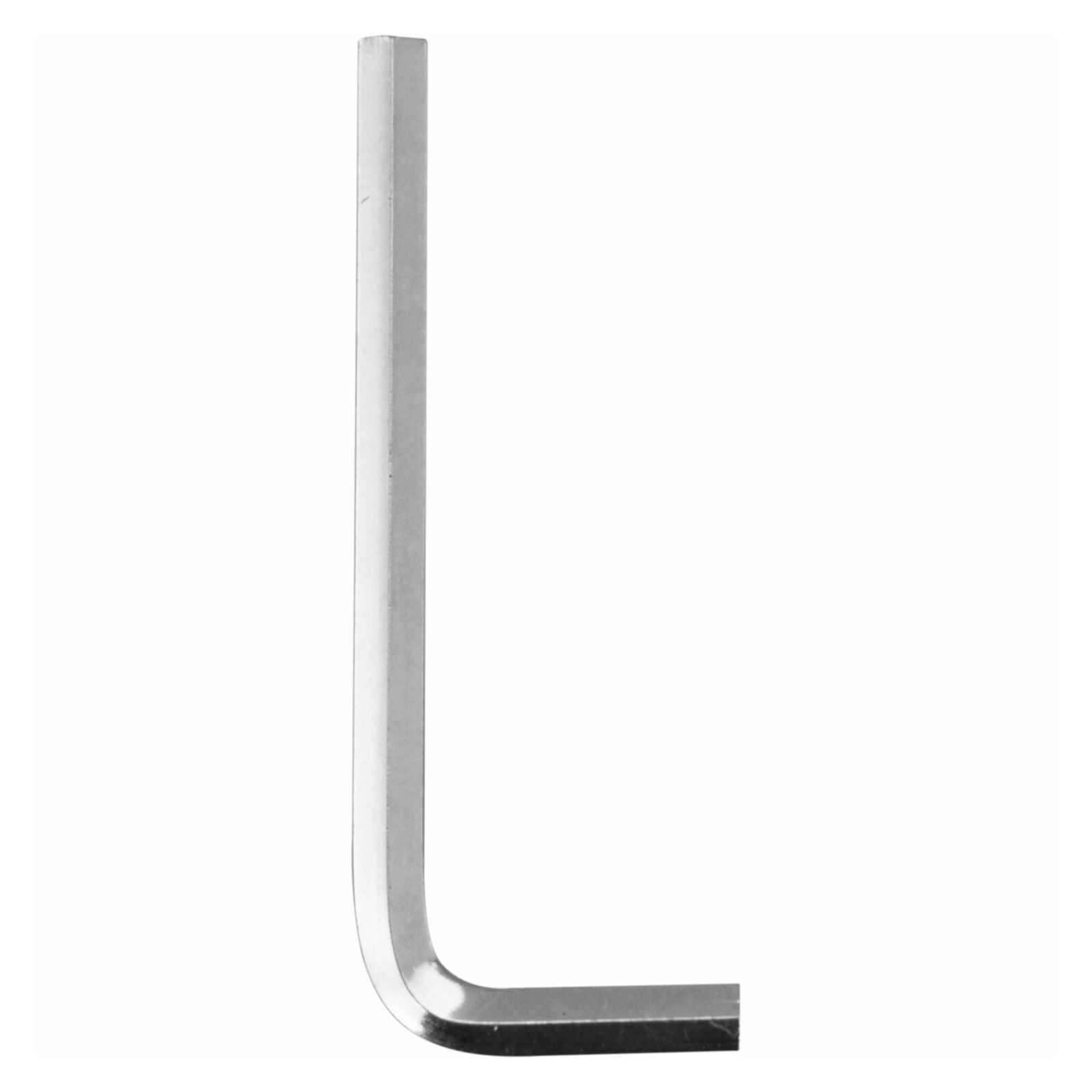

Allen Key

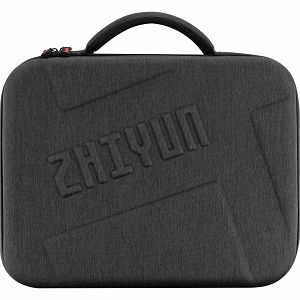

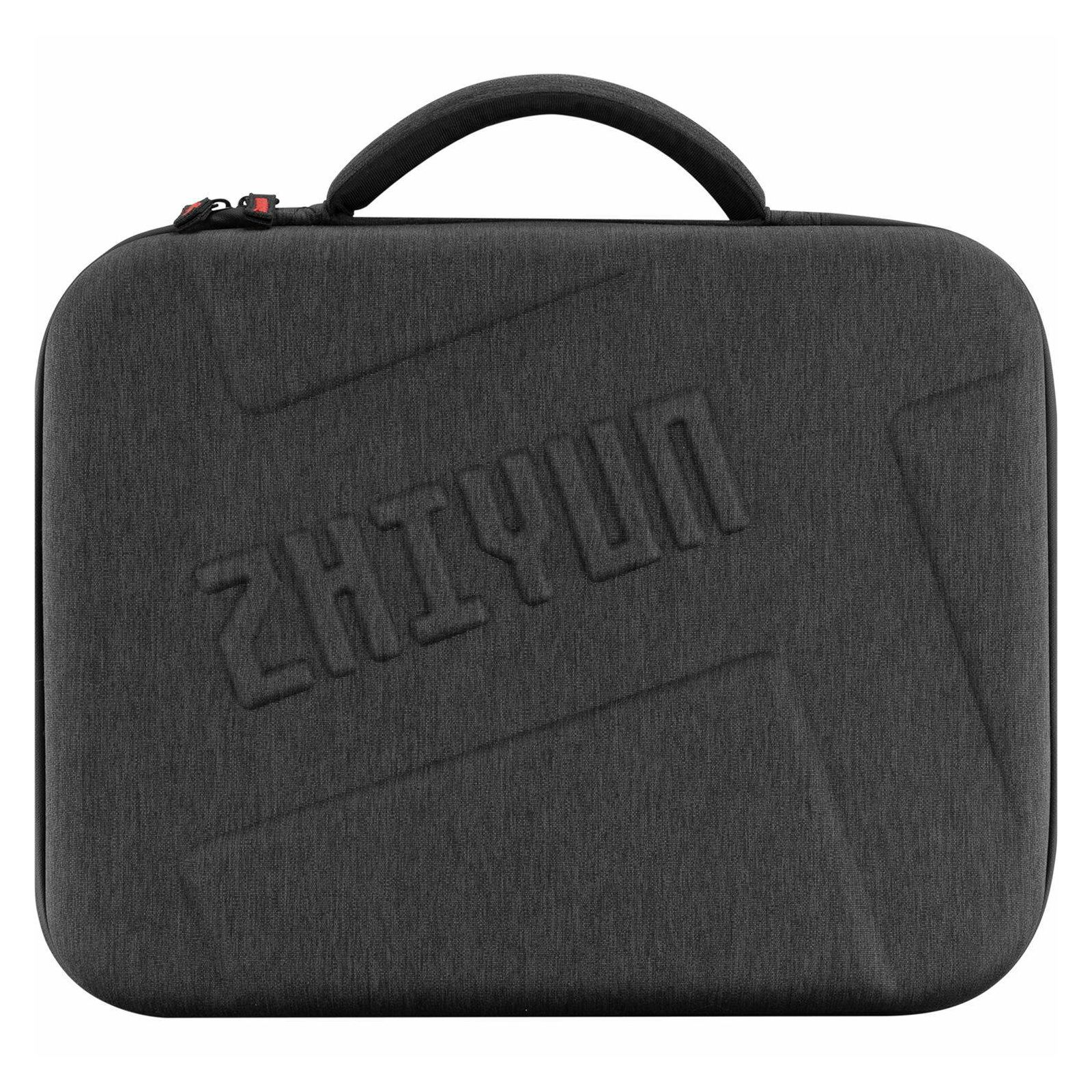

Carrying Case
