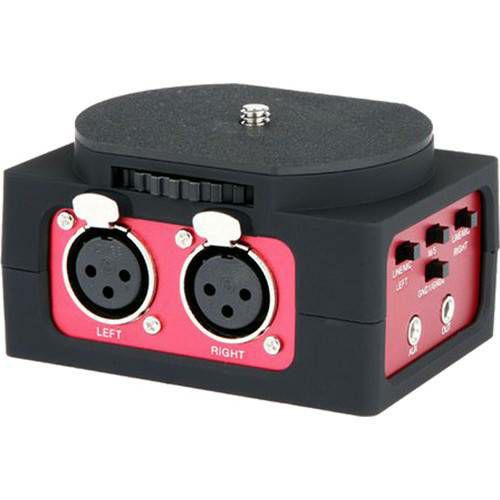

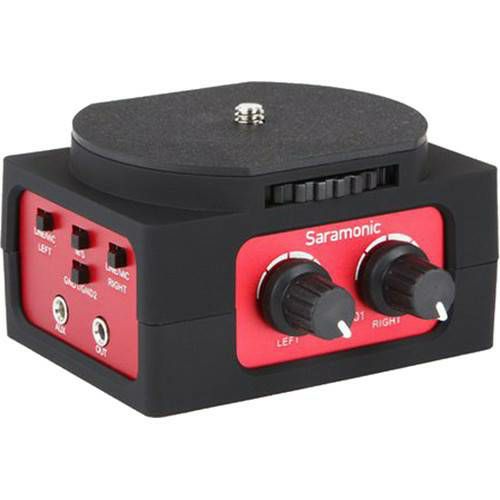

Saramonic SR-PAX2 Audio Adapter with dual XLR and 3.5mm input for DSLR, CSC and Black Magic Cameras

ZNAČAJKE:

The SR-PAX2 from Saramonic is an active 2-channel audio adapter designed to provide a compact solution for recording two signals to any DSLR or camcorder that has a standard mounting base, and a built-in audio jack. It features left and right gain controls and meters, supplies phantom power, and is powered by a 9V battery (available separately).

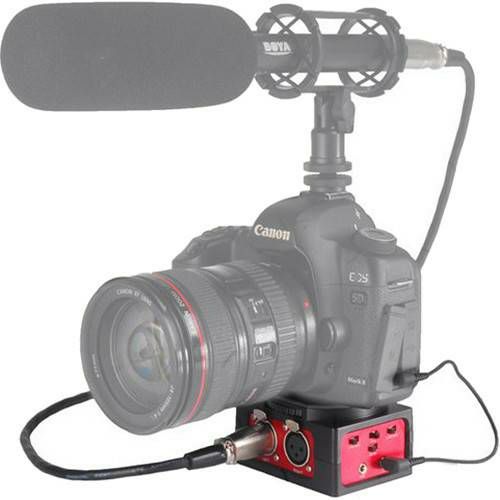

It attaches to the base of a camera, and can be mounted on a tripod or case. Connect inputs via two mono 3.5mm (1/8") jacks, the single stereo 3.5mm (1/8") jack, or two XLR jacks. Route the stereo 3.5mm (1/8") output to your DSLR or camcorder. The output can be set to mono or stereo via the M/S switch. A dedicated stereo 3.5mm (1.8") headphone output allows quick monitoring of the mic signals.

Two 1/8" (3.5 mm) stereo line/mic inputs
Two XLR microphone inputs
One 1/8" (3.5mm) stereo line output to phone
One 1/8" (3.5mm) headphone monitor output
Volume control knob
Independent input control switch
Independent L/R level meters
Independent phantom power control for inputs
Includes 3.5mm audio cable

SPECIFIKACIJE:

Type Passive audio adapter, no battery required
Input 2 x XLR female, mic/line input, balanced
1 x One 1/8" / 3.5 mm mini jack, auxiliary input, unbalanced
Output 1 x 1/8" / 3.5 mm mini jack, stereo output, unbalanced
Input Level Mic: -35 dBu
Line: -10 to +4 dBu
Output Level Microphone level
Construction Plastic chassis
Frequency Response 10 Hz to 100 kHz (±1.5 dB)
Dimensions (L x W x H) 3.4 x 3.1 x 2.0" / 87.0 x 80.0 x 52.0 mm
Weight 6.7 oz / 191.0 g
Packaging Info
Package Weight 0.7 lb
Box Dimensions (LxWxH) 4.9 x 4.4 x 4.1"

UKLJUČUJE:

Saramonic SR-PAX2 Audio Adapter with dual XLR and 3.5mm input for DSLR, CSC and Black Magic Cameras
