Quenox Arca-Swiss Quick Release adapter (79x48mm)

Many of our readers frequently ask us questions about tripod heads and accessories to support heavy camera and lens combinations. Those that are especially new to super telephoto lenses quickly discover that tripod feet supplied by all manufacturers on modern lenses are simply not suitable to be mounted on regular tripod heads. Unfortunately, whether it is Nikon, Canon, Sony or a third party lens manufacturer like Sigma, they all supply non-standard tripod feet with their lenses. For new lens owners it can be a rather frustrating experience trying to figure out which tripod head would fit their large and heavy lenses, because nobody wants a lens worth thousands of dollars to end up crashing on the ground. And since most tripod plates are only equipped with a single mounting point, it can be extremely unstable and even potentially dangerous to mount anything heavier than a few pounds on them. The solution, which has become somewhat of a standard nowadays, was developed by a company called Arca-Swiss back in 1990s and since then has been popularized as “Arca-Swiss Quick Release System”. The idea behind this quick release system is quite simple, but very effective. Almost all professional photographers that use super telephoto lenses have adopted the Arca-Swiss quick release system and more photographers are converting even their regular cameras to this format for ease of use, stability and compatibility reasons.

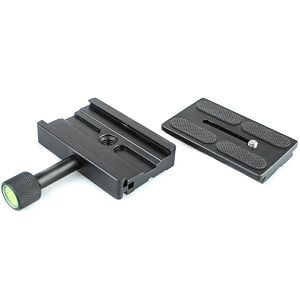

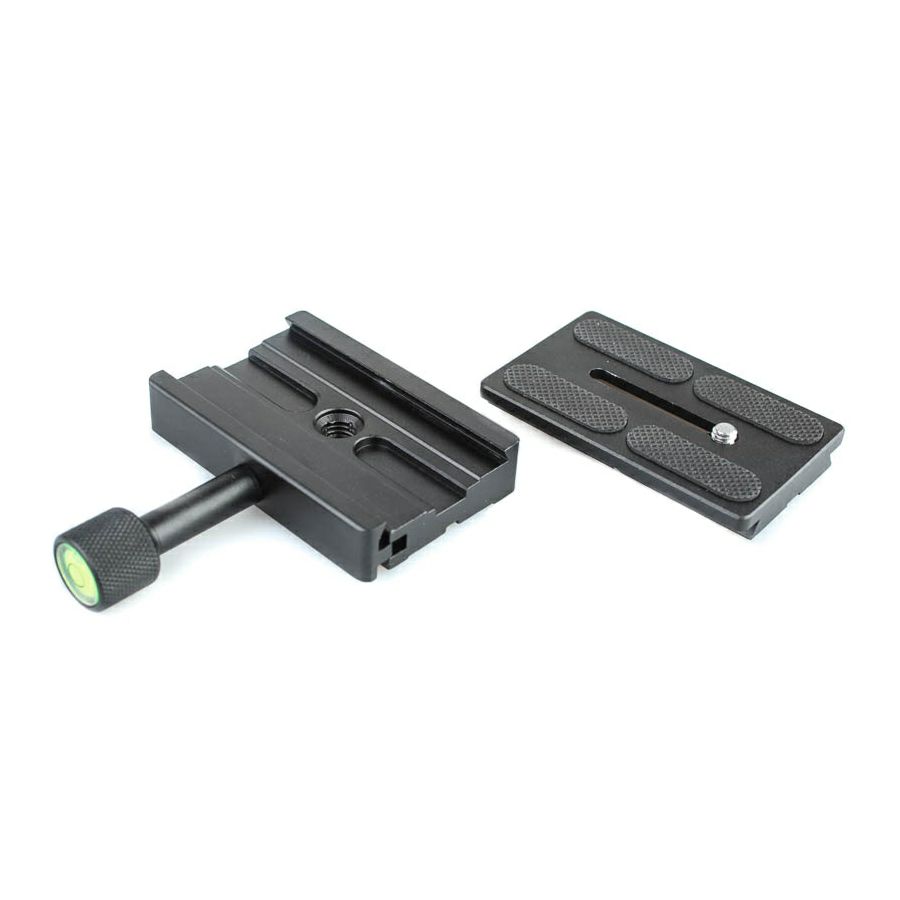

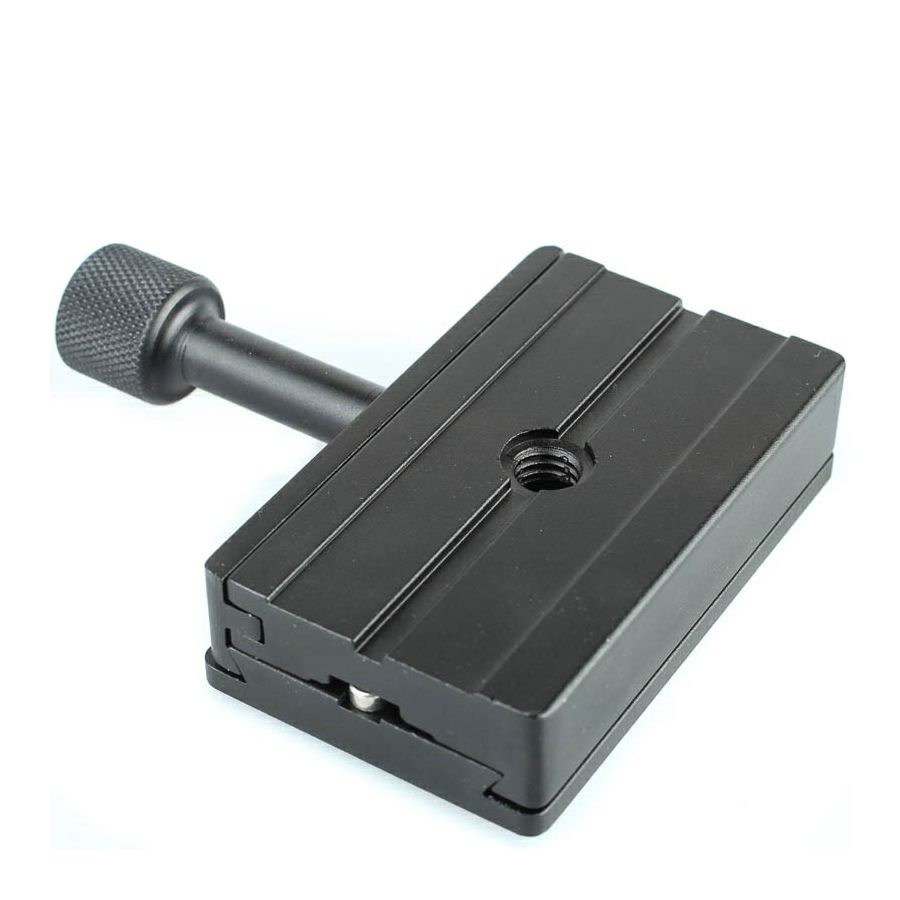

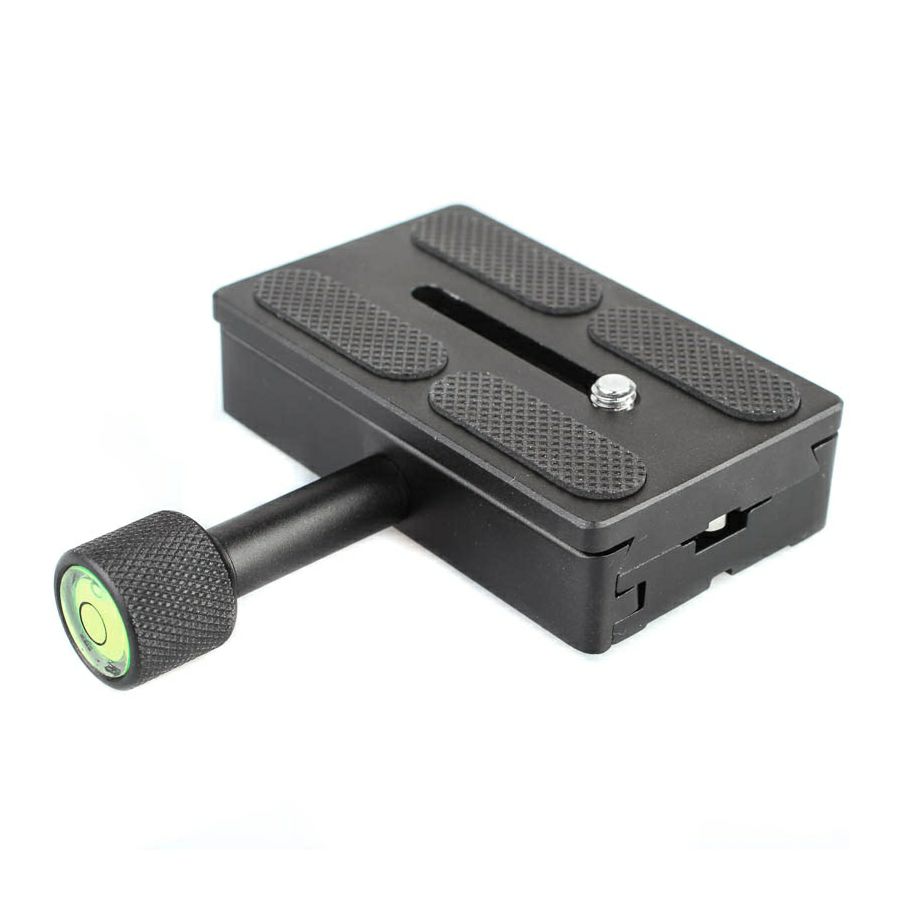

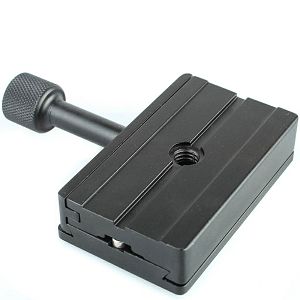

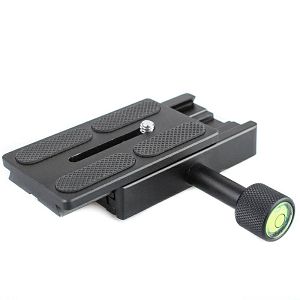

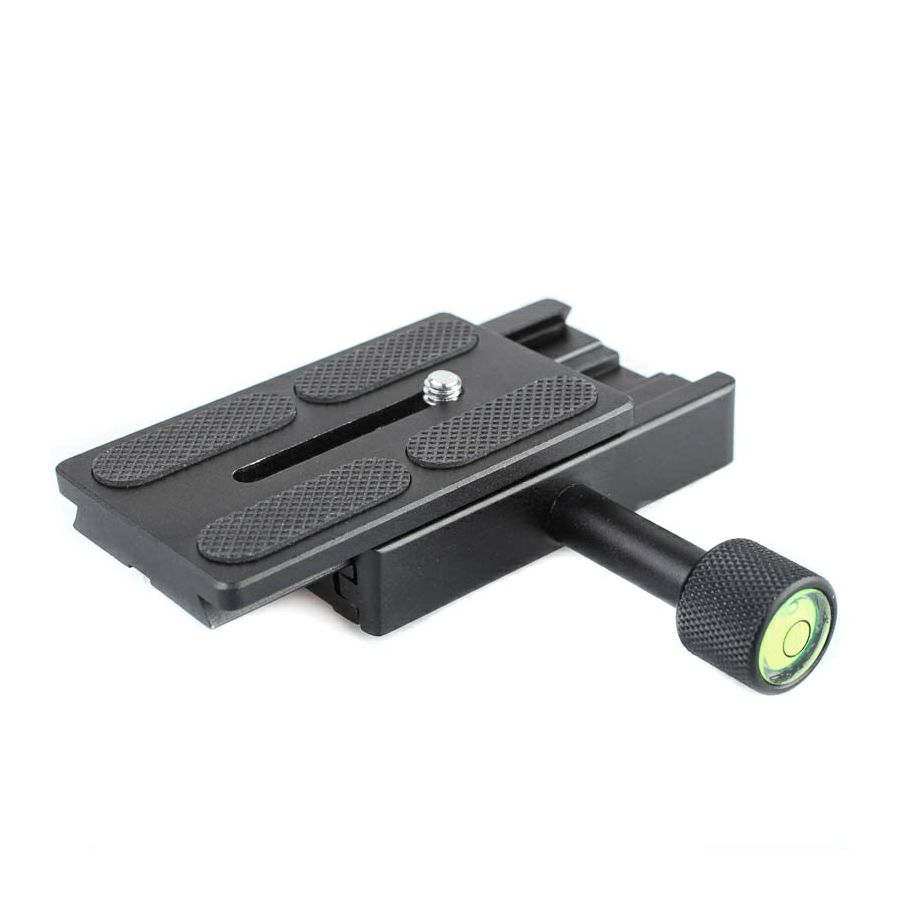

The Arca-Swiss quick release system is based on a two piece mechanism. The first piece, generally referred to as a “plate”, is attached to a camera or a lens (or any other device). It comes in a standard, “arca-style” 35mm wide form with a 45° dovetail and can vary in length (a sample plate is illustrated above to the right of the tripod head). The second piece is the mounting base, generally referred to as a “clamp”, where the plate gets attached and secured. The clamp can be fully opened, allowing the plate to be dropped in and secured, or can be partially opened to allow the plate to be slid into the position. The biggest advantage of the Arca-Swiss quick release system is this ability to slide the plate without having to worry about mounting or dismounting anything. The 45° dovetail on the plate, as pictured below, allows equipment to be moved across the clamp and secured in a specific location using a side knob or a locking release.
