Inspire 1 PRO Essentials Suite PROMO 2016 Everything you need kit

Get the Inspire 1 ready-to-fly all-in-one flying platform with all these great accessories:
Second Inspire 1 remote controller for dual operators to easily control flight and camera functions.
Spare Inspire 1 TB47 Intelligent Flight Battery for you to capture more shots.
Inspire 1 Battery Heater to ensure safe and reliable flights in low temperatures.
Battery Charging Hub to safely and rapidly charge up to four batteries at once.
Remote Controller Monitor Hood (for Tablets) to shield your tablets from direct sunlight for a perfect view of your display.
Two pairs of 1345T Quick-Release Propellers, including one pair of clockwise replacement propellers and one pair of counter-clockwise replacement propellers.

PRODUCT HIGHLIGHTS

Ready-to-fly aerial system
Included professional 4K camera and 3-axis stabilization gimbal (Zenmuse X5)
Live, wireless HD video transmission via DJI Lightbridge
Dedicated remote with flight and camera controls
Powerful app to adjust camera settings, edit videos, and more
Vision Positioning system for GPS-free or indoor flight
Perfect for high-level shoots and professional sets

4K MFT Camera with 3-Axis Gimbal
15mm f/1.7 Lens Included
Up to 1.2 Mile Radio Range
GPS-Based Stabilization System
Optical Flow Sensor for Indoor Flying
DJI Lightbridge System Integrated
Live 720p HD Monitoring with Lightbridge
Retractable Carbon Fiber Arms
Unobstructed 360° Shooting
Dual Transmitter Operation Supported



A Micro Four Thirds CMOS sensor with 4K image capture is introduced to DJI's quadcopter line with the Inspire 1 PRO featuring the X5 camera and gimbal system along with a 15mm f/1.7 lens. Forgoing the fixed landing gear design found on many earlier quadcopters, the Inspire 1 features a retractable arm system whereby the underside of each prop motor has a foot to act as a landing pod when the arms are lowered. In-flight, the arms lift up to provide the camera an unobstructed 360-degree view. A 3-axis gimbal keeps shots steady and the camera pointed the same direction as the quadcopter banks and turns. The camera records internally to microSDHC/SDXC memory cards and can also beam a live 720p feed to a mobile device running the DJI GO app or a monitor or FPV glasses with an HDMI input. One transmitter (radio controller) is included and a second can be added so that one operator can pilot and another can pan and tilt the camera.

As with many other multi-rotor systems, the Inspire 1 relies on a GPS-based stabilization system that - thanks to spatial awareness - is able to hold a position even when experiencing wind interference, can compensate for overzealous pilot inputs to help avoid stalling, automatically brings the aircraft home in the event of signal loss or at the press of a button, and makes possible a number of semi-automated flight modes that can be enabled through the app. There is also an "indoor" mode which relies on Vision Position technology - combining optical flow with ultrasonics - to provide stability indoors or in other contexts where GPS is unavailable (Note: certain features will be unavailable in indoor mode).



What Ready-to-Fly Means
This Inspire 1 bundle comes ready-to-fly (RTF). This means a pre-bound transmitter (radio controller) is included and that no major assembly is required - in particular, no assembly that requires soldering. It is important - as with any multi-rotor - to follow the user guide to ensure proper calibration before embarking on your first flight
Integrated 4K Camera with MFT Mount and 15mm Lens
Micro Four Thirds Sensor with MFT Mount
Sporting a Micro Four Thirds CMOS sensor, the Inspire 1 PRO introduces mirrorless camera performance to the Inspire series. The featuring a standard MFT mount, the X5 camera includes the Panasonic Lumix 15mm f/1.7 lens, and also works with the separately available Olympus M. ED 12mm f/2.0 lens
4K and HD Video Capture
The X5 is able to capture video at up to DCI 4K 4096 x 2160 at 23.98p or UHD 4K at 29.97p
16MP Stills Capability
Not just for video, the X5 can snap still from the air at up to 16MP resolution. In addition to single-shot, the camera support busts of 3, 5, or 7 frames and can take time-lapse at stepped intervals of between three and 60 seconds
3-Axis Gimbal
The X5 camera is mounted via an integrated 3-axis gimbal which uses brushless servo motors to keep the shot stable and the horizon level. The camera pans a full 360-degrees so that no matter which way the quadcopter turns, the camera can remain locked on the subject. Manual panning and tilting can be affected using controls on the transmitter
Live HD View
A real-time feed from the X5 camera can be displayed in 720p HD on a mobile device or HDMI monitor, making this it a great choice for FPV (first-person view) flying as well as enabling videographers and photographers to monitor framing from the ground. This is made possible by the inclusion of the DJI Lightbridge system within the flight electronics, which features a range of up to 1.2 miles



For connecting an FPV monitor or glasses there is an HDMI port on the transmitter. Plus there is a USB port to keep you mobile device's battery topped up. And included mount allows you to attach a smartphone or tablet directly to the transmitter
Modular Gimbal and Camera
The X5 gimbal and camera assembly can be removed from the Inspire 1 for safe transport and future upgrades
Airframe Design
Retractable Carbon Fiber Arms
The prop arms rest in a lowered position when the Inspire is on the ground, acting as landing gear. Once in the air, they can be retracted to give the camera unobstructed views across 360-degrees. Carbon fiber is used in the construction because of its high strength to weight ratio
Aerodynamic Design
Not only does it give the Inspire 1 a sleek look, the aerodynamic airframe helps reduce resistance for better performance and increased battery life
Flight Control System
Fly Indoors and Without GPS
DJI's Optical Flow technology uses a specially designed camera as well as sonic waves to provide the same stability function indoors as GPS does outdoors. This technology allows the Inspire to hold its location, stop when the controls are released, and quickly respond to pilot commands even when GPS is unavailable
App-Based Control Software
Everything from manual camera controls to flight telemetry - even auto takeoff and landing - can be accessed via the Inspire 1 Mobile app. It is also possible to create autopilot courses using waypoints, just as you would on the DJI iPad Ground Station System

Note: The tablet must be connected to the transmitter via USB, and to use the waypoint map an Internet connection is required
Manual Mode
Change all of your camera settings, including ISO, White Balance, Exposure, and more on the fly ensuring every shot looks exactly the way you want
Live Map and Radar
See precisely where your Inspire 1 is at all times on the live map. The map can be enlarged when needed, and shows your most recent flight path
Dynamic Home Point
When GPS signal is available on the transmitter (remote control), the Home Point automatically refreshes. This becomes useful while traveling in a car or on a boat allowing the return-to-home point to move where the operator goes. Multiple configurations are available via the Dynamic Home Point function
Auto-Takeoff and Landing
Takeoff and landing are available with just a tap. Tap once to takeoff and your Inspire 1 will hover and transform, ready to start filming. Then tap again to make it transform into landing mode and auto land
Transmitter Customization
Put yourself in charge by tailoring the Inspire 1's controls to your personal needs. This way, your Inspire 1 moves and responds in ways you're most comfortable with
Transmitter (Radio Controller)
Take control of your Inspire 1 in the air with a dedicated transmitter (radio controller) designed specifically for it. Operating on 2.4 GHz, it features dedicated buttons for photo and video capture, a gimbal control dial, and more. It includes an integrated 6000mAh rechargeable battery
Use Two Transmitters
For an even greater level of precision, use a second transmitter and fly with a friend. With two people controlling the same quadcopter, one person pilots the flight path while the other aims the gimbal and camera. Each user can have their own screen to see exactly what is being shot in real-time
Smart Battery System
Smart Power Management
The flight battery constantly supplies the flight computer with remaining voltage. Using special algorithms the computer supplies the pilot with estimates of remaining flying distance and time to return home
Automated Charging
The battery tracks the voltage of each cell, the total number of charges and discharges, and the overall health and battery status

UKLJUČUJE:

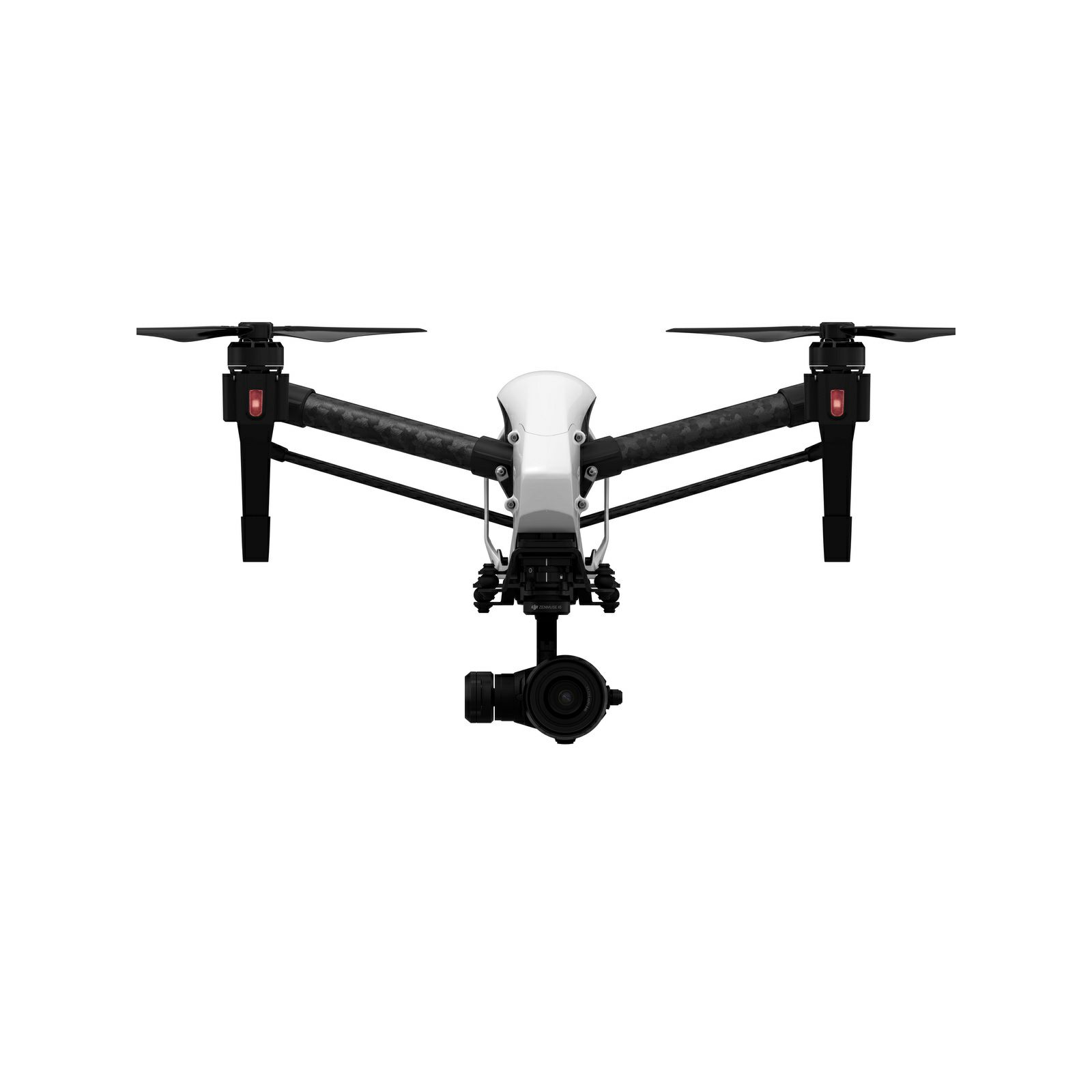

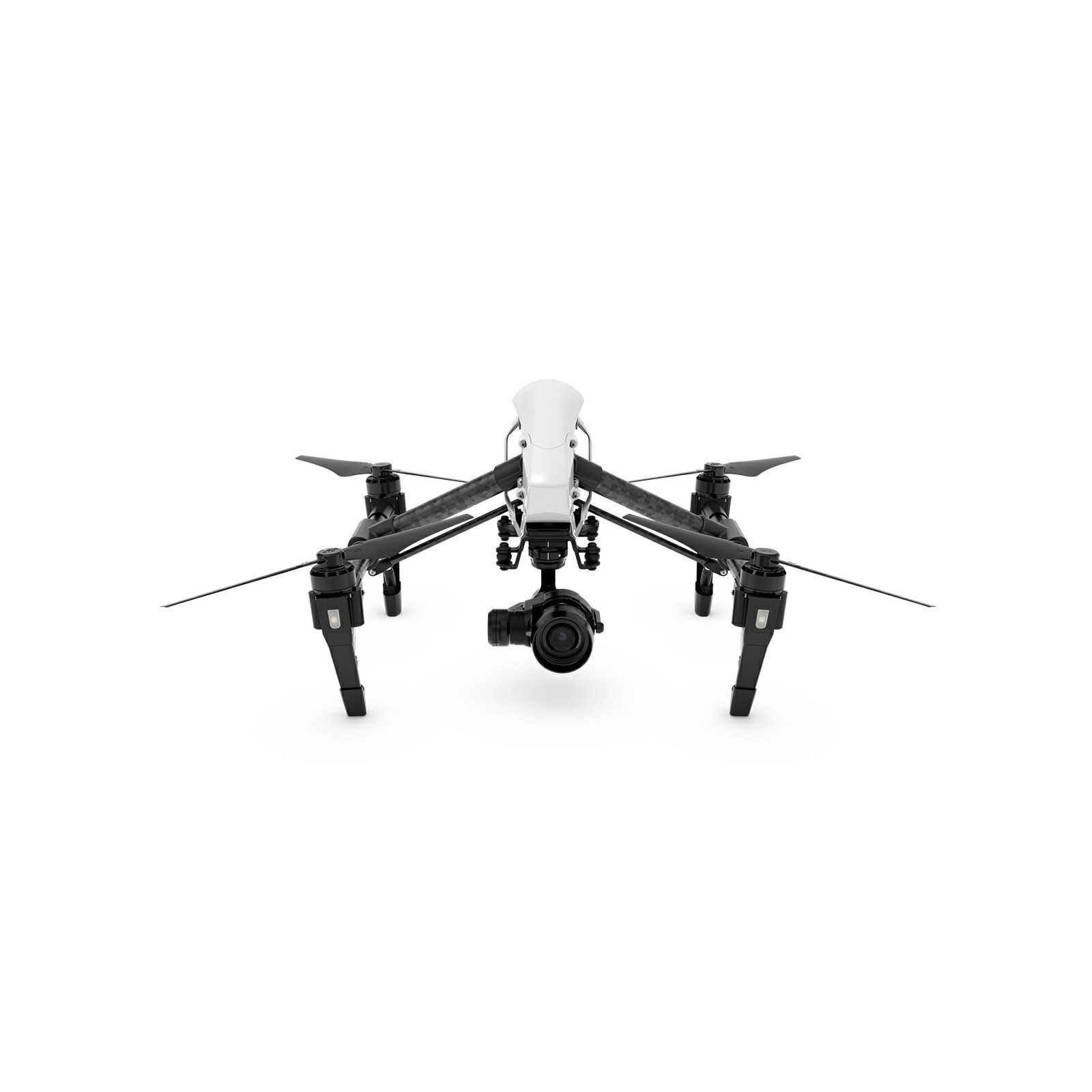

DJI Inspire 1 PRO Quadcopter with 4K Camera and 3-Axis Gimbal
Transmitter (Radio Controller)

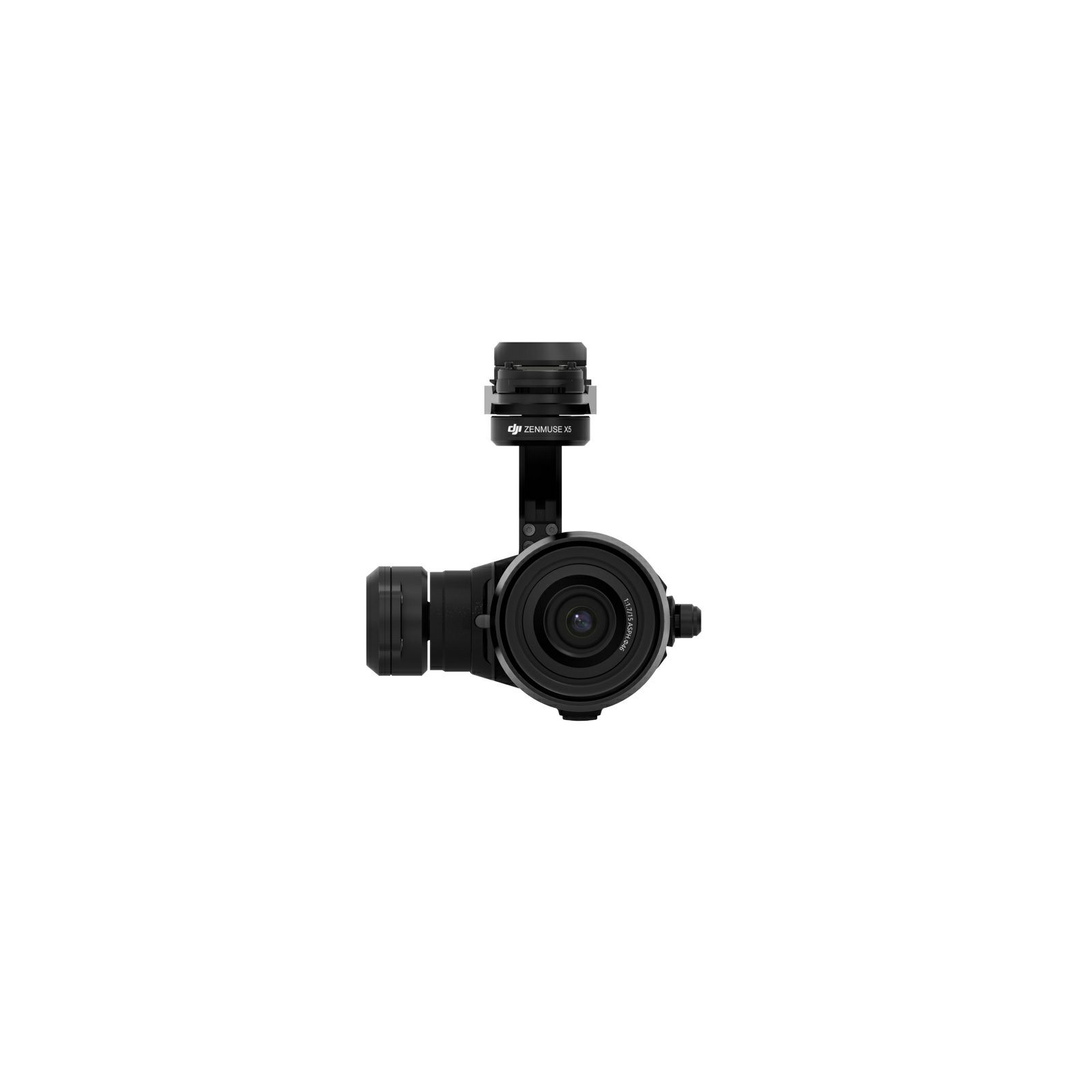

X5 Camera and 3-Axis Gimbal
MFT 15mm f1/1.7 PRIME LENS
Flight Battery
Flight Battery Charger
Power Cord
4 x Spare Prop CW/CCW Pairs
+ extra Essentials Suite: Inspire 1 Remote Controller x1, Battery Heater x1, Remote Controller Monitor Hood(IPAD MINI) x1, TB47 Battery x1, Battery Charging Hub x1, 1345T Quick Release Props x2

SPECIFIKACIJE:

Performance
Hovering Accuracy (GPS Mode) Vertical: 1.6' / 0.5 m
Horizontal: 8.2' / 2.5 m
Maximum Angular Velocity Pitch: 300°/s
Yaw: 150°/s
Maximum Tilt Angle 35°/s
Maximum Ascent/Descent Speed Ascent: 16.4 fps / 5 m/s
Descent: 13.1 fps / 4 m/s
Maximum Speed 72.2 fps / 22 m/s (Attitude mode; no wind)
Maximum Flight Altitude 14,764' / 4,500 m
Maximum Wind Speed Resistance 32.8 fps / 10 m/s
Maximum Flight Time Up to 18 minutes
Camera
Model Name: X5
Gimbal
Model Zenmuse X5
Number of Axes 3-axis
Flight Controller
Indoor Hovering Enabled by default
Vision Positioning Frequency: 50 Hz
Velocity Range: Below 26.2 fps / 8 m/s (6.6' / 2 m above the ground)
Altitude Range: 2 to 196.8" / 5 to 500 cm

Operating Environment: Rich pattern surface with adequate lighting (> 15 lux)
Operating Range: 0 to 8.2' / 0 to 2.5 m
Motor
Model DJI 3510
Propeller
Model DJI 1345
Transmitter
Operating Frequency Transmitter to Transmitter: 5.728 to 5.850 GHz
Transmitter to Aircraft: 2.400 to 2.483 GHz
Range Line-of-Sight: Up to 6561.7' / 2000 m
Receive Sensitivity 1% PER:-93 dBm
EIRP 10 dBm at 900M; 8 dBm at 5.8G; 20 dBm at 2.4G
Connectivity 1 x USB type A female (for connecting mobile device)
1 x Micro-USB for firmware updates
1 x Mini-HDMI video output for FPV
1 x CAN-Bus port (for future accessory)
Dual User Capability Host-and-slave connection
Mobile Device Holder Tablet or smartphone
Output Power 9 W
Power Requirements 1.2 A at 7.4 VDC
Battery 6S LiPi; 6000 mAh
Charging Temperature Less than 3 Months: -4 to 113°F / -20 to 45°C
More than Three Months: 72 to 82°F / 22 to 28°C
Storage Temperature 72 to 82°F / 22 to 28°C -4°F / -20°C
Mobile Device Holder Device Width: 2 to 6.7" / 5 to 17 cm
Flight Battery
Model TB47
Voltage 6S LiPo; 22.2 VDC
Capacity 4500 mAh / 99.9 Wh
Maximum Charging Power 180 W
Operating Temperature -4 to 104°F / -20 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
72 to 82°F / 22 to 28°C
Charging Temperature 32 to 104°F / 0 to 40°C
Weight 1.3 lb / 570 g
Charger
Model A14-100P1A
Voltage 26.3 VDC
Output Power 100 W
Mobile App
System Requirements iOS: 7.1 or later
Android: 4.1.2 or later

Note: The device must be connected to a transmitter via USB (wireless linking is not supporting). Additionally, waypoint navigation requires an active Internet connection in order to load the maps
General
Model Aircraft: T600
Operating Temperature 14 to 104°F / -10 to 40°C
Dimensions Diagonal Distance:
Landing Gear Lowered: 22" / 559 mm
Landing Gear Raised: 22.9" / 581 mm

Overall Dimensions:
17.2 x 17.8 x 11.9" / 438 x 451 x 301 mm
Weight Not specified by manufacturer

FAQ

What is the difference between the X3 and ZENMUSE X5 Series?

The biggest difference between them is in video recording capabilities, storage media, and workflow.
The ZENMUSE X5R shoots video in lossless format to preserve maximum detail and enable precise editing and post-processing, giving cinematographers full control over the look of their footage.
The ZENMUSE X5R has a removable 512GB SSD drive for storing the lossless video recorded. DJI CineLight is offered for processing lossless videos, enabling high-end filmmakers to easily adjust and output videos according to their own needs.

What’s the difference between ZENMUSE X5 and ZENMUSE X5R?

The biggest difference between them is in video recording capabilities, storage media, and workflow. The ZENMUSE X5R shoots video in lossless format to preserve maximum detail and enable precise editing and post-processing, giving cinematographers full control over the look of their footage.
The ZENMUSE X5R has an integrated 512GB SSD drive for storing the lossless video recorded. DJI has designed an editing software specifically for lossless videos, enabling high-end filmmakers to easily edit and process the videos according to their own needs.

What is the advantage of the ZENMUSE X5 Series, compared to other M4/3 cameras in the market?

The ZENMUSE X5 Series are the first M4/3 cameras designed specifically for aerial photography. The cameras come with an integrated 3-axis gimbal stabilization system, and are designed for use with the Inspire 1. The camera shoots 16 Megapixel photos and 4K video, and can be fully controlled via the new DJI GO app.
Can I use the ZENMUSE X5 Series separately as a stand-alone camera?

No. The ZENMUSE X5 Series cameras must be used together with the Inspire 1 or future supported DJI products.
Can I use the ZENMUSE X5 Series with Spreading Wings, Matrice 100 or other current flying platforms?

Currently, the ZENMUSE X5 Series is only compatible for use with the Inspire 1, but it will be suitable for more future supported DJI products.
What are the benefits of the M4/3 sensor?

The M4/3 sensor is eight times larger than the sensor in the ZENMUSE X3, enabling it to capture incredibly detailed images and videos, including UHD 4K, and gives it improved low-light performance. The M4/3 lens mount allows the use three lenses currently.
What is the M4/3 mount?

The M4/3 lens mount is the interface between the camera body and the attached M4/3 lens. Thanks to the standardized M4/3 mount, you can select three lenses currently. The size of M4/3 is between the size of super 35mm and super 16mm, and super 35 mm lenses can be added to the MFT mount which enables you to shoot high-quality aerial videos.
What lenses are compatible with the ZENMUSE X5 Series?

Currently, there are three prime lenses compatible with the X5: the Panasonic Lumix 15mm, Olympus M.Zuiko Digital 12mm and DJI MFT 15mm.
Why aren’t all MFT lenses compatible with the ZENMUSE X5 Series?

To ensure that the 3-axis gimbal’s movements are unrestricted, the lenses are required to fit the gimbal in terms of weight and size. Not all existing lenses fit these requirements, which is why not all MFT lenses are compatible with the ZENMUSE X5 Series.
What is the DJI GO App, and where can I download it?

DJI GO is an easy-to-use mobile application for iOS and Android devices for use together with DJI products. For more information please visit: http://www.dji.com/product/goapp
Which mobile devices are compatible with the app?

The iOS version of DJI GO (v2.1.0) requires devices with iOS 8.0 or later. Compatible with iPhone 5s, iPhone 6, iPhone 6 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, and iPad mini 3 Wi-Fi + Cellular. This app is optimized for iPhone 5s, iPhone 6, and iPhone 6 Plus.
Android Version v2.0.2. Requires Android 4.1.2 or later. Compatible with Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 9, Google Nexus 7 II, Ascend Mate7, Nubia Z7 mini, SONY Z3 EXPERIA, MI 3, MI PAD.

How do I install the ZENMUSE X5R on to the Inspire 1?

If you have an Inspire 1 with a ZENMUSE X3 installed, the mounting mechanism should be changed to the new one that's included with the ZENMUSE X5 series. The new mounting mechanism that's provided with ZENMUSE X5 Series are also backwards compatible with the Zenmuse X3 camera.
Why does the ZENMUSE X5R have an integrated SSD drive, but not the ZENMUSE X5?

Because the ZENMUSE X5R's footage captured is lossless and uncompressed, it requires a large amount of memory for storage. We offer a 512GB SSD with the ZENMUSE X5R for this reason.
Can I remove the lens hood when using my ZENMUSE X5 with the designated lenses?

It depends on the lens used. The 3-axis gimbal is sensitive to the weight of the mounted lens. When you are using an Olympus M.Zuiko Digital 12mm, the lens hood can be removed without disturbing the gimbal’s operations. However, if you are using a Panasonic Lumix 15mm or DJI MFT 15mm, the lens hood must be attached. For more detail, please go to the download page for official guidance.
Can DJI GO display my recorded photos and videos?

Yes, you can view your photos and videos by going to the Library in the DJI GO app.
Can I use DJI GO to edit my photos and videos?

Yes, you can go to the Library and find the video and photo editor.
How do I use auto focus on the ZENMUSE X5 Series?

To focus on a specific area, all you have to do is to tap on the screen of your mobile device just like the way you are using it on a smartphone.
What are the available exposure modes on the ZENMUSE X5 Series?

Auto, Aperture First, Shutter First, Manual, AE lock, AE Spot Metering, as well as AW Center Metering.
Can I zoom when using the ZENMUSE X5 Series?

No. The ZENMUSE X5 Series lenses currently available are fixed focal length lenses.
