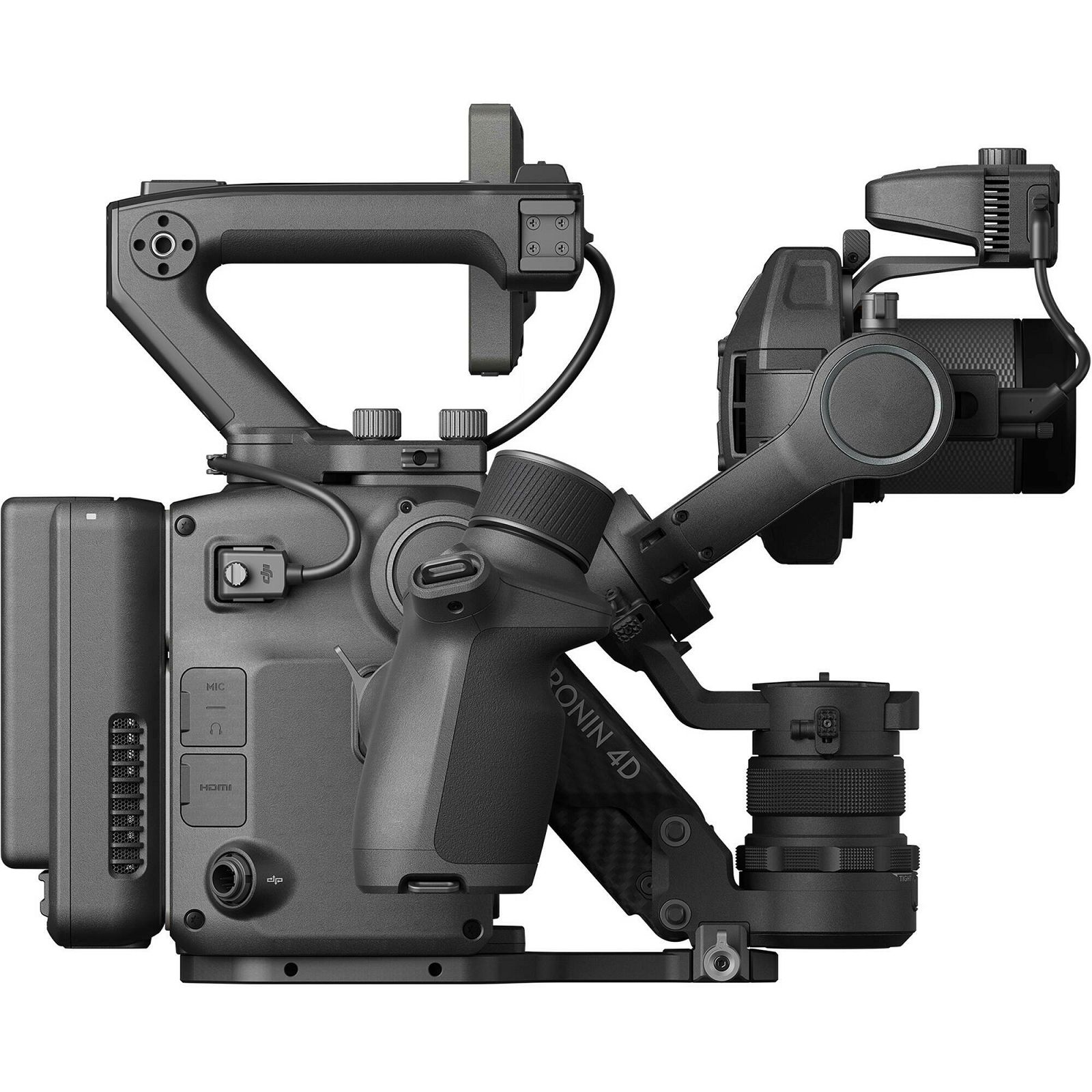

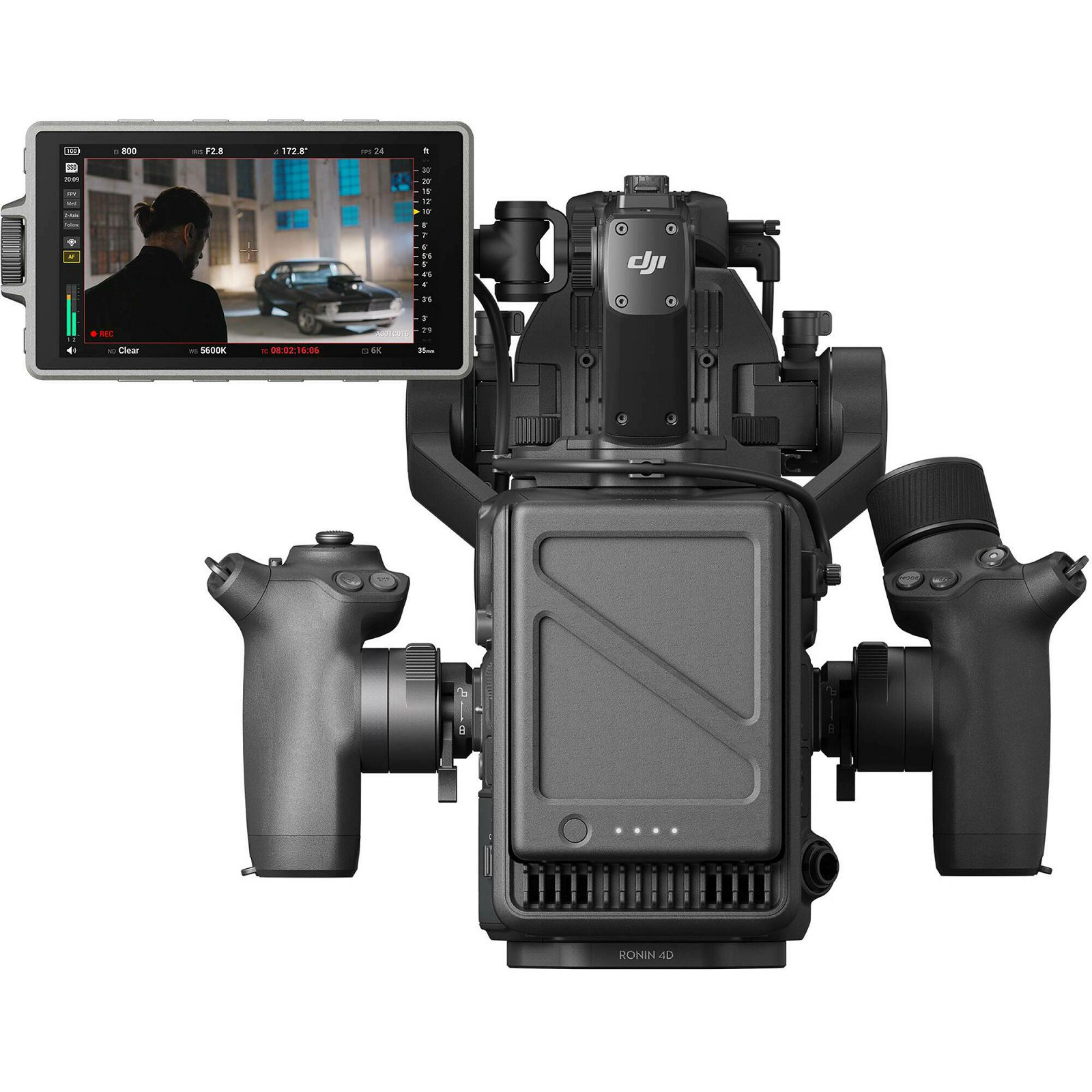

DJI Ronin 4D 4-Axis gimbal Stabilizer 4D motorizirani stabilizator s kamerom za snimanje

ZNAČAJKE:

Designed for both solo use by independent creators and dynamic pro video capture, the Ronin 4D from DJI is an innovative all-in-one camera/gimbal solution. The "4D" designation refers to the Z-axis (vertical) stabilization built into the X9-6K camera and the three-axis gimbal stabilization. Constructed from lightweight carbon fiber and an aluminum/magnesium alloy, this system is ideal for independent content creators, indie filmmakers, and event videographers. The full-frame capture at rates up to 6K60 in both ProRes HQ and Ronin's CineCore 3.0 image processing system with ACES workflow support also suits the 4D as a "B" or 2nd unit camera for larger cine-style productions.

This combo includes the main Zenmuse X9-6K full-frame video camera and a 3-axis gimbal, plus an array of modular monitor, focusing, and control components. Kit items include a DL lens mount, a LiDAR range finder, one TB50 battery, a charging hub, and left and right control handgrips.

Note:
A wireless video transmitter is not included in this combo kit.

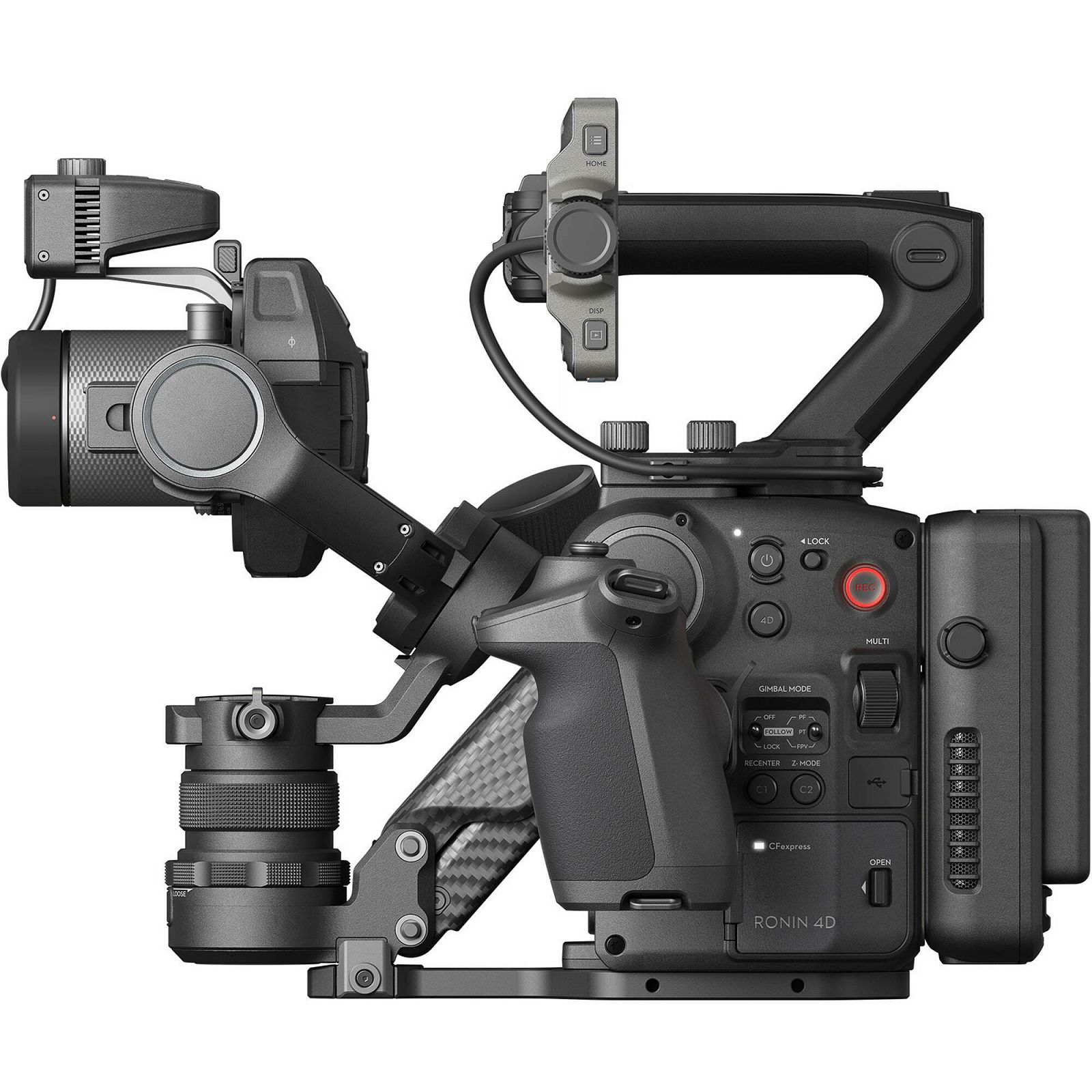

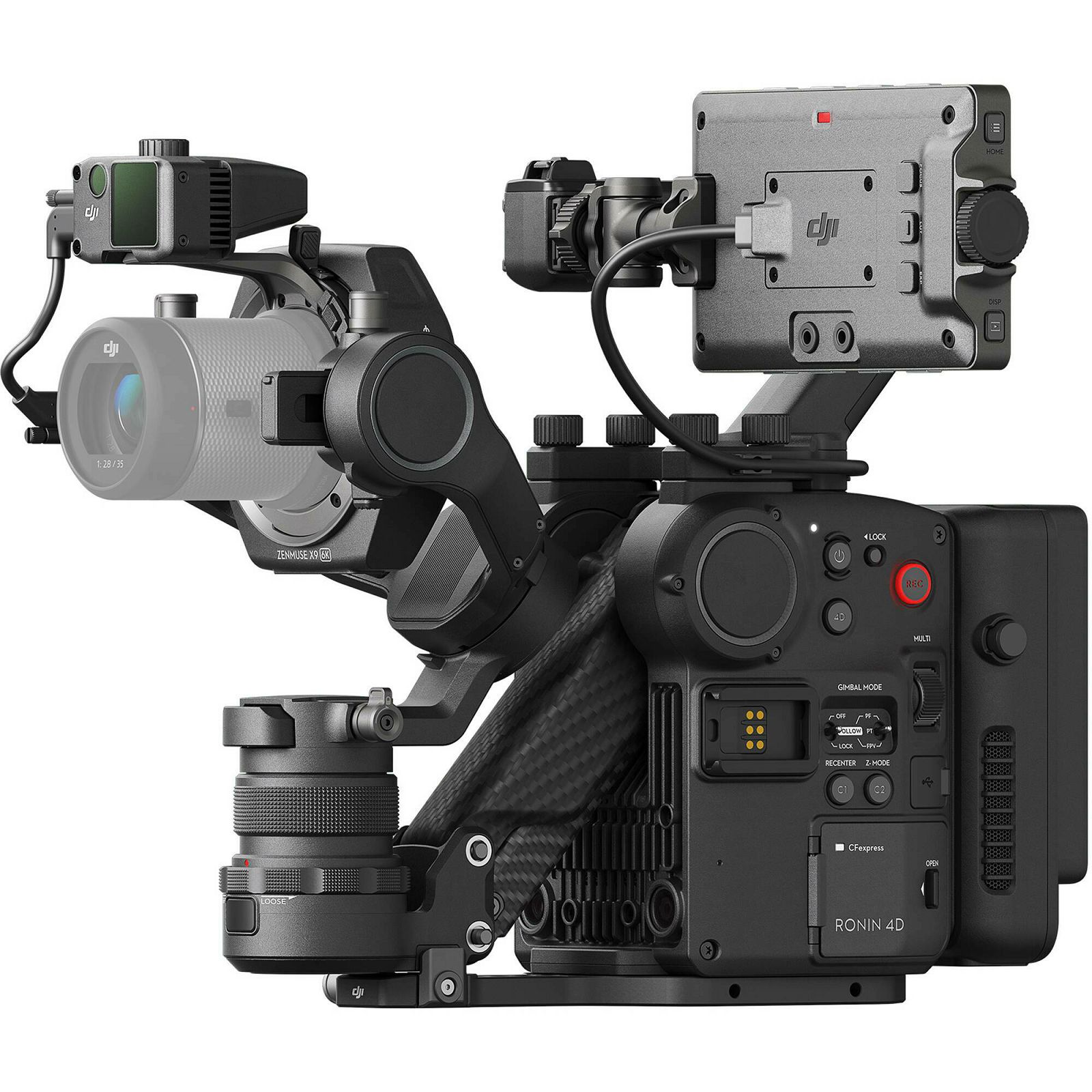

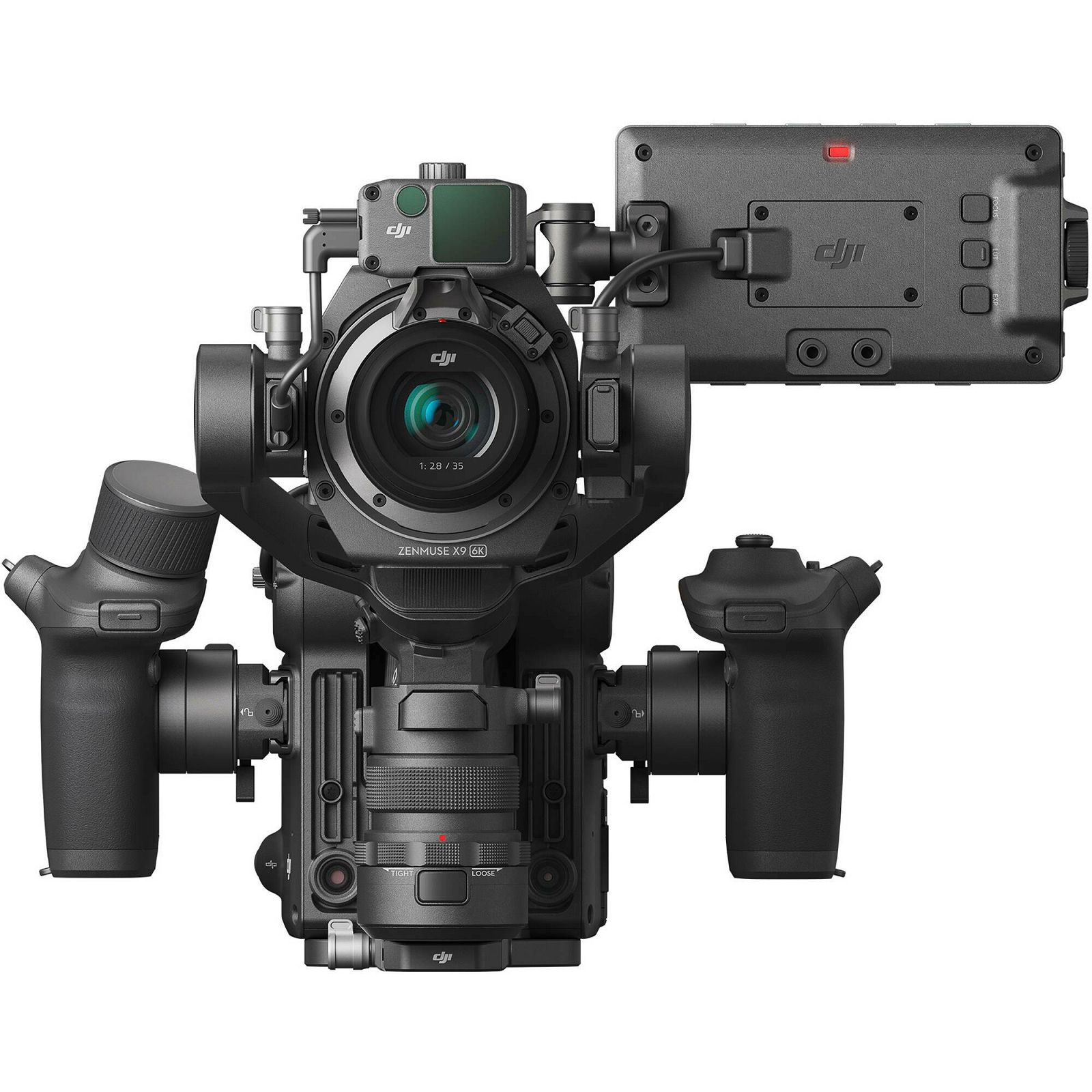

All-in-One Camera Gimbal System

This innovative camera gimbal combines imaging, stabilization, and focusing in one lightweight, carbon fiber and aluminum/magnesium alloy rig
Combination design reduces your setup time at the start of the day and in between setups and locations

Included modular components:
Left and right control handgrips
LiDAR range finder

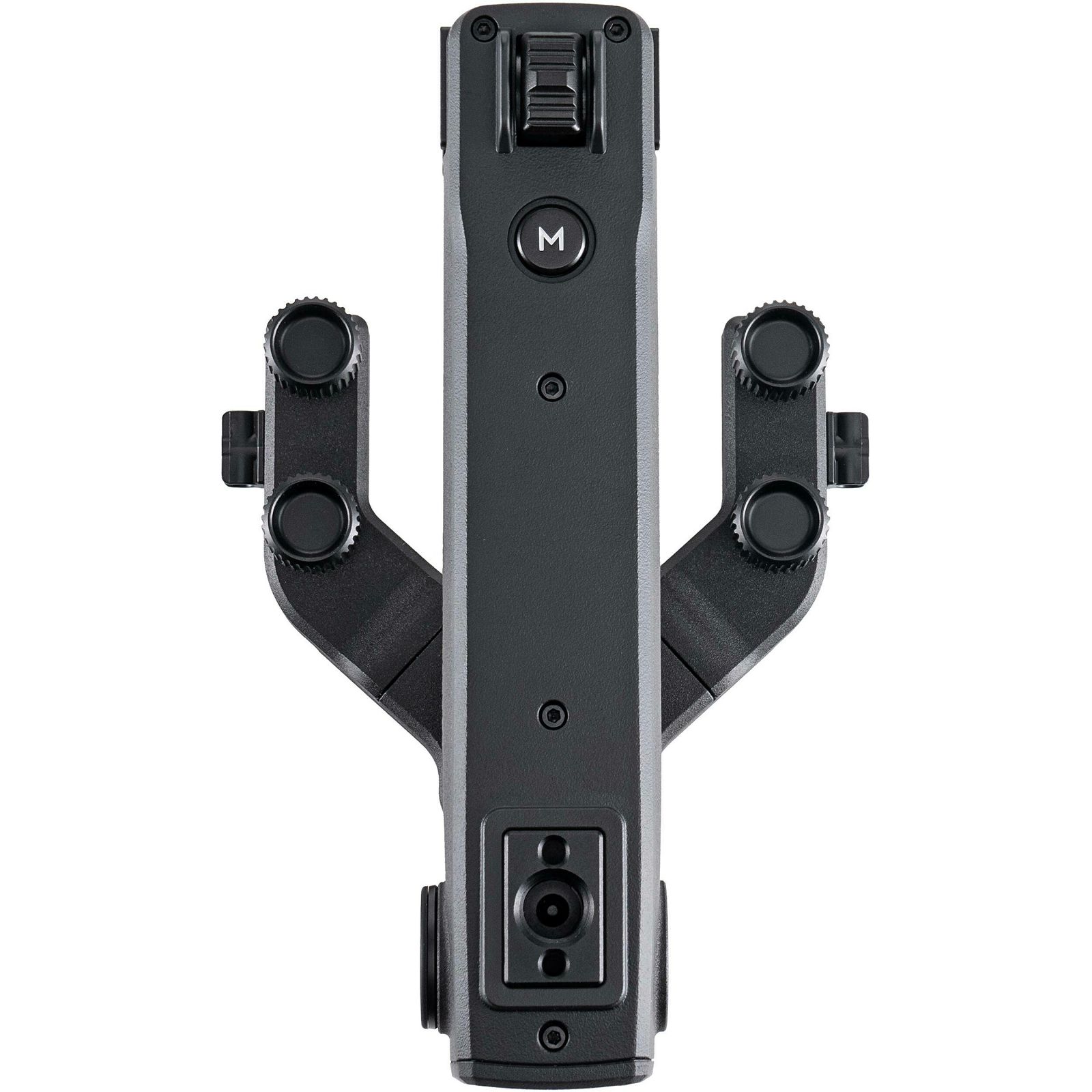

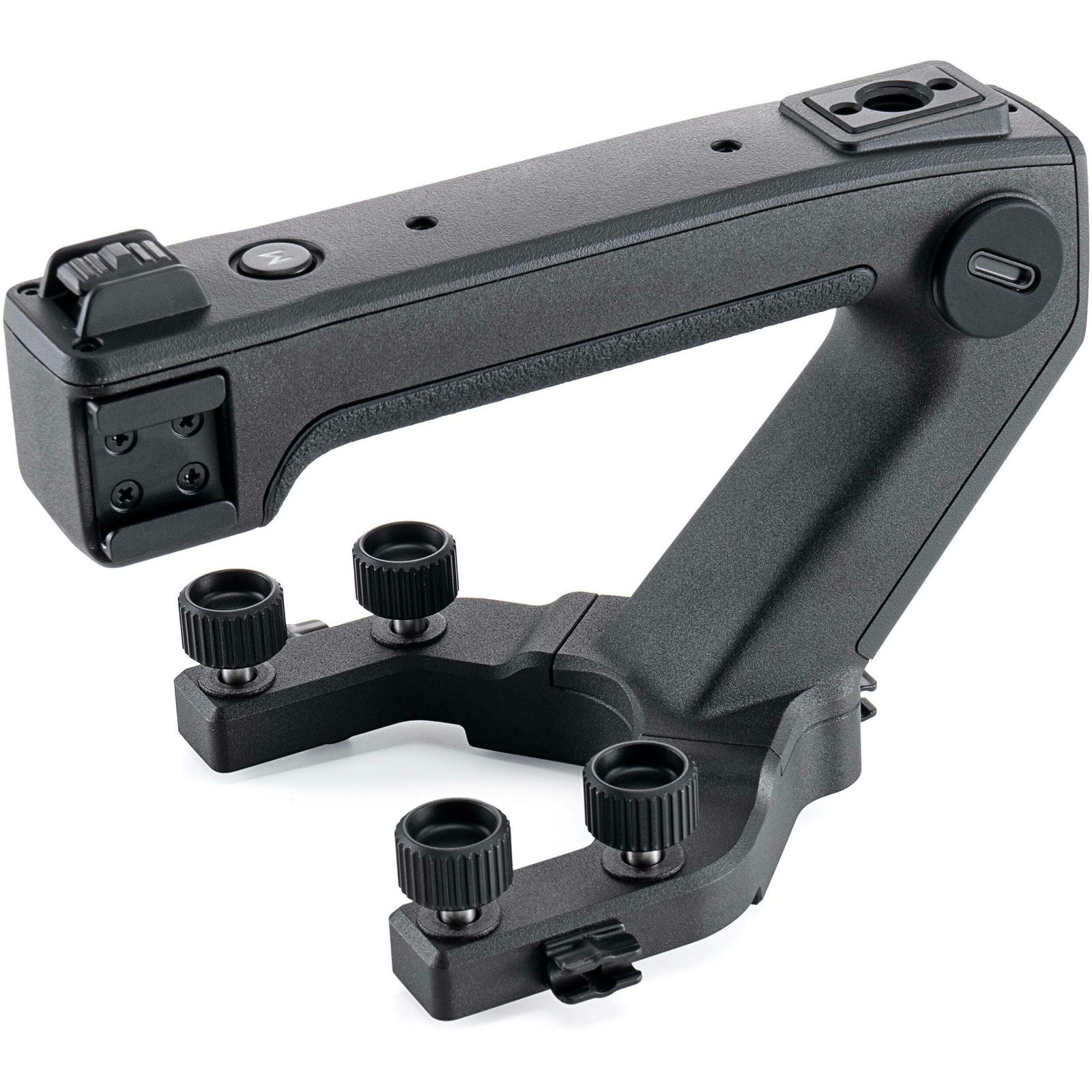

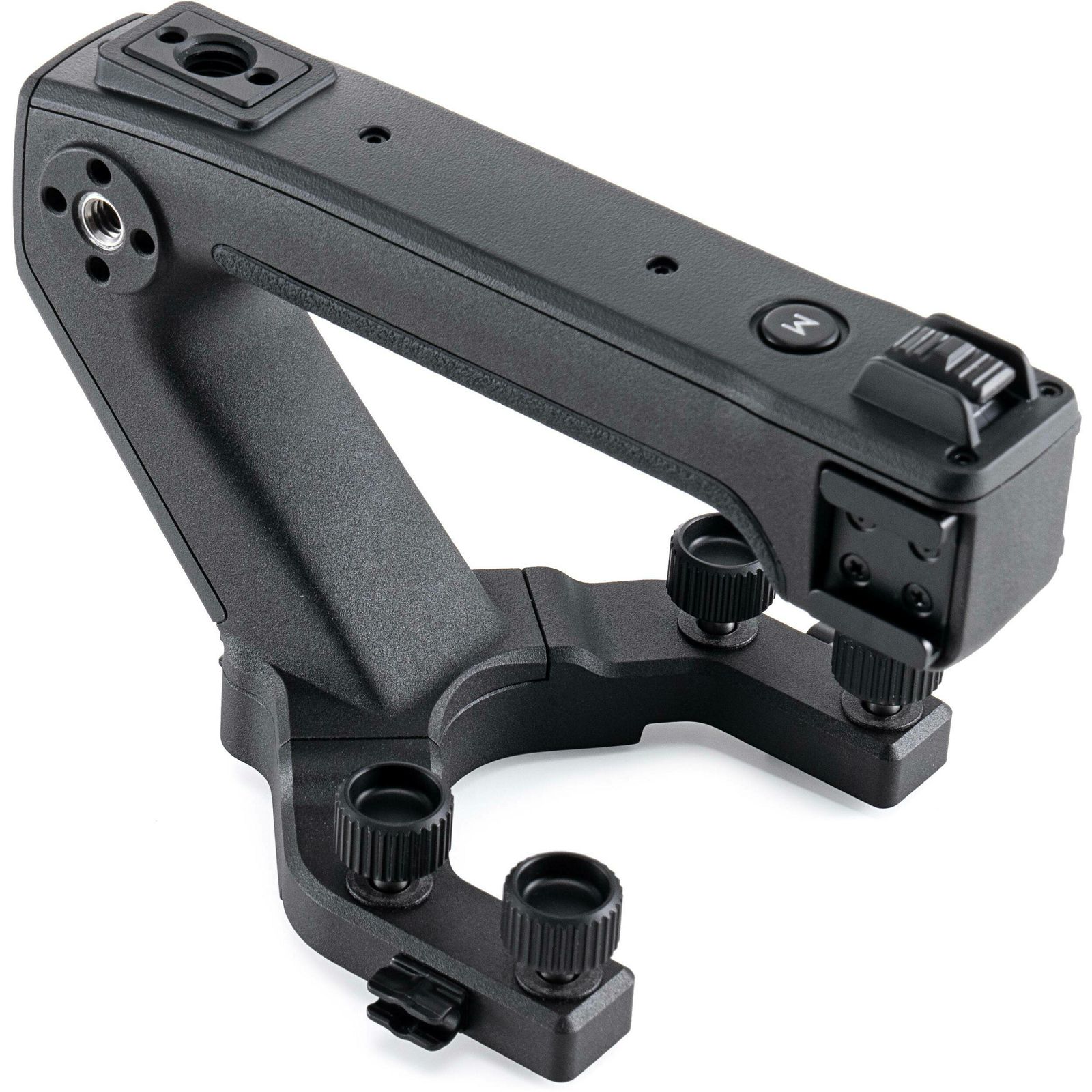

Top handle
Baseplate

Separately available components:
7" high-bright, touchscreen monitor
Wireless video transmitter
ProSSD 1TB media drive
X9 focus motor
Leica M lens mount
3-channel FIZ lens control unit

CineCore 3.0 Imaging Processing System
The Zenmuse X9, DJI's full-frame camera, uses a proprietary chip for advanced processing and high-performance computing
The Ronin 4D uses the CineCore 3.0 system to support internal recording of ProRes 422 HQ, and H.264 video
Industry-standard ACES workflow support provide easy compatibility with other cinema cameras

Advanced 4-Axis Stabilization
Selectable Z-axis stabilization reduces unwanted vertical camera movement, especially during dollying moves
Z-axis stabilization built into the camera, 3-axis stabilization in the gimbal
Tilt stabilization uses dual, symmetrical motors
Pan and X (roll) axes with additional stiffness buffering
Downward ToF (time of flight) sensor
Forward and downward-facing dual-vision sensors
Built-in IMU (inertial measurement unit) and barometer
New and improved stabilization algorithm

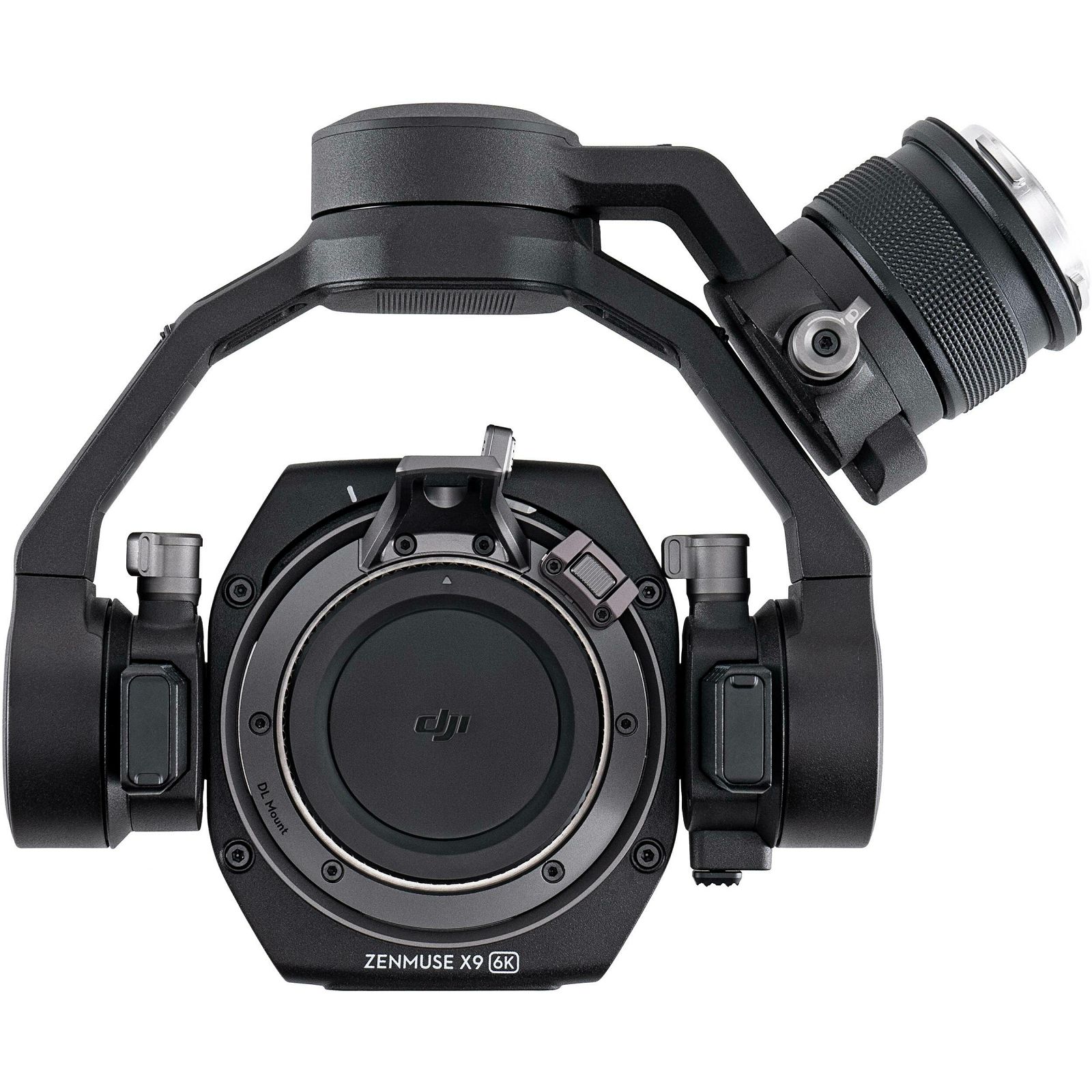

Zenmuse X9-6K Camera with DL Lens Mount
The D4's DL lens mount supports DJI's current selection of lightweight, carbon fiber 16, 24, 35, and 50mm lenses
Full-frame capture with all but the 16mm DL lens
Interchangeable lens mounts available for use with Sony E-mount or Leica M-mount lenses
Supports ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic cine lenses
Please see the current lens compatibility list here

422 HQ, and H.264 Capture
Capture up to 6K60 ProRes 422 HQ video in full-frame 2.39:1
Capture up to 4K120 ProRes 422 HQ video in Super 35 2.39:1
Capture up to 2K120 ProRes 422 HQ or H.264 in 17:9 full-frame

Dual Native ISO
800/5000 dual native ISO
EI 200 to 12800
14+ stops of dynamic range produce nuanced imaging under a range of lighting conditions

In-Camera ND Filters
Built-in ND.03 to ND2.7 filters let you easily adjust to quickly changing lighting conditions
Especially handy for outdoor shoots with changing cloud cover
Motorized filter system
Carry in "built" mode for easy company moves

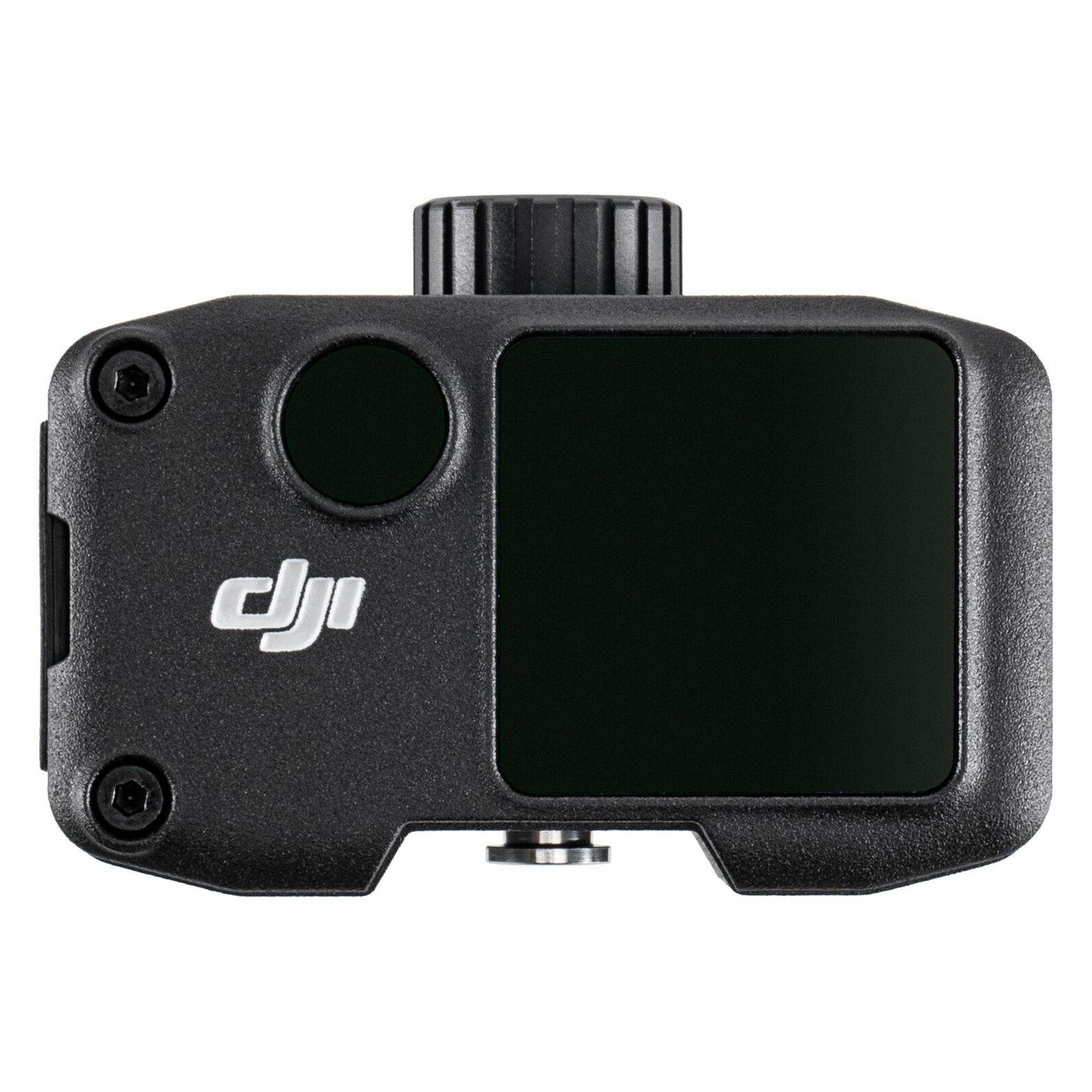

LiDAR Focus Control

LiDAR (light detection and ranging) system uses up to 43,200 ranging points within a 33' range
Excellent focusing performance even in low-light environments
Focus pulling can be viewed graphically, thanks to a built-in depth meter
Intuitive and highly accurate focusing system
Modular LiDAR focusing module attached to the front of the D4 rig

Autofocus Features
Maintains focus, even when motion blur is produced by fast-moving subjects
Separately available focus motor for use with manual lenses
Continuous autofocus is compatible with ActiveTrack Pro, a boon for solo operators

Automated Manual Focus
The AMF function (Automated Manual Focus) combines the accuracy of manual focus with the ease of autofocus
Operators can grab the focus wheel of the right handgrip at any time to manually focus
Handgrip focus wheel uses dynamic damping to provide a physical feel for focus changes

ActiveTrack Pro
DJI's ActiveTrack Pro features combine continuous autofocusing with composition adjustment for professional-looking tracking shots out of the gate
ActiveTrack Pro is based on computer vision, deep learning technology, and the computing power of DJI's CineCore 3.0 imaging system

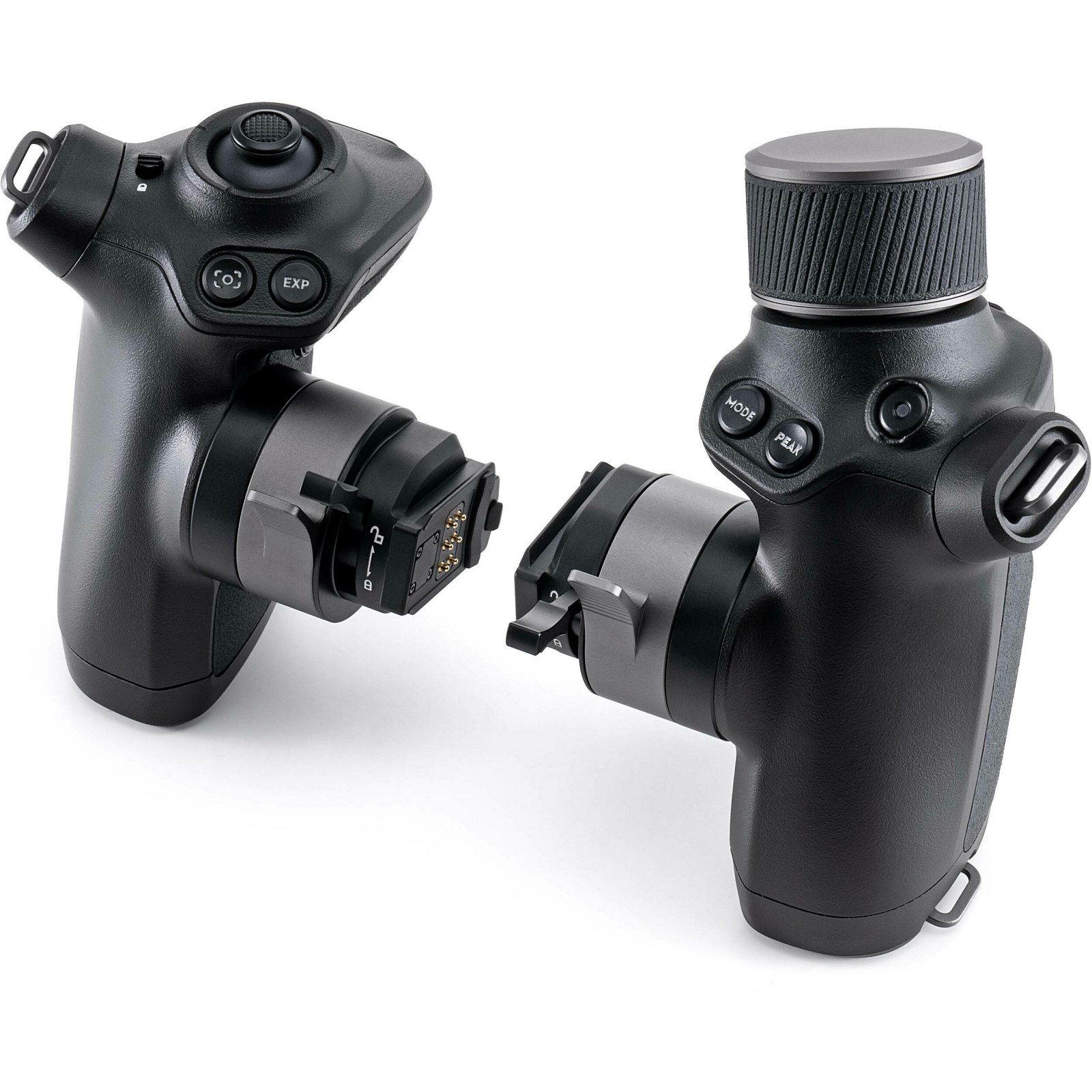

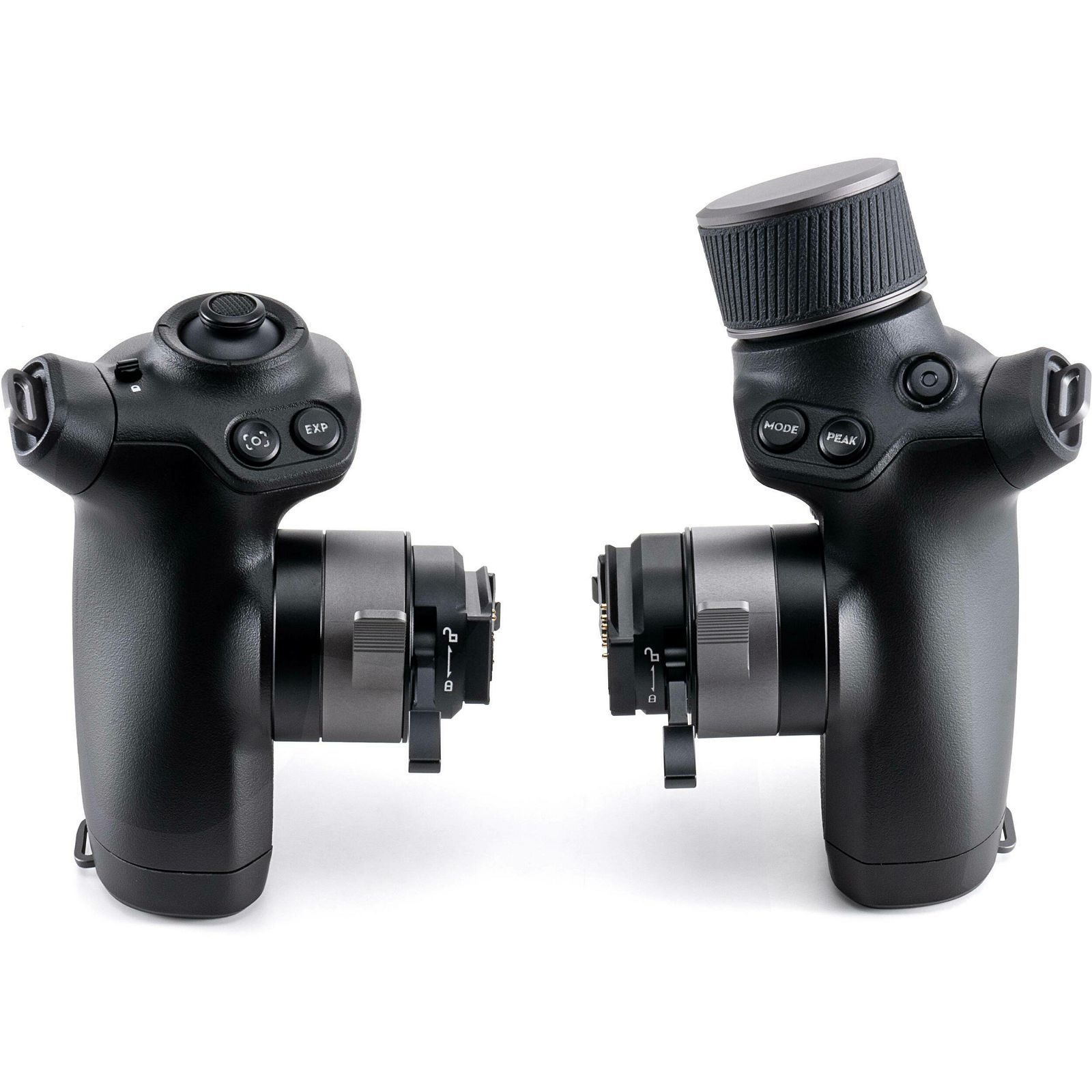

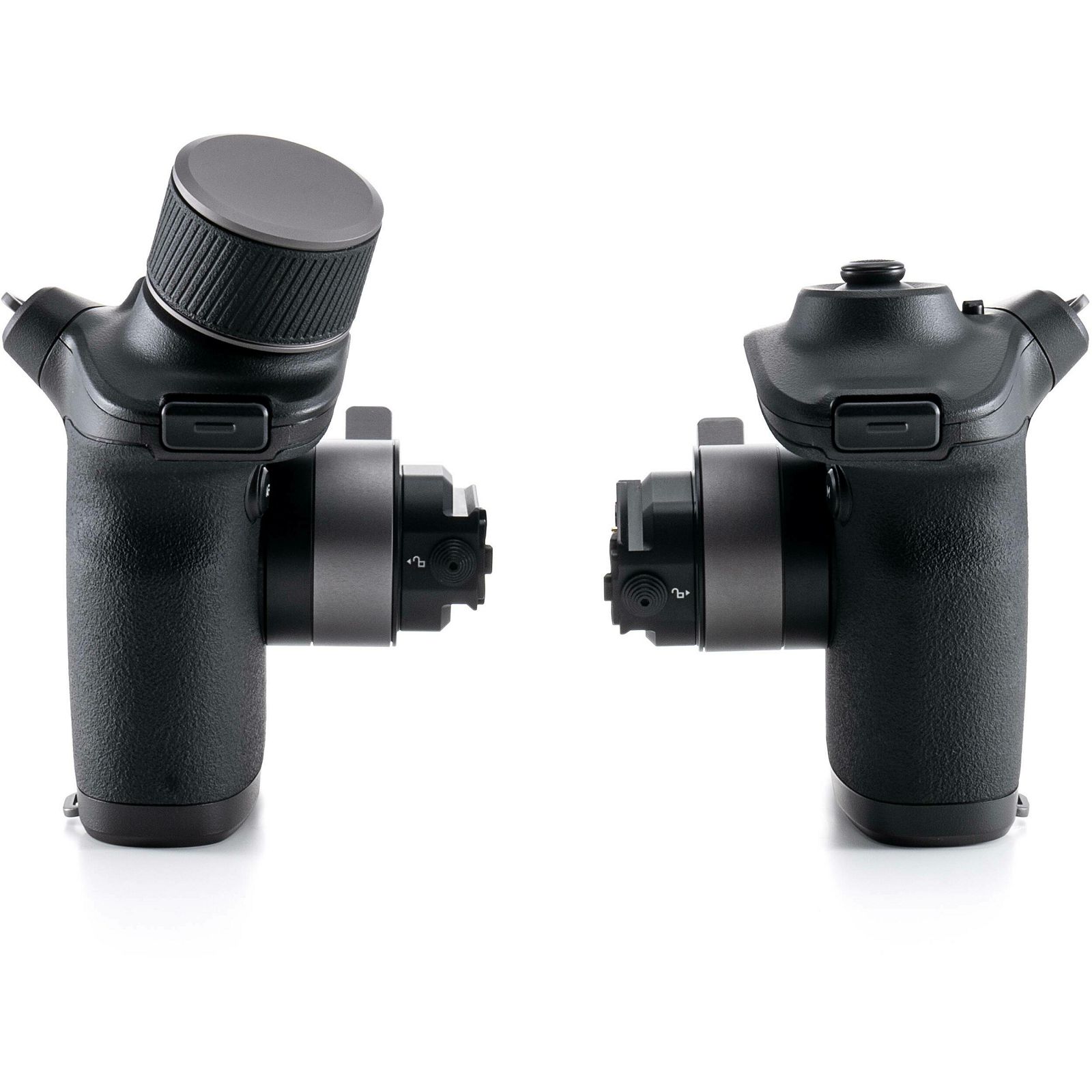

Dual Focus, Iris, and Control Grips
Right-hand grip has a focus wheel that doubles as a control for main camera adjustments (menus, exposure, etc.)
Left-hand grip has a full-range joystick to control pan/tilt; useful when adjusting headroom and more during follow mode

Single User or Crew-Assisted Operation
Top-notch stabilization in a lightweight form
Ideal for both solo operators as well as assistant-accompanied shoots
Designed to counter footsteps from inexperienced gimbal shooters
Works equally well with a single grip, dual grips, shoulder supported, or tripod-mounted
Sport mode is available with the touch of a button, accommodating faster-paced action
Use in standard, underslung, jib, and crane setups

Media Storage Options

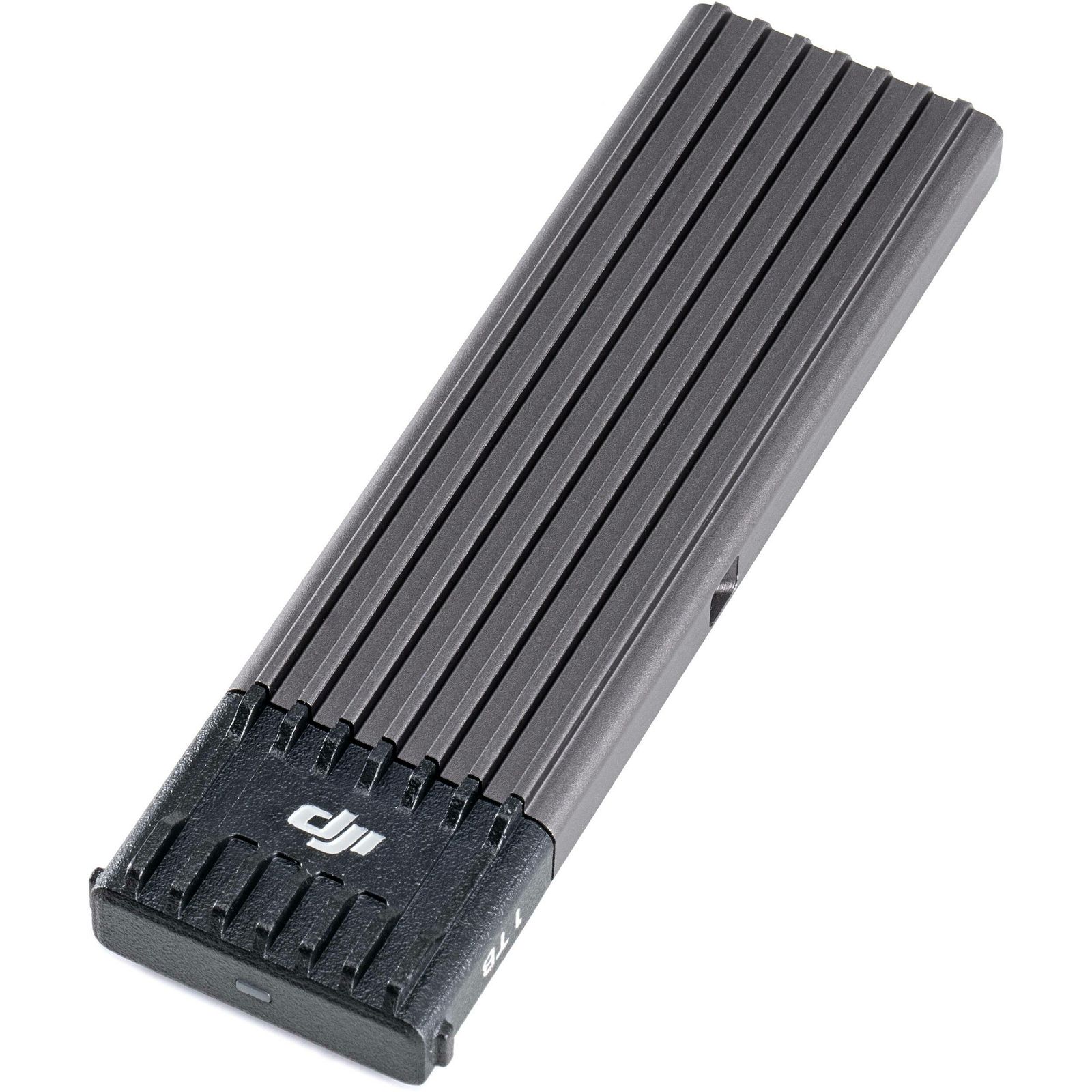

ProSSD 1TB drive (not included)
USB Type-C port for external recording, no reader needed to offload footage
Integrated CFexpress Type-B card slot

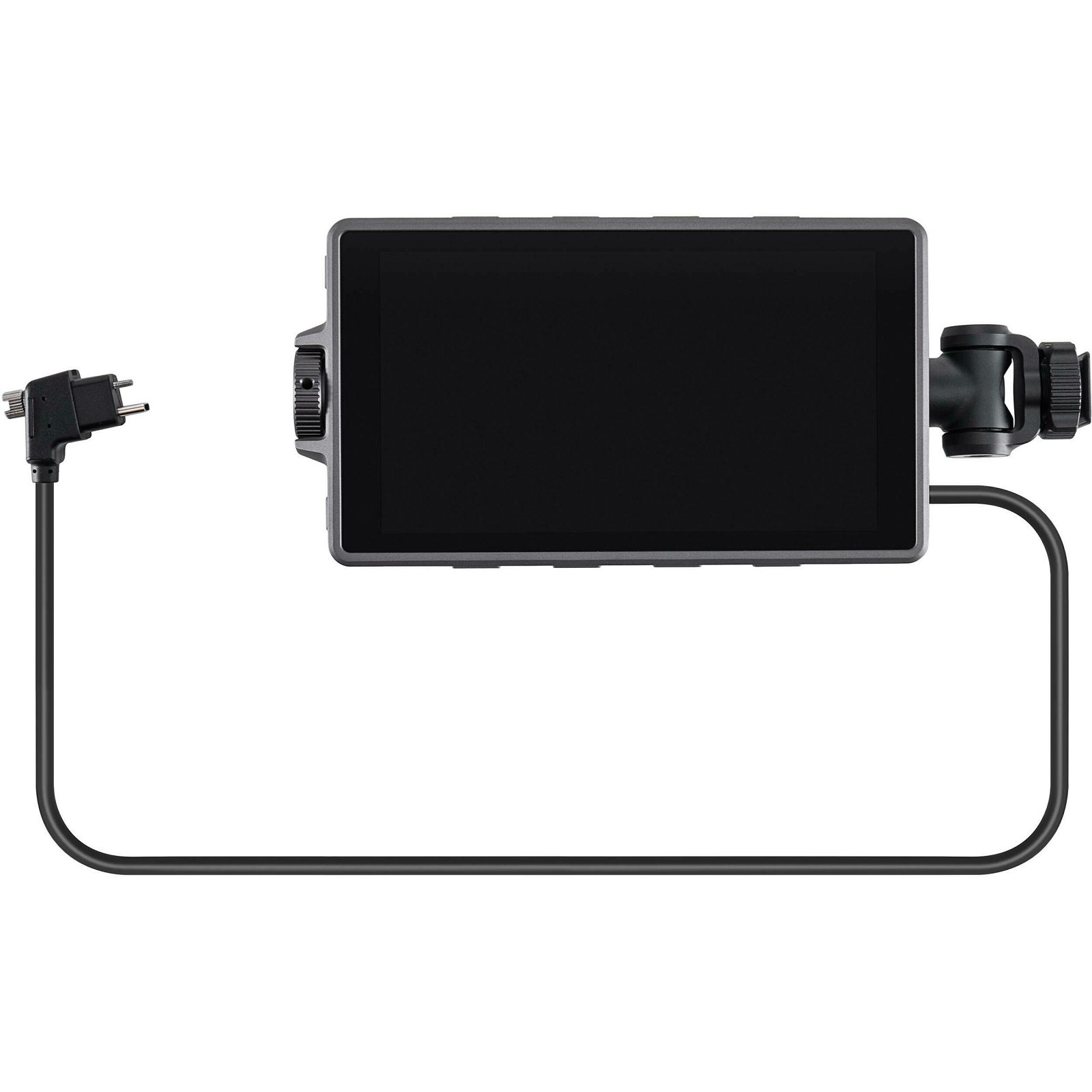

Built-In 5.5" Touchscreen Monitor
5.5" 1920 x 1080 monitor
1000 cd/m2 display
Touchscreen control
Rotates for optimal viewing

Audio Recording
Integrated stereo microphones capture dual-channel 24-bit audio
Built-in 3.5mm audio input port and XLR port via expander plate

Power Options
Uses the same TB50 intelligent batteries as the Ronin 2 and Inspire 2
Each battery provides up to 2.5 hours of capture time
Batteries charge fully in approximately 1.5 hours
Support auto-heating for cold weather use
AC adapter for uninterrupted shooting

SPECIFIKACIJE:

Lens Mount: DL
Interchangeable Lens Mount: Yes
Sensor Resolution: Effective: 24.1 Megapixel
Sensor Type: Full-Frame CMOS
Image Stabilization: Digital, 4-Axis
Built-In ND Filter: Mechanical Filter Wheel with Clear, 1 Stop (1/2), 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16), 5 Stop (1/32), 6 Stop (1/64), 7 Stop (1/128), 8 Stop (1/256), 9 Stop (1/512) ND Filters
Internal Filter Holder: Yes
ISO Sensitivity: 200 to 12,800
Shutter Type: Rolling Shutter
Shutter Speed: 1/24 to 1/8000 sec
Advertised Dynamic Range: 14 Stops
White Balance: 2000 to 11,000K

Gimbal
Rotation Range:
Yaw (Pan): 285°
Pitch (Tilt): 210° (-55 to 155°)
Roll: 70° (-35 to 35°)

Z-Axis Adjustment Range: 5.1" / 130 mm
Follow Speed:
Pan/Tilt/Roll: 360°/s using DJI Master Wheels or Pro Force
Pan/Tilt/Roll: 120°/s using Ronin 4D Handgrip

Load Capacity: 2.1 lb / 960 g

Internal Recording
Recording Modes:
ProRes 422HQ:
6008 x 3168p at 23.98/24/25/29.97/30/50/59.94/60 fps
4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60/72/96/100/120 fps
2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60/72/96/100/120 fps

H.264 4:2:0 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60/72/96/100/120 fps
2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60/72/100/120 fps

Gamma Curve: HDR-HLG, Rec709
Audio Recording: 2-Channel 48 kHz LPCM Audio
Still Image Support: None

External Recording
Video Output:
USB:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps
2048 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

HDMI:
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

IP Streaming: None

Interface
Media/Memory Card Slot: Single Slot: DJI ProSSD
Single Slot: CFexpress Type B
Video Connectors: 1 x HDMI (HDMI 1.4) Output
Audio Connectors:
1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output

Built-In Microphone Type: Stereo
Other I/O:
1 x USB Type-C USB 3.1 Gen 1 Data, Video Input/Output
1 x Proprietary Monitor Output

Monitor
Size: 5.5"
Resolution: 1920 x 1080
Display Type: Tilting Touchscreen LCD

EVF
EVF: Optional, Not Included

Power
Battery Type: DJI TB50
Power Connectors: 1 x Barrel (12 to 30 VDC) Input

Environmental
Operating Temperature: 14 to 104°F / -10 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C

Physical
Material of Construction: Carbon Fiber, Aluminum, Magnesium Alloy
Dimensions:
12.2 x 11.4 x 10.9" / 309 x 290 x 277 mm (With Protrusions)
9.3 x 6.3 x 4.5" / 235 x 160 x 115 mm (Without Protrusions)
Weight:
10.3 lb / 4.67 kg
3.2 lb / 1.45 kg
2.29 lb / 1.04 kg

UKLJUČUJE:

DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit
Zenmuse X9-6K Gimbal Camera
DL Mount
DL Mount Body Cap
DL Mount Lens Cap
X9 Gimbal Base Cap
Ronin 4D Gimbal Base Cap
Main Body
2 x Handgrip
Handgrip Extended Control Stick
Top Handle
TB50 Battery Mount
TB50 Intelligent Battery
2 x Handgrip Strap

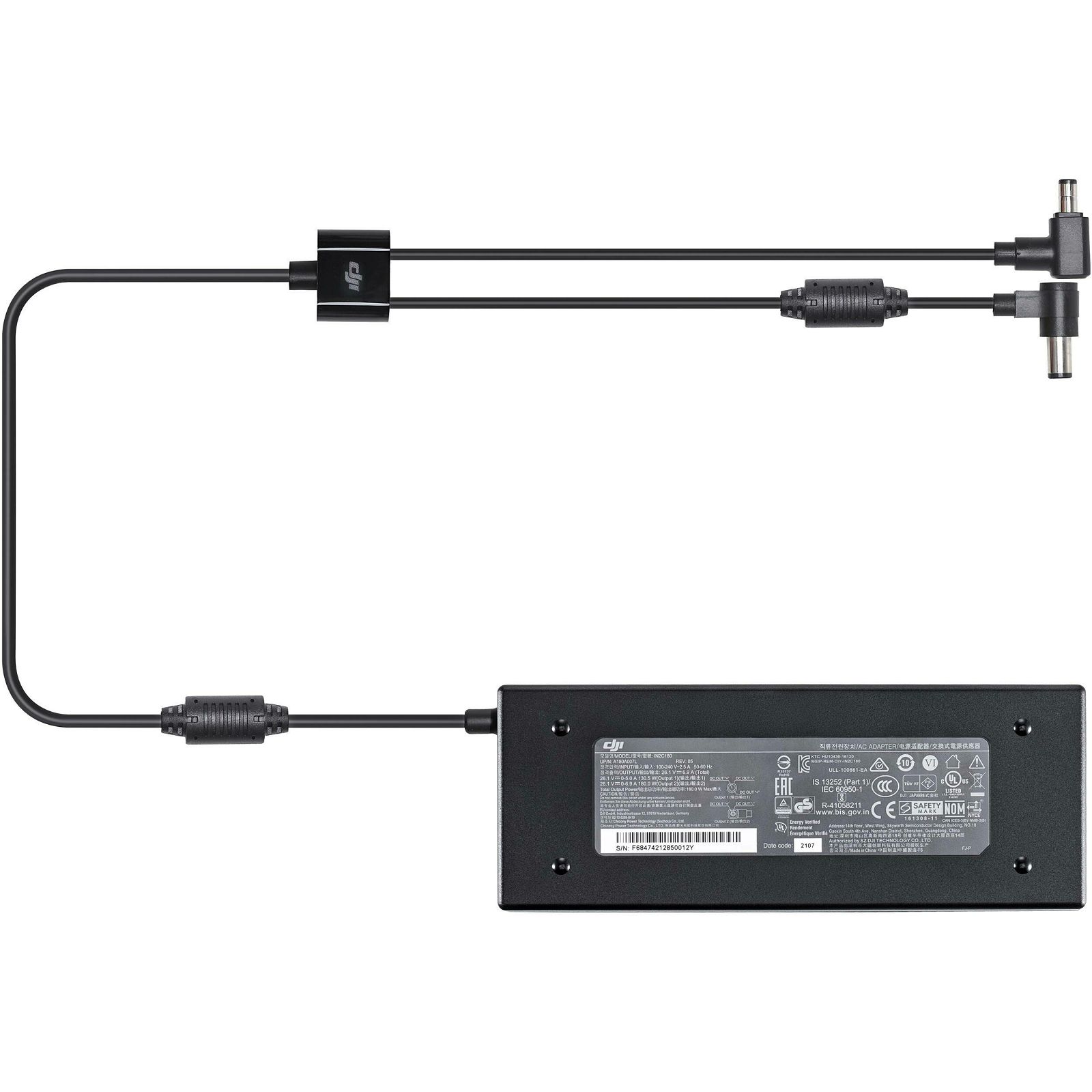

Power Adapter

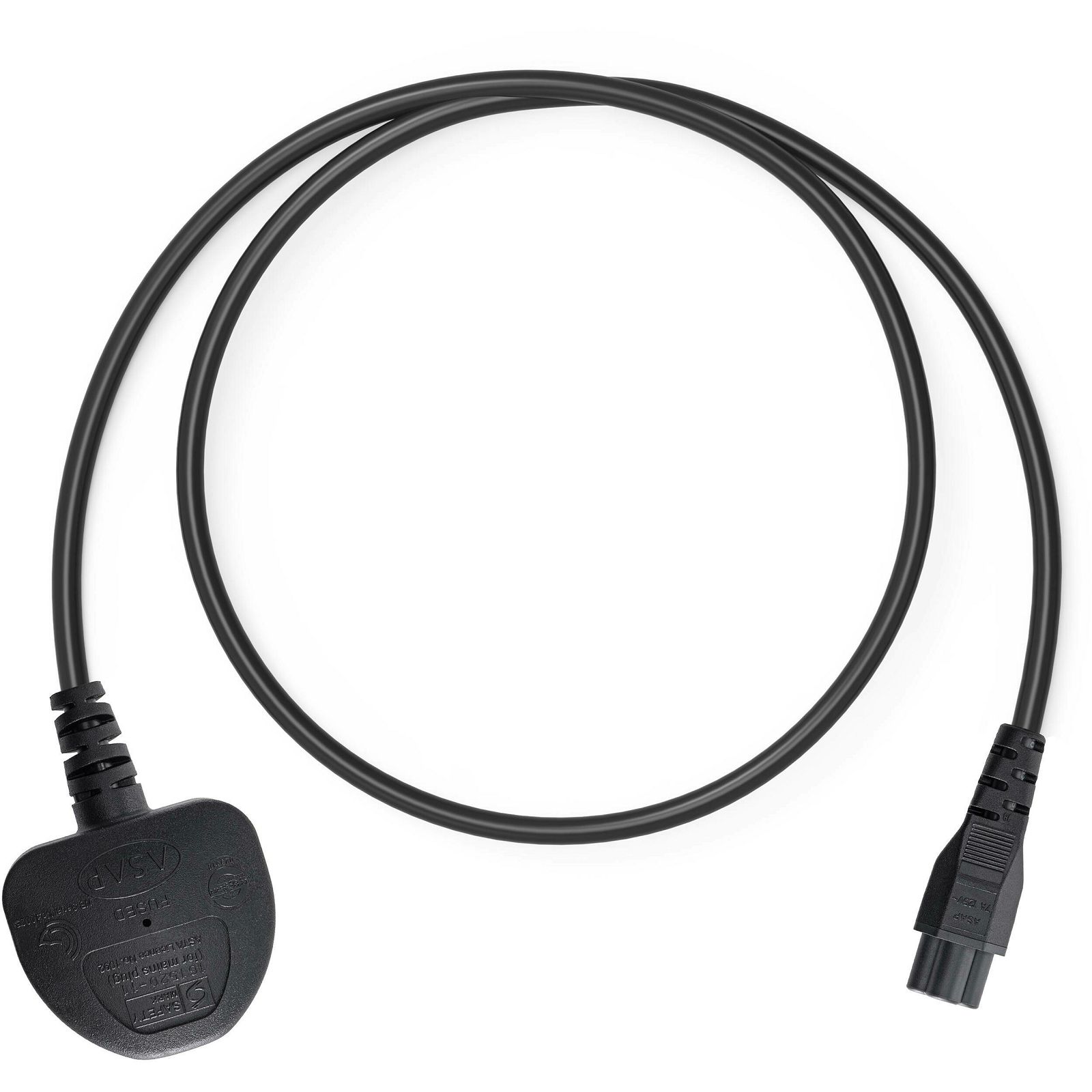

8 x AC Power Cable
TB50 Charging Adapter

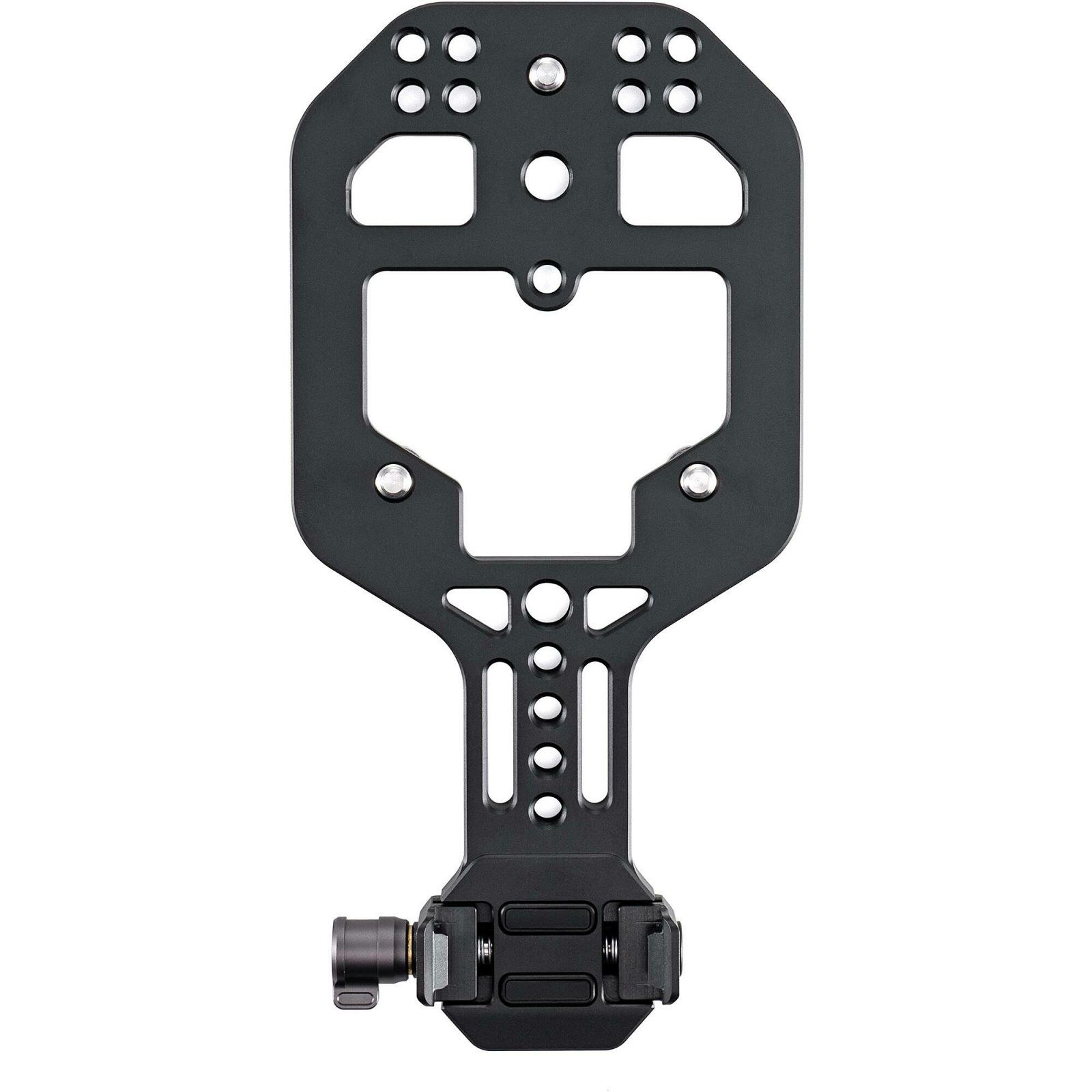

Baseplate
LiDAR Range Finder/Focus Motor Cable
USB Type-A to Type-C Cable
Ronin 4D Carrying Case
Ball-End Allen Key (3mm)
6 x 1/4"-20 Screw (10mm)
LiDAR Range Finder
LiDAR Range Finder Holder
C-Shaped DL Mount Ring
2 x M2-3 Screw (3mm)
Ball-End Allen Key (1.5mm)
