DJI Goggles Racing Edition + DJI Goggle Carry More Backpack (CP.VL.00000014.03)

ZNAČAJKE:

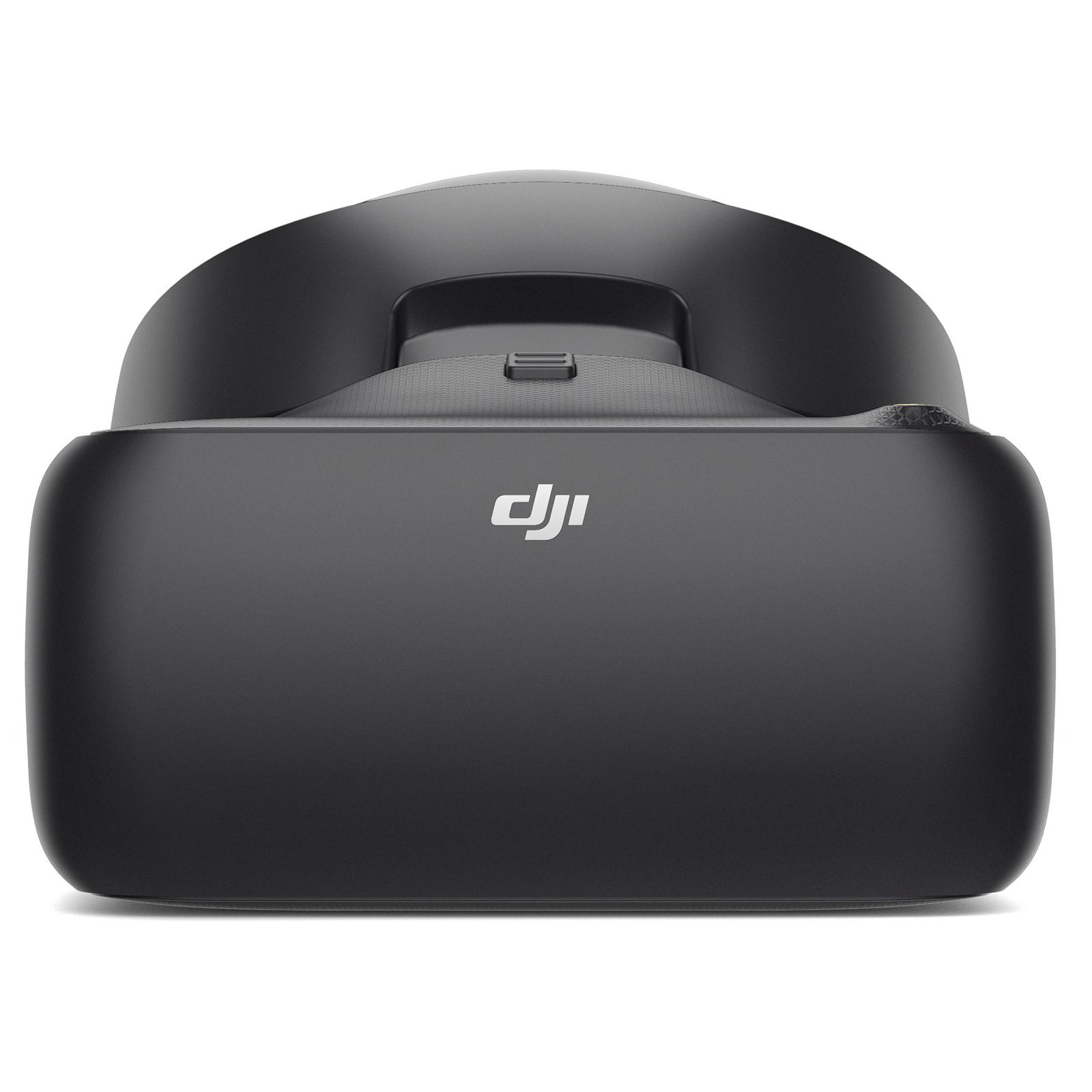

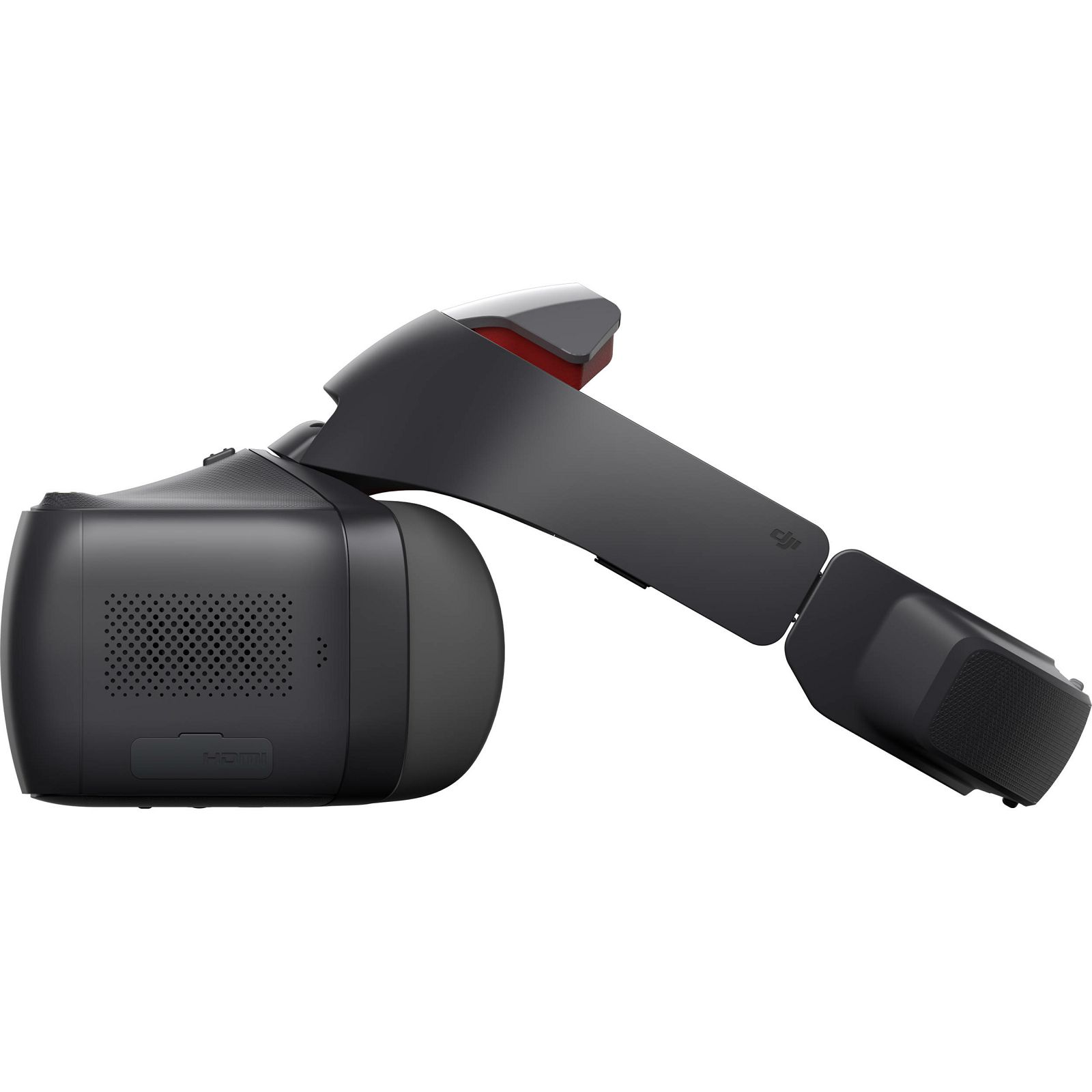

DJI Goggles Racing Edition

For DJI Aircrafts
Full Flight Setting Control
Two High-Resolution Screens
Head Tracking
Gimbal Control
On-Screen Display
Digital & Analog Transmission

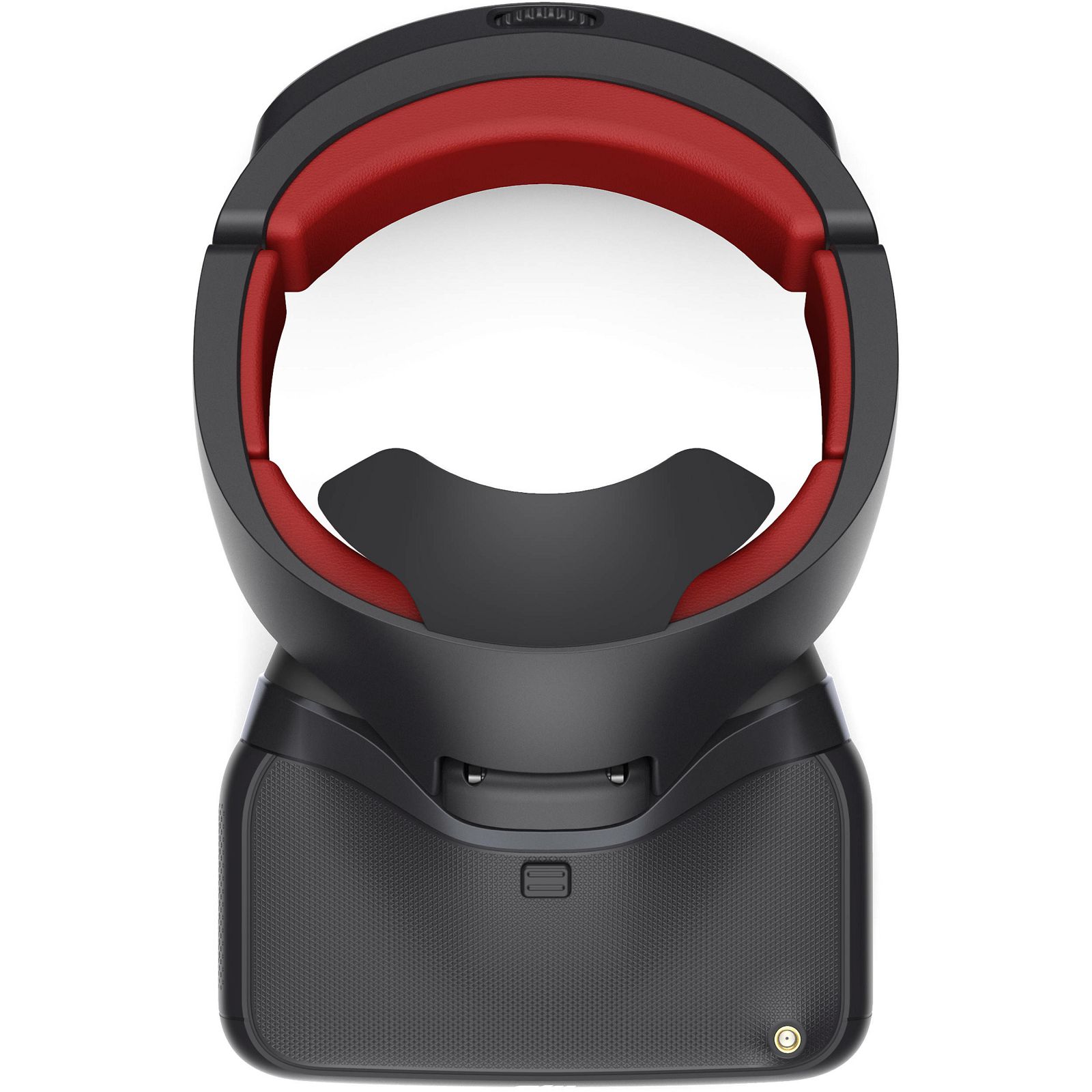

Facial Pad

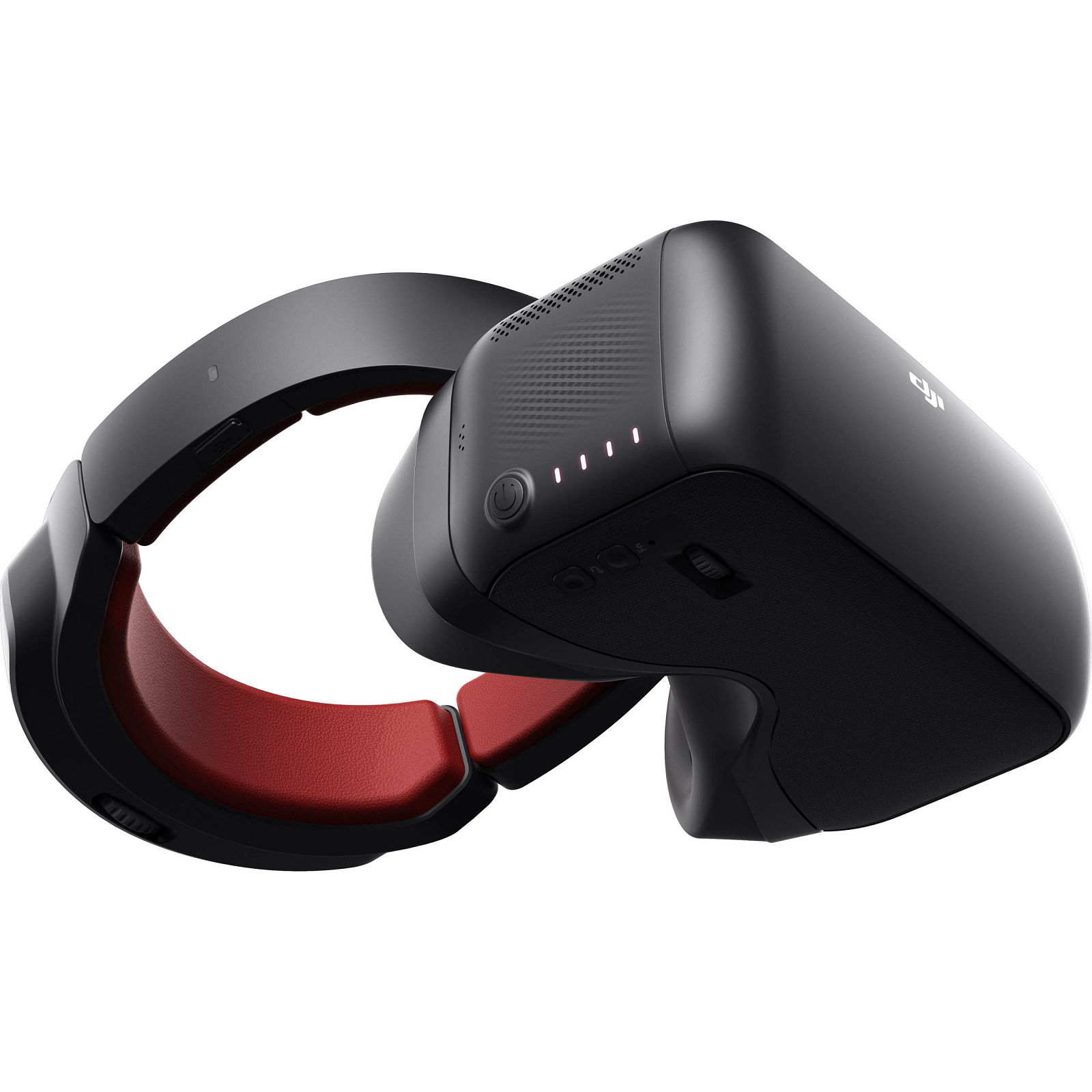

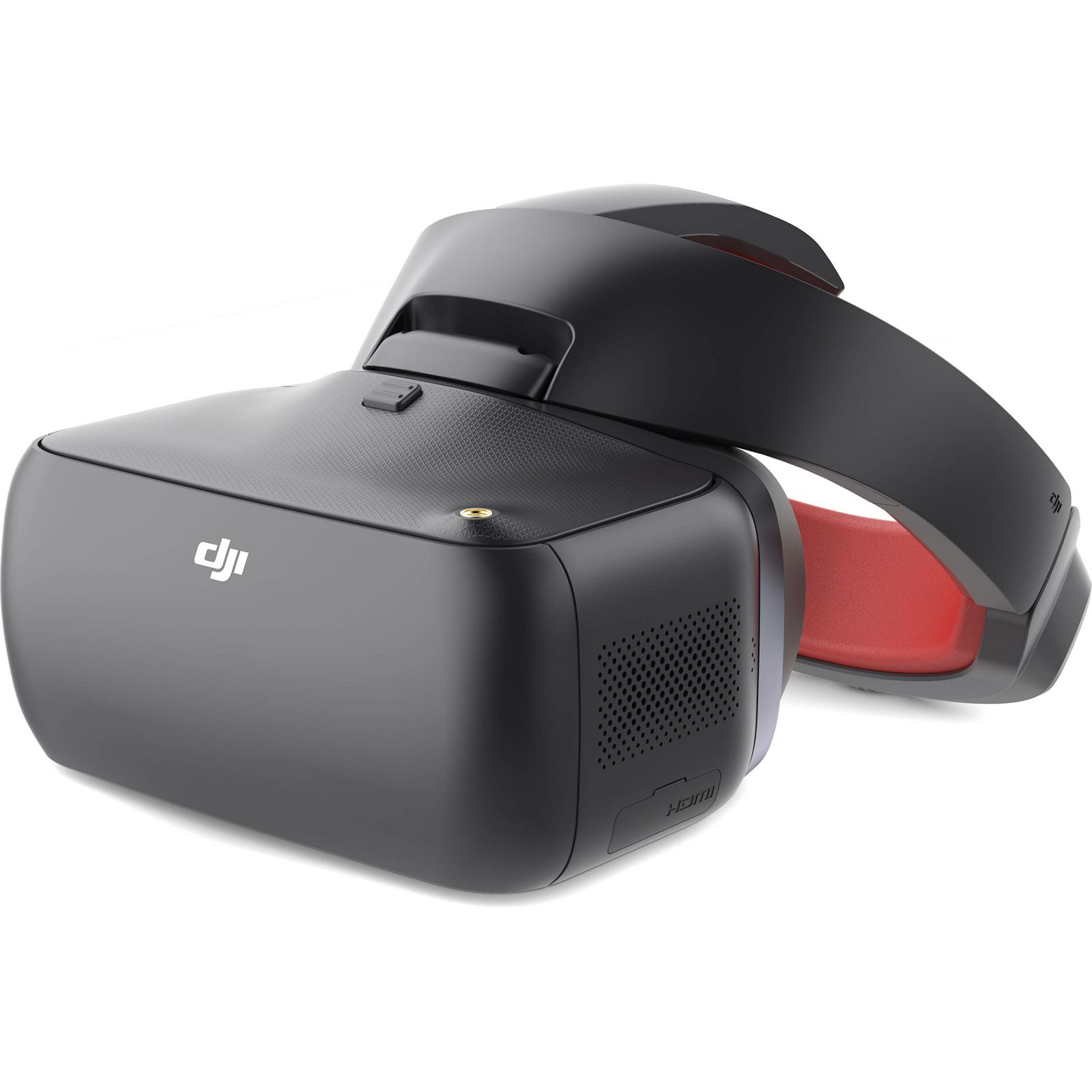

The DJI Goggles Racing Edition are equipped with high-performance displays and an ultra-low latency video downlink for use with the Mavic Pro, Spark, Phantom 4 series, and Inspire 2 aircrafts, giving you a real-time aerial FPV (first person view) experience. The Goggles can also be used to play HD videos, bringing you an immersive high-definition viewing experience.

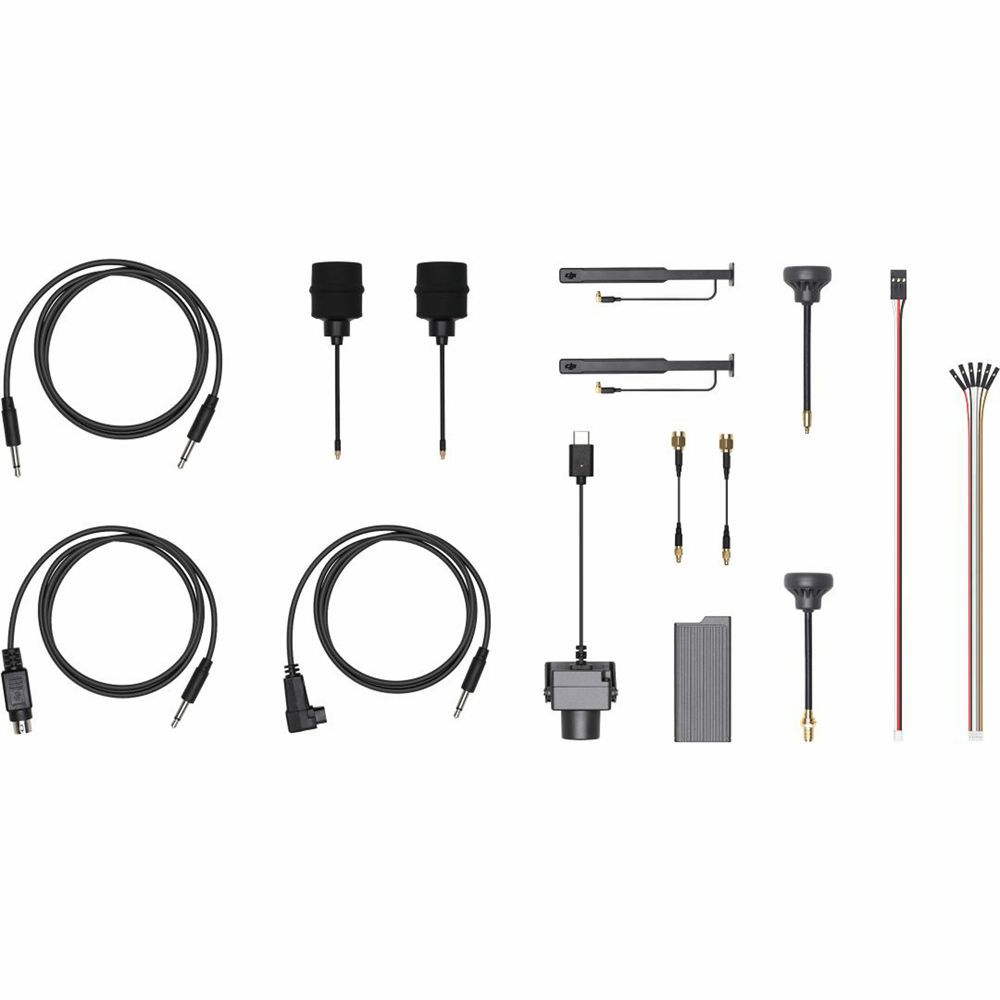

Precisely engineered for racing, DJI Goggles RE are compatible with an OcuSync video transmission module and a high-performance camera module (both sold separately), which work together to transmit digital video signal from up to 4.3 miles away with latency as low as 50 ms. The Goggles feature full flight setting control, two high-resolution screens, and Head Tracking. In addition, a redesigned metallic matte black visor and headband along with padding covered by high-quality red leather offer comfort and better light blockage.

Flight Control
DJI Goggles RE use bottom-up processing, which means a signal reception module isn't required. By connecting a third-party controller to the Goggles, users can directly control racing drones with an F3, F4, KISS, Naze, or any other supported flight controller.
On-Screen Display
Essential flight information including transmission resolution, battery level, and signal quality, is easily visible on screen.
Gimbal Control
In Head Tracking Gimbal mode, a user can control the gimbal camera just by putting on the Goggles and turning their head.
Digital & Analog Transmission
In addition to HD digital transmission, DJI Goggles RE offer analog transmission via their SMA port.
Video Options
The Goggles play videos in a variety of different formats including MP4, MOV, and MKV, so users have even more ways to experience immersive media. Users can also view 6K 360° panoramas.
Wide-Ranging Applications
Apart from compatibility with racing quads and fixed-wing model aircraft, the Goggles RE can be used with vehicles, robots, and industrial drones to provide clear FPV during cargo transportation, search and rescue operations, and even structural inspections.

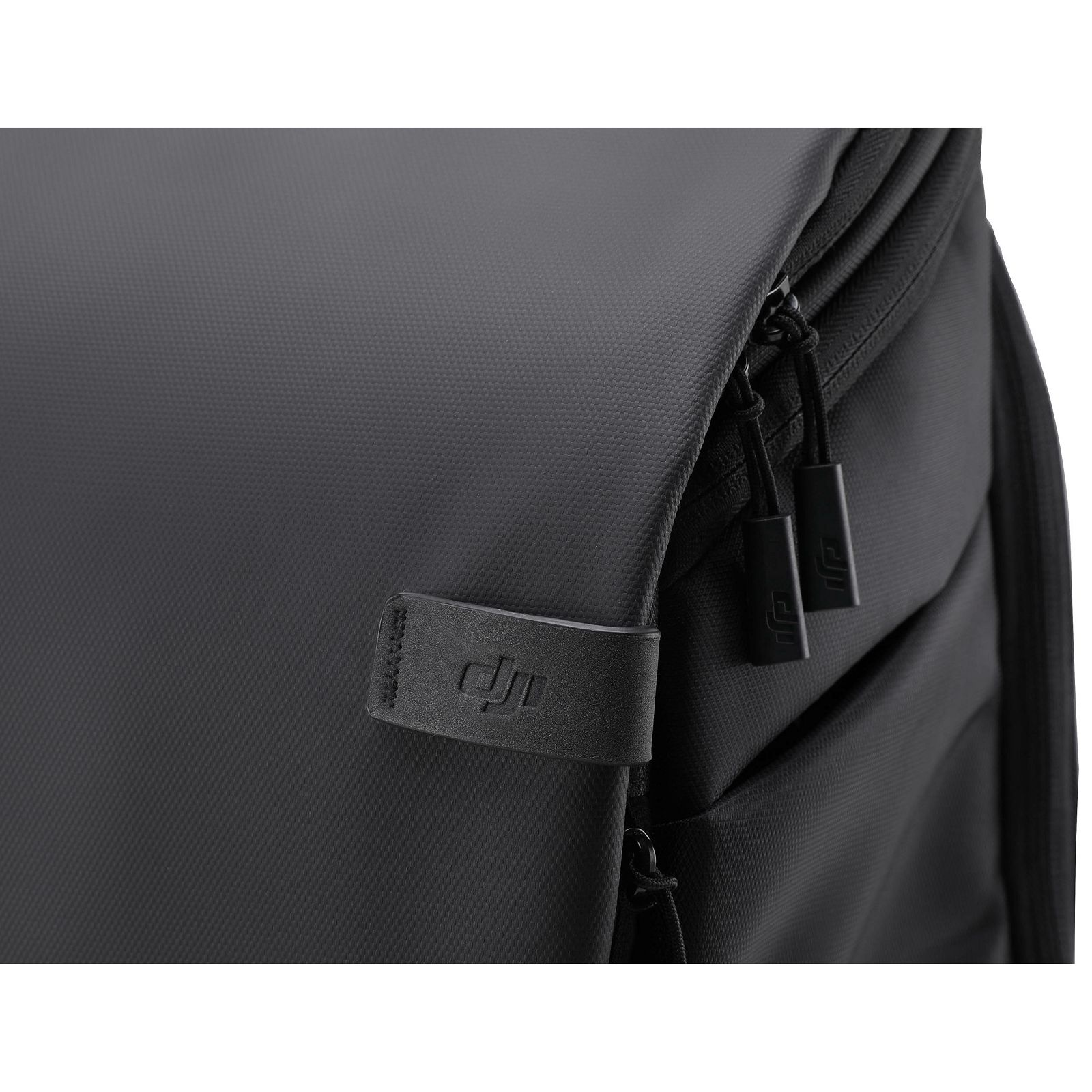

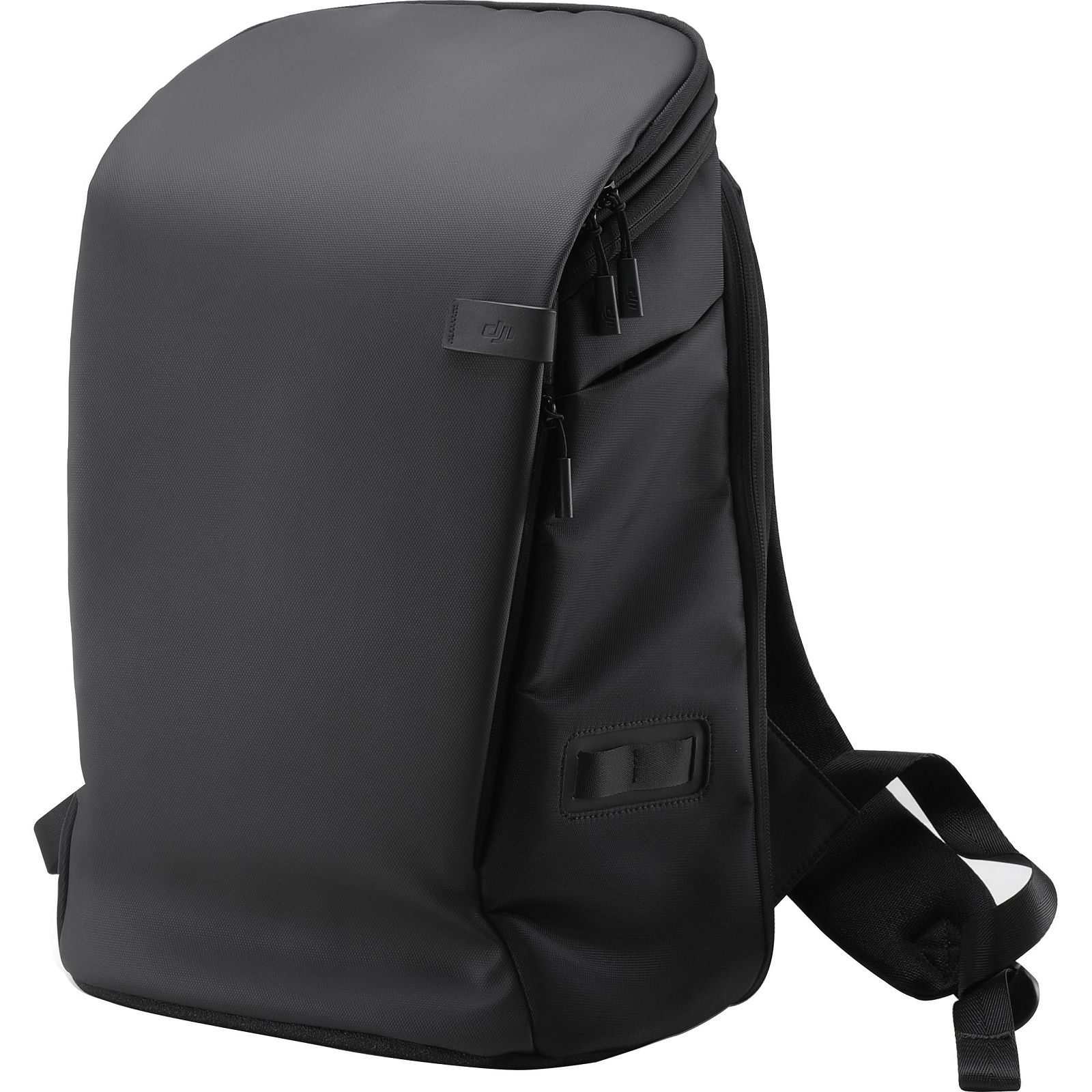

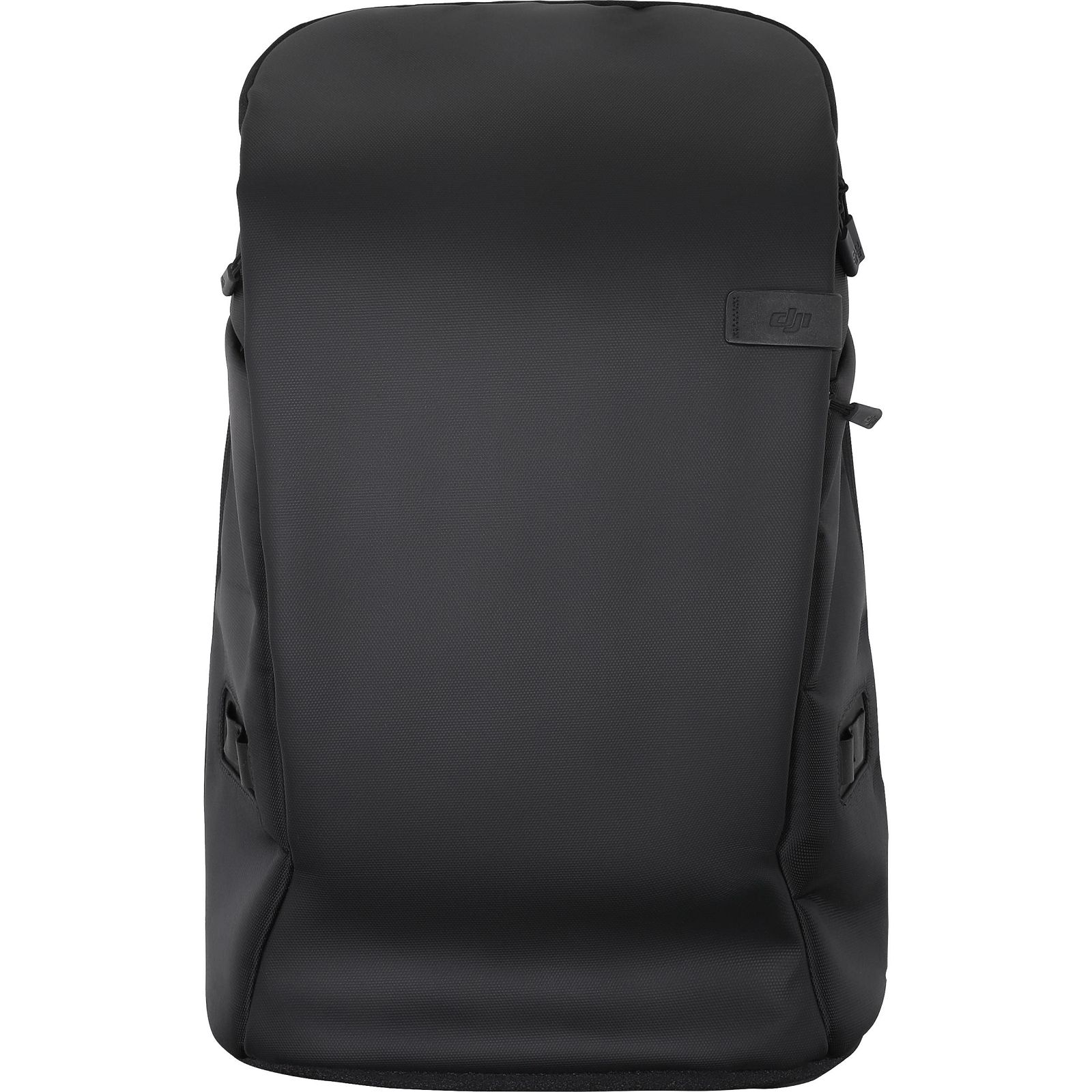

DJI Goggle Carry More Backpack

Lot of space and dividers allow you to customize the interior compartments to fit the gear you bring with you.

SPECIFIKACIJE:

DJI Goggles Racing Edition
Compatibility Mavic Pro, Spark, Phantom 4 series, and Inspire 2 aircrafts
Screen Size 2 x 5" / 12.7 cm
Screen Resolution 3840 x 1080 (single screen: 1920 x 1080)
Refresh Rate 60 Hz
FOV 85° (single screen)
Interpupillary Distance 58 to 70 mm
Frequency 2.4 GHz / 5.8 GHz
Transmitter Power (EIRP) 2.4 GHz: 25.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC)
5.8 GHz: 25.5 dBm (FCC); 12.5 dBm (CE); 18.5 dBm (SRRC)
Live View 1080p30, 720p60, 720p30
Video Latency 110 ms (Mavic Pro, 720p60, video format: 720p120)
150 ms (Spark, 720p30, video format: 1080p30)
150 ms (Phantom 4 Pro/Advanced Series, 720p60, video format: 720p60/720p120)
167 ms (Phantom 4, 720p30, video format: 720p60)
140 ms (Inspire 2+X5S, 720p60, video format: 1080p120)
190 ms (Inspire 2+X4S, 720p60, video format: 1080p60)
Video Format MP4 (H.264)
Supported Video Format MP4, MOV, MKV (Video format: H264; Audio format: AAC-LC, AAC-HE, AC-3, DTS, MP3)
I/O Interface 1 x SMA port
1 x Micro-USB port
1 x 3.5 mm audio port
1 x HDMI Type-D port
1 x microSD card slot
HDMI Support HDMI 1.4b, HDCP 1.4
Sensor Gyroscope, Accelerometer, Proximity sensor
Battery Capacity 9440 mAh
Battery Energy 35.44 Wh
Battery Operating Time 6 hours
Charger Input: 100 to 240 VAC, 50/60 Hz, 0.5 A
Output: 5 V = 3 A, 9 V = 2 A, 12 V = 1.5 A
Dimensions DJI Goggles RE Body: 7.7 x 6.1 x 4.3" / 19.5 × 15.5 × 11.0 cm
Headband (folded): 10.0 x 8.1 x 3.6" / 25.5 × 20.5 × 9.2 cm
Weight DJI Goggles RE Body: 1.1 lb / 502 g
Headband: 1.1 lb / 500 g
Packaging Info
Package Weight 4.6 lb
Box Dimensions (LxWxH) 11.0 x 11.0 x 8.0"

DJI Goggle Carry More Backpack
Carrying Case
Type Backpack
Recommended Use For FPV goggles
Carrying Strap Shoulder carrying straps
Closure Type Zipper
Additional Compartments Notebook, batteries, remote control, drone accessories
Compatibility Information
Designed for DJI Goggles Racing Edition
Packaging Info
Package Weight 3.0 lb
Box Dimensions (LxWxH) 19.0 x 13.0 x 7.25"

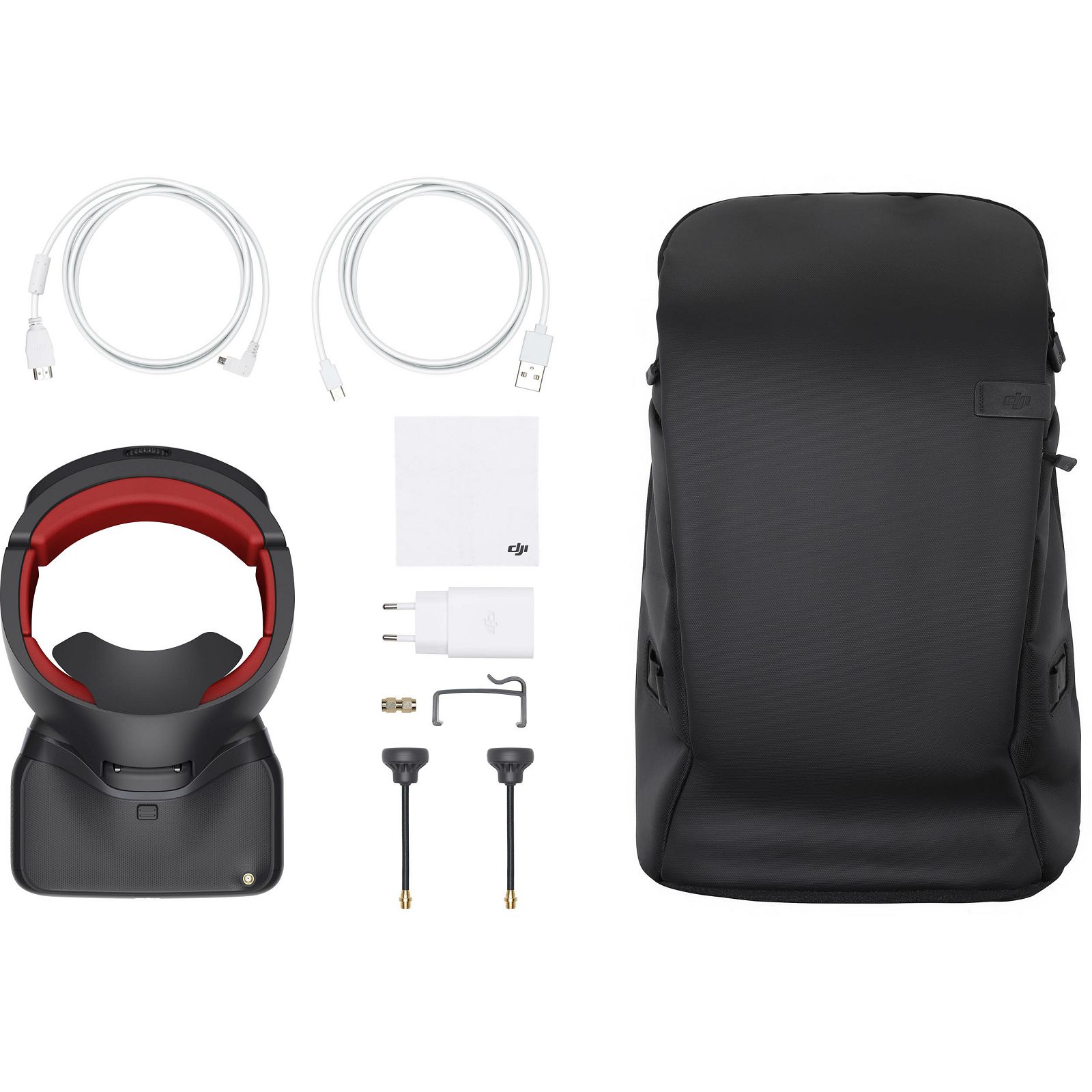

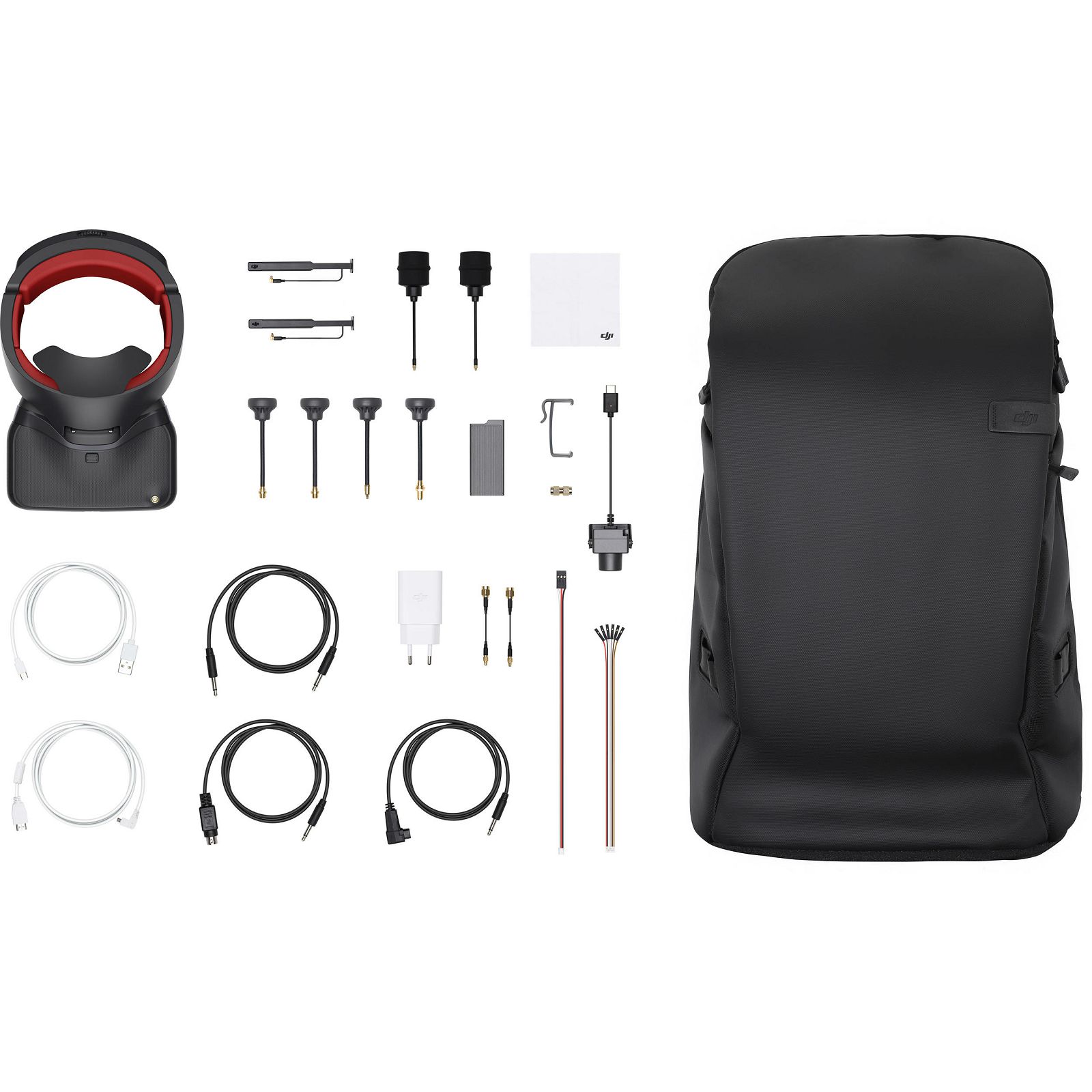

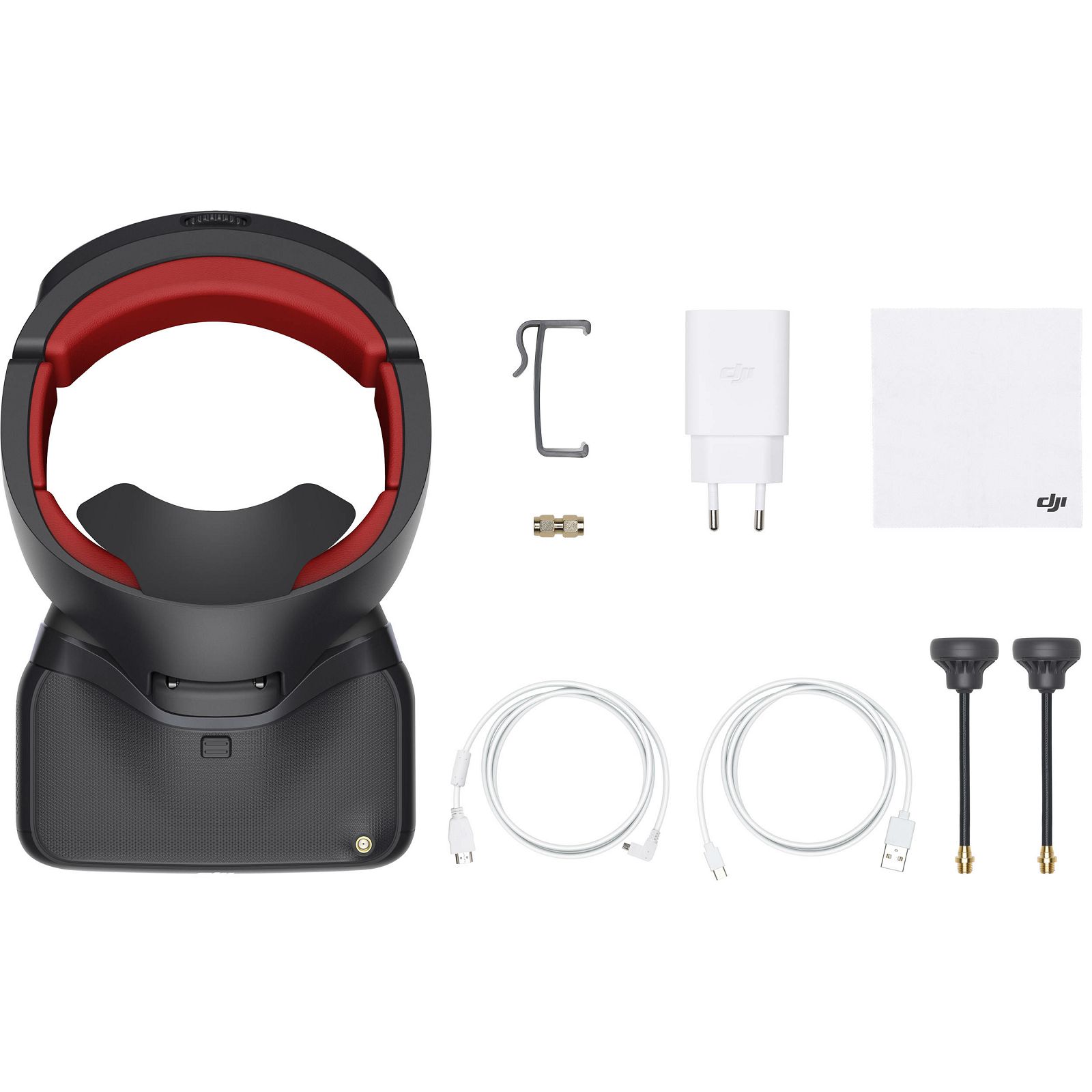

UKLJUČUJE:

DJI Goggles Racing Edition
Headband
2 x Pagoda Antenna
Reversed SMA Connector
Charger
Wire Clip
Micro-USB Cable
HDMI Cable
Cleaning Cloth
DJI Goggles Carry More Backpack
