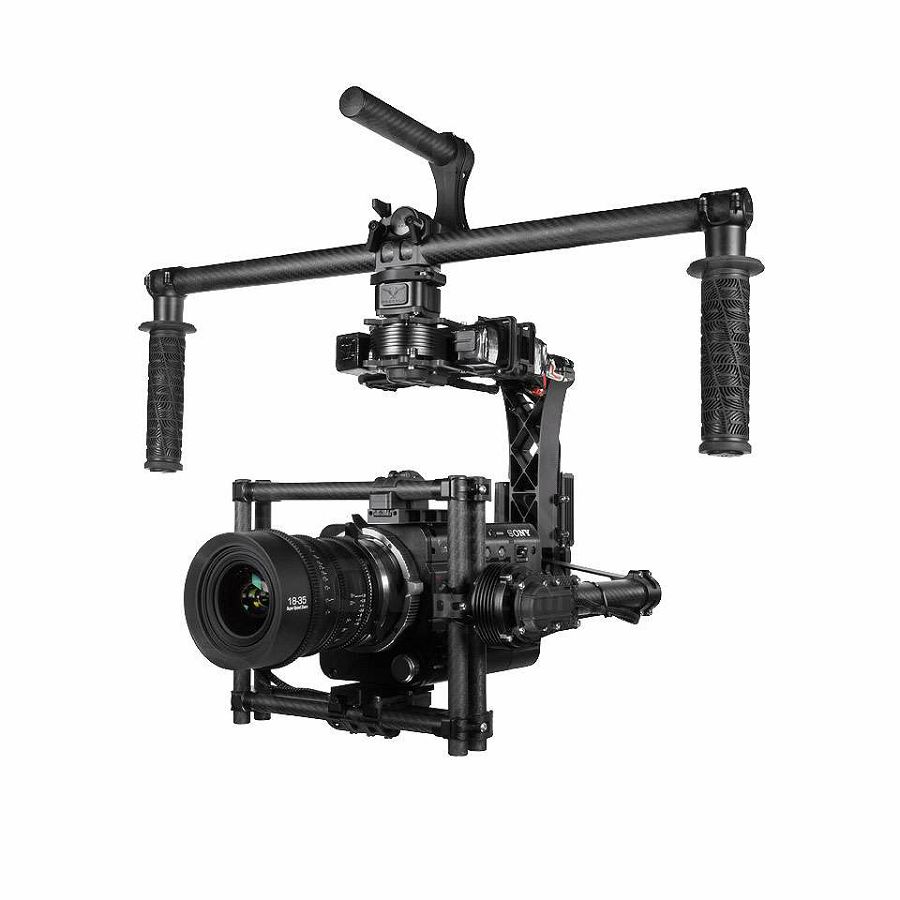

Freefly MoVI M15 3-Axis Motorized Gimbal Stabilizer with Hard Case & Spektrum Analyzer Kit Adventure Bundle

MoVI M15

Redefine camera control with the the tools found in the MIMC Bundle. An added value of nearly $1,400!
The MoVI M15 was designed for the most demanding cinema packages out there with no compromises made. Working with industry professionals, we created a system ready to work with large pro cameras like the Sony F55 and ARRI Alexa M.

MoVI M15 Features

Majestic Mode
Dual Pan Tubes
Inverted Mode
Full Camera Cage
Professional Cinema Payloads
Simplified fully tool-less balancing
Inverted mode for more comfortable eye level camera angle
Quick release top handle to allow for rapid adjustment

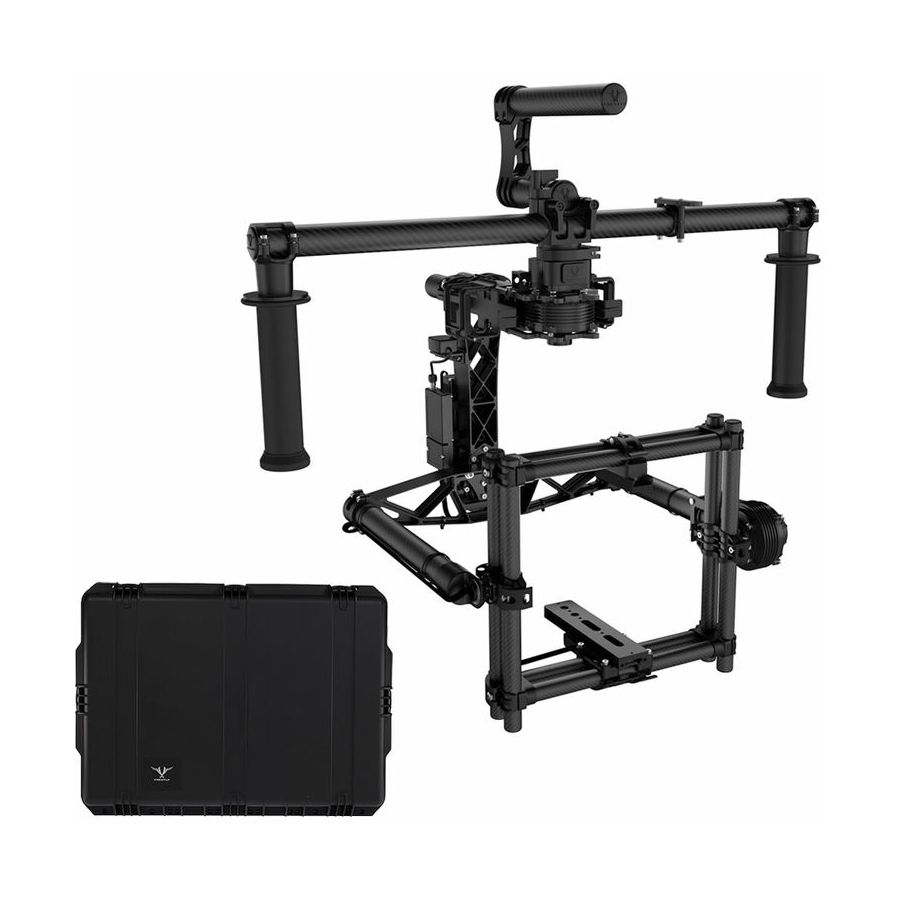

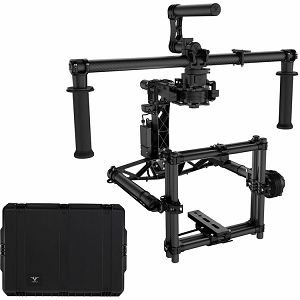

The MoVI M15 3-Axis Gimbal Stabilizer with Hard Case from Freefly is exclusively available as part of the MoVI M15 Summer Adventure Bundle and includes the MoVI M15 gimbal stabilizer and a Pelican hard case with a custom-cut foam interior designed to fit the stabilizer and accessories.

The MoVI M15 provides camera stabilization system using three motors and an IMU (inertial measurement unit) to detect and counteract unwanted movement along three axes: pan, tilt, and roll. In particular, it works to compensate for handshake or vehicle-induced vibration as well as reduce translation. It supports payloads up to 15 pounds, making it suitable for professional cinema cameras with lenses, as well as smaller camcorders and DSLRs.

The system supports single- or dual-operator control. In single user (Majestic) mode, the system's software intelligently differentiates unwanted shake or vibration from intentional movement, such as panning, while keeping the horizon level. Alternatively, you can have a dedicated operator (Stabilized Slew mode) with a remote control or RC transmitter who is in charge of camera pan, tilt, and roll. In this configuration, the camera will always point where the operator of the remote tells it to, independent of how the rig operator moves.

As with sled-style stabilizers, the camera should be balanced on the MoVI to ensure best performance. Once balanced, the MoVI will need to be linked via Bluetooth to an Android mobile device or a computer or tablet running Windows to finalize the configuration process.

Two lithium-polymer (LiPo) batteries and a charger are included, as well as a quick-release top handle for low-angle shooting or transporting the assembled rig on set. The MoVI M15 and its included accessories can be safely stored and transported inside the included Travel Case, which features a Pelican-made hard-shell exterior and custom-cut foam interior.





Supported Cameras

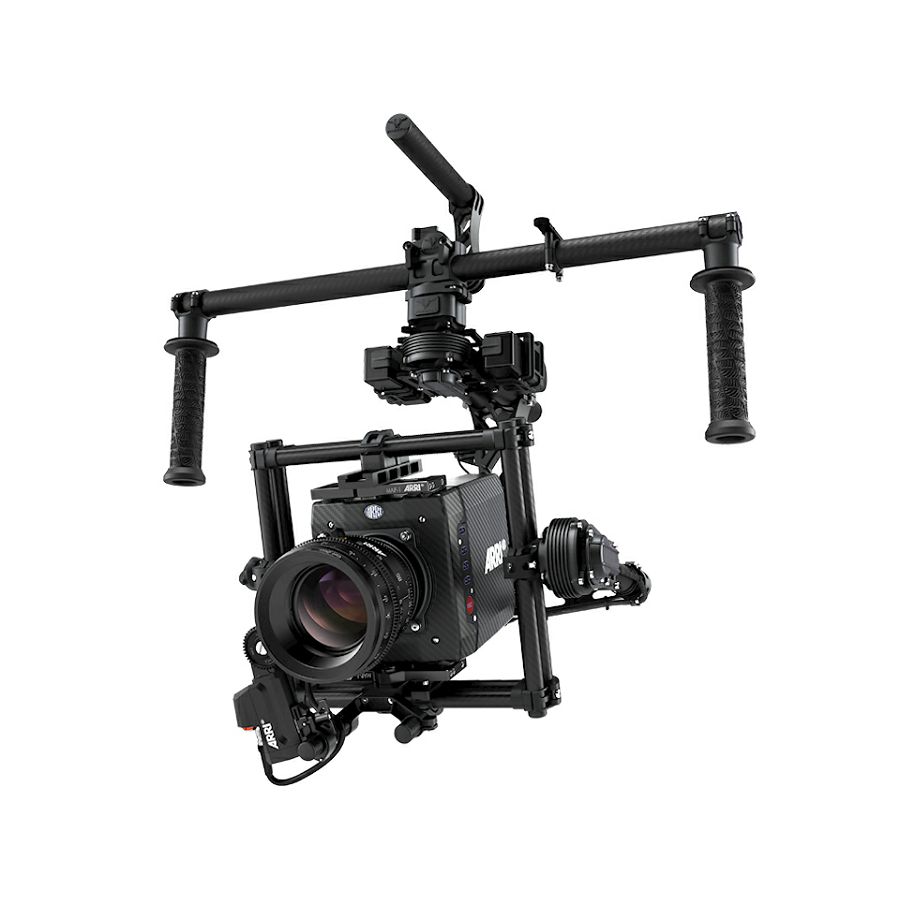

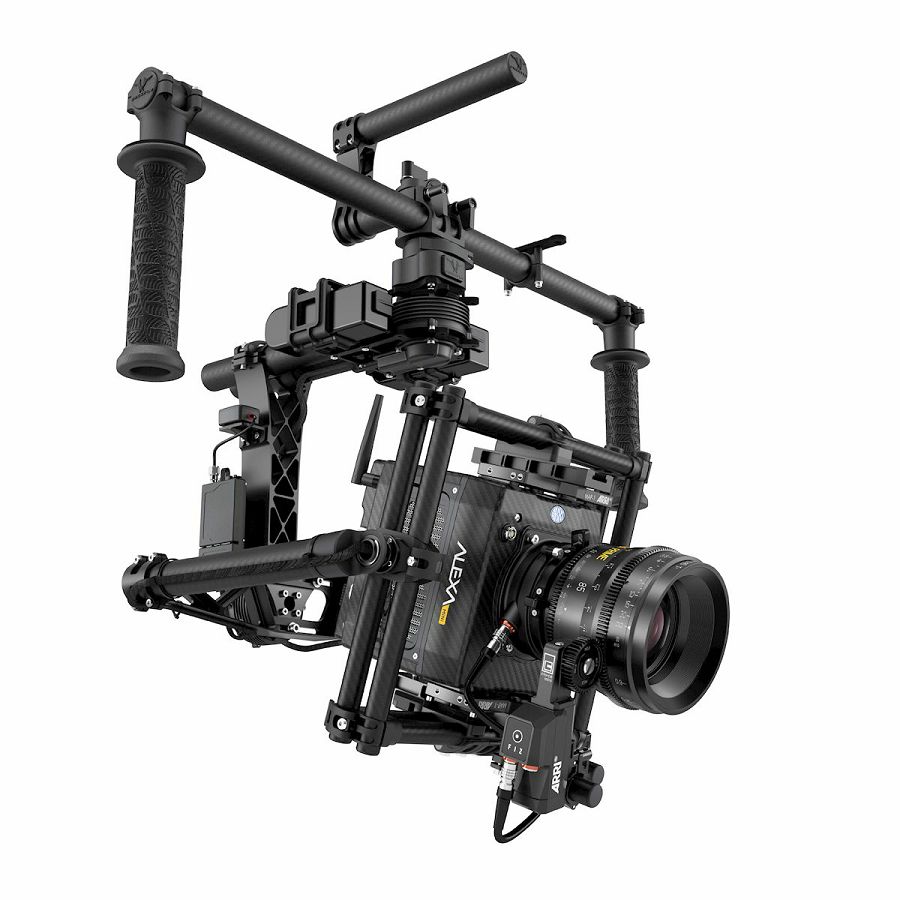

The MoVI M15 is designed to support payloads up to 15 pounds, making it suitable for professional cinema cameras with cinema lenses, as well as smaller DSLR cameras. Cameras that have been tested on the system include the ARRI Alexa M, Sony F5/F55, RED Epic/Scarlet, Canon C500/C300/C100, Sony FS700 (with limited choice of lenses), and the Blackmagic Cinema Camera / Production Camera 4K.
Lightweight Construction
Because the weight of your camera setup and the M15 is supported by your arms, the M15 is built to be as light as possible to keep while maintaining structural rigidity and robustness.
Remote Operation
The MoVI can be operated remotely either with a dedicated controller or using an RC aircraft transmitter (hand-held radio controller). It supports Spektrum DSMX and Futaba SBUS transmitters with at least six channels, including the Spektrum DX7s. Wireless range will vary depending on the transmitter used.
Three Control Modes
Majestic Mode: For single-operator use. In this mode the gimbal provides stabilization without counteracting operator-directed camera movements--the camera goes where you point the handles. This mode is ideal for accurate framing in tight situations
Stabilized Mode: Assumes no operator input, compensating for all movement it detects. Ideal scenarios for this mode include when the gimbal is mounted to a car or shots where the camera is moving but the camera angle remains fixed
Slew Stabilized Mode: For dual-operator control. In this mode an operator with a dedicated remote or RC transmitter controls pan, tilt, and roll independently of the gimbal handler's movements.
Drift Free Horizon
The gimbal uses a GPS-assisted IMU that when used outdoors with available satellite signals is able to minimize drift even when under acceleration--such as where the camera is mounted on a UAV or vehicle.
Freefly Configurator
The Freefly Configurator is a GUI that gives you control of your MoVI via a tablet, Windows, or Mac OSX device. The updatable firmware features auto tuning, motion booting, wireless tuning, and graphing via Bluetooth and has advanced customization including a user-adjustable shaky cam mode.
Silent Drive
The motors driving the gimbal have been designed to operate as quietly as possible to ensure you will be able to record sound without picking up any unwanted noise.
Translation Compensation
Making hundreds of adjustments per second, the software works to counteract translation--the bobbing up and down effect while running--when tracking a moving subject moving at high speed. In this situation, translation may be unavoidable, but at least the subject will remain in-frame.
Shot Recorder
Keeps a record of the camera position (where GPS is available), height, camera pan, tilt, and roll so that the shot can be recreated later or to help Visual Effects align the live action shot with other elements in a CG composite.
Third-Party Mounting
Using separately available mounting hardware it is possible to mount the MoVI on cranes, jibs, Steadicams and similar vest-supported stabilizers (where it corrects for angular error), and other camera support hardware. It has also been verified to work on an Easyrig.
Remote Firmware Updatable
You can upgrade the gimbal to new software features as they are released by Freefly yourself, without having to send the device in for a factory update.
Custom Direct Drive Motors
The MoVI system uses motors that were custom made for the gimbal rather than re-purposing off-the-shelf parts.
User Adjustable "Shakey Cam"
Want an organic hand-held look? The MoVI provides variable noise filters that allow you to effectively dial in a custom amount of shake to help you achieve the effect you are after.
Additional Features
Custom designed, precisely calibrated sensors
Fully tool-less balancing
Second battery cage of holding a battery dedicated to powering accessories
Handles can be switch from low to high modes with flip of a lever
Quick-release top handle
M15 Hard Case
Pelican hard shell case
Custom-cut foam interior
Retractable trolley handle
Shock-absorbing interior
Watertight, airtight, and dustproof
Chemical resistant and corrosion proof

FREEFLY MIMIC
Designed to replace a joystick when operating MoVI gimbals, FREEFLY's MIMIC allows you to intuitively control your MoVI by simply moving your hands. Just imagine a flight simulation system -- it works just like one. When you want to move your MoVI left, just steer the MIMIC left; when you want to move up, tilt up; and -- it also features roll capability, which gives the feeling of actually flying the MoVI, especially with a monitor attached. Moreover, when there's a monitor attached, you feel very much in sync with the system, as your body follows your eyes instinctively.

The MIMIC is compatible with the M5, M10, and M15 MoVI gimbals. Included with it are a transmitter, receiver for your MoVI, monitor mount, and a small USB battery.

Key Features
Control your MoVI by simply moving your hands (replaces controller joystick)
Pan, tilt, and roll movement
Compatible with the M5, M10, and M15 MoVI gimbals
Transmitter, receiver, monitor mount, and battery included

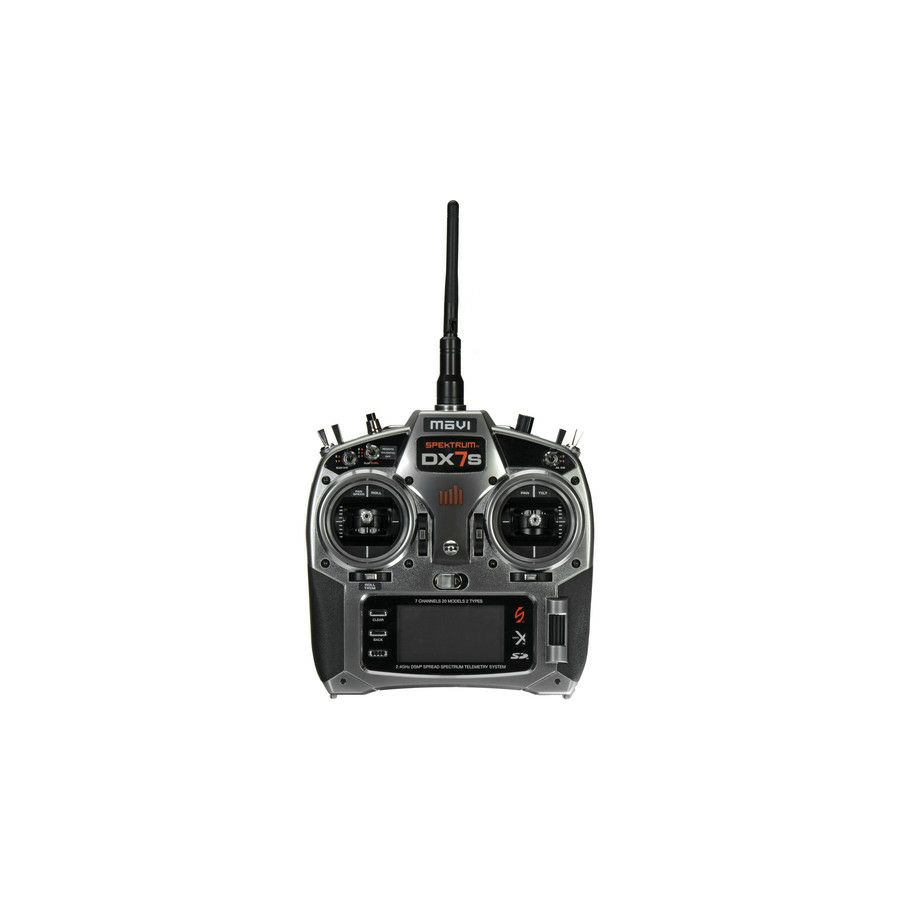

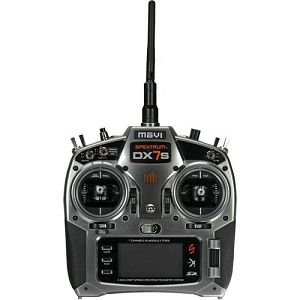

FREEFLY Spektrum DX7s Transmitter for MOVI
The Spektrum DX7s Transmitter for MOVI from Freefly lets you take advantage of the Dual Operator Mode with your MOVI 3-Axis Gimbal Stabilizer, allowing one operator to hold the gimbal while the other remotely controls camera pan, tilt, and roll. The 7-channel handheld controller works on the 2.4GHz frequency band, utilizing DSM2/DSMX technology. It features an ergonomic design with a balanced weight and rubber grips for comfortable handling, and quad-bearing gimbals for precise control. It offers four mode configurations as well as a built-in telemetry feature that gives you real-time information on battery voltage, signal quality, and more.

The DX7S is equipped with Spektrum AirWare software, which features a SimpleScroll interface making navigating menus and changing settings as simple as "roll and click." The AirWare software can be updated using the included 128MB SD card. The transmitter is powered using an included 4.8V Ni-MH battery. An AC battery charging cable is also included.

7-channel transmitter
Enables remote control of pan, tilt, and roll of a MOVI 3-Axis Gimbal Stabilizer
Operates on 2.4GHz band
Ergonomically designed case with comfortable rubber grips
Adjustable stick length and tension
Quad-bearing gimbals
User-adjustable mode configurations (1, 2, 3 or 4)
User-assigned switch functions
126 x 64 LCD screen
AirWare software with intuitive SimpleScroll programming interface
AirWare software can be updated using the included 128MB SD card
4.8V 2000mAh NiMH battery included
Li-Po battery compatibility
Language select (English, Italian, French, Spanish, or German)
High-speed 11ms frame rate with 2048 resolution

SPECIFIKACIJE:

FREEFLY MoVI M15 3-Axis Motorized Gimbal Stabilizer with Hard Case

Electrical and Mechanical
System Type 3-axis gyro stabilized
Pan Range 360°
Tilt Range ±180°
Roll Range ±180°
Slew Rates 0 to 150°/sec
Interface Bluetooth connection to Windows/Android GUI
Battery
Chemistry Lithium-polymer
Capacity 2.6 Ah
Voltage 14.8 VDC
Maximum Continuous Discharge 3 C (7.8 A)
Maximum Burst Discharge 5 C (13 A)
Maximum Charge Voltage 4.2 V per cell
Minimum Discharge Voltage 3.0 V
Dimensions (LxWxH) 3.9 x 1 x 1.2" / 10.0 x 2.5 x 3.0 cm
Weight 7.1 oz / 200 g
General
Payload Maximum: 15 lb / 6.8 kg
Power Requirements 9 to 18 VDC (3S or 4S LiPo)
Dimensions (LxWxH) Camera Cage: 7.99 x 7.99 x 7.76" / 20.3 x 20.3 x 19.7 cm
M15 Hard Case: 31.3 x 20.4 x 12.2" / 79.5 x 51.8 x 31 cm
Weight MoVI M15: 5.4 lb / 2.47 kg
M15 Hard Case: 29 lb (13 kg)
Packaging Info
Package Weight 36.0 lb
Box Dimensions (LxWxH) 32.1 x 20.6 x 12.5"

FREEFLY MIMIC

Compatibility Compatible with the M5, M10, and M15 MoVI gimbals
Movement Axes Pan, tilt, and roll
Packaging Info
Package Weight 2.55 lb
Box Dimensions (LxWxH)

FREEFLY Spektrum DX7s Transmitter for MOVI

Number of Channels 7
Modulation DSM2 / DSMX
Band 2.4 GHz
Modes Selectable 1, 2, 3, or 4
Model Memory 20
Battery 1 x 4-cell 2000 mAh, Ni-MH
Packaging Info
Package Weight 3.95 lb
Box Dimensions (LxWxH) 14.4 x 11.2

MoVI M15 Specifications

Weight: 5.4lb / 2.47kg
Camera cage dimensions: 203mm(L) x 203mm(W) x 197mm(H)
Maximum payload: 15lb / 6.8kg with compatible camera / lens combinations

Freefly MIMIC Controller (Beta Program)

When the MoVI launched in 2013, Freefly enabled unrestricted camera movement in a way that wasn't possible before. This year camera control technology leaps forward with the MIMIC. With this new, intuitive MoVI Control method, there are no joysticks, knobs or wheels. Just tilt, pan or roll and the MoVI will follow. Move the MIMIC and the MoVI will follow. It's so instant and organic that operators can execute complex moving shots with precise framing after just minutes of practice.


Spektrum Controller

Unlock the added functionality of Dual Operator Mode on the MoVI with the Spektrum Controller. Allow one operator to concentrate on framing while the other focuses on maneuvering for unrestricted and incredible camera moves.

Besides advanced DSM2/DSMX technology and an impressive list of programming features, it boasts the finest ergonomics in its class, built-in telemetry, the intuitive SimpleScroll programming interface, a large LCD screen and the latest Spektrum software via the SD card Data slot.

M15 Hard Case

Protect your MoVI M15 with a case designed to meet the demands of professional filmmakers. Guard against hazards on and off set with the custom-cut foam insert purpose-built to store your MoVI, batteries, tablet, accessories & more. All of this is enclosed in an industry-standard Pelican Storm case.

Features:

Watertight, airtight, dust-proof, crush-resistant, chemical resistant, and corrosion proof
Retractable extension handle and polyurethane wheels
Lockable
Pelican Limited Lifetime Guarantee

MoVI M15 + MIMIC Bundle Includes:

MoVI M15
2 Batteries
Battery Charger
MoVI Dock
Freefly MIMIC Beta Program
Spektrum Controller
M15 Hard Case

SKU: 950-00042

KOMPLET UKLJUČUJE:

MoVI M15 3-Axis Motorized Gimbal Stabilizer with Hard Case
2 x LiPo Battery
LiPo Battery Charger with Leads
Dock for C-Stand
Top Handle
M2.5 Hex Driver
M3 Hex Driver
MoVI M15 Hard Case
Limited 1-Year Warranty on Gimbal Hardware (Batteries not Covered)

MIMIC
Carbon Fiber Handlebars
Transmitter
Receiver for MoVI
Monitor Mount
USB Battery
Limited 1-Year Warranty (Battery Not Covered)

Spektrum DX7s Transmitter for MOVI
128MB SD Card
4.8V 2000mAh Ni-MH Battery
AC Battery Charging Cable with Interchangeable Wall Plugs
Limited 1-Year Warranty

Kamera nije uključena
