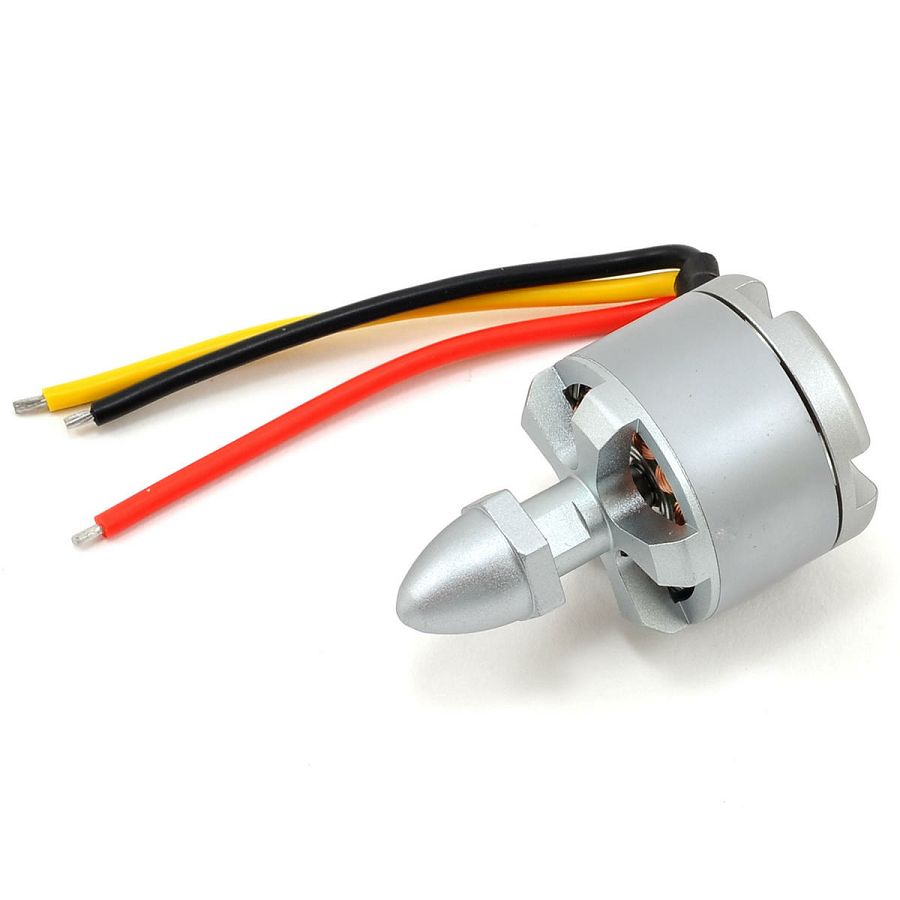

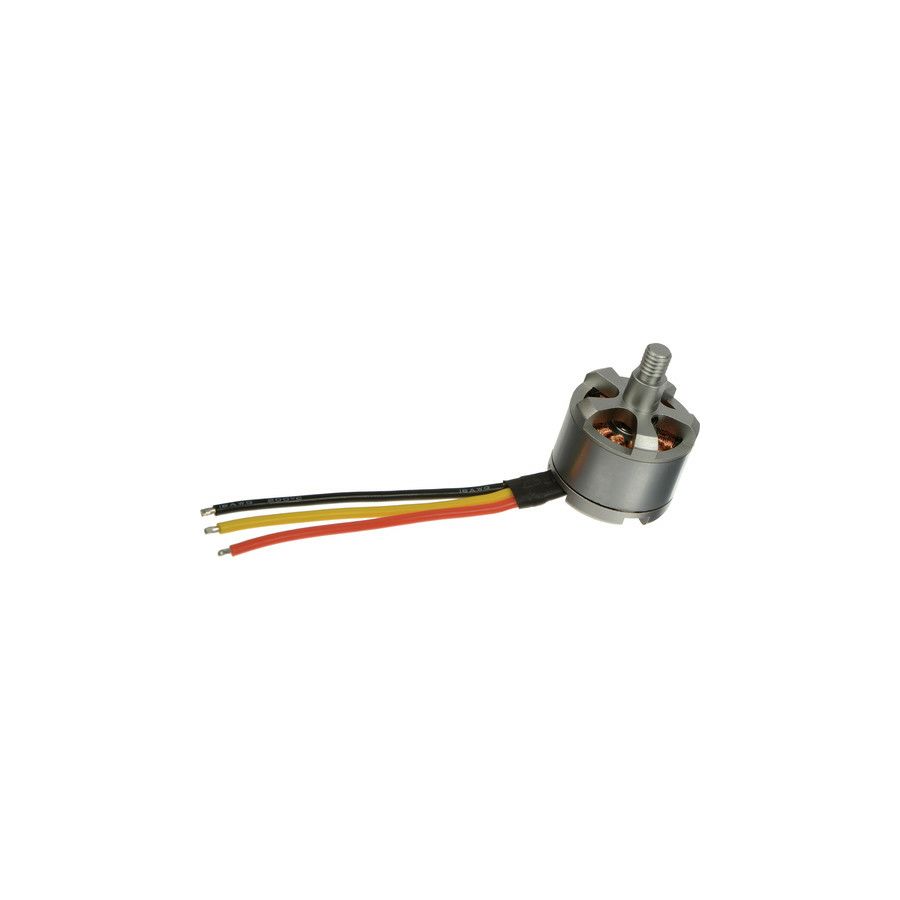

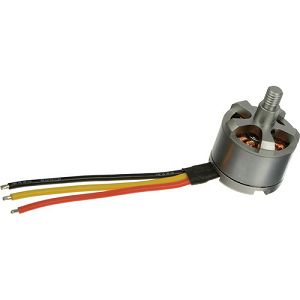

DJI Phantom 2 Vision Spare Part 5 Motor ( CCW )

Counterclockwise Prop Threading
920 Kv, 12N, 14P Configuration
For Phantom 2 Vision Only

The Phantom 2 Vision Motor with counterclockwise threading (CCW) is for propellers that use the same rotational direction. The Phantom 2 Vision has four motors total, two clockwise (CW, Part 6) and two counter-clockwise (CCW, Part 5). It is important to replace the motor with one of the same thread orientation to ensure the props do not come loose during flight.

This part is for the Phantom 2 and Phantom 2 Vision models only, and may not work correctly if installed in other aircraft models.

SPECIFIKACIJE:

Motor Velocity Constant 920 Kv
Configuration 12N, 14P
Maximum Current 17 A
Idle Current 0.3 A
Maximum Output Power 140 W
Supported Batteries LiPo 3S 3-Cell
Mounting Hole 0.63 / 0.75" (16 / 19 mm)
Diameter 1.1" (28 mm)
Length 0.9" (24 mm)
Weight 1.8 oz (50 g)

Package Weight 0.15 lb
Box Dimensions (LxWxH) 3.9 x 1.3 x 0.7"
