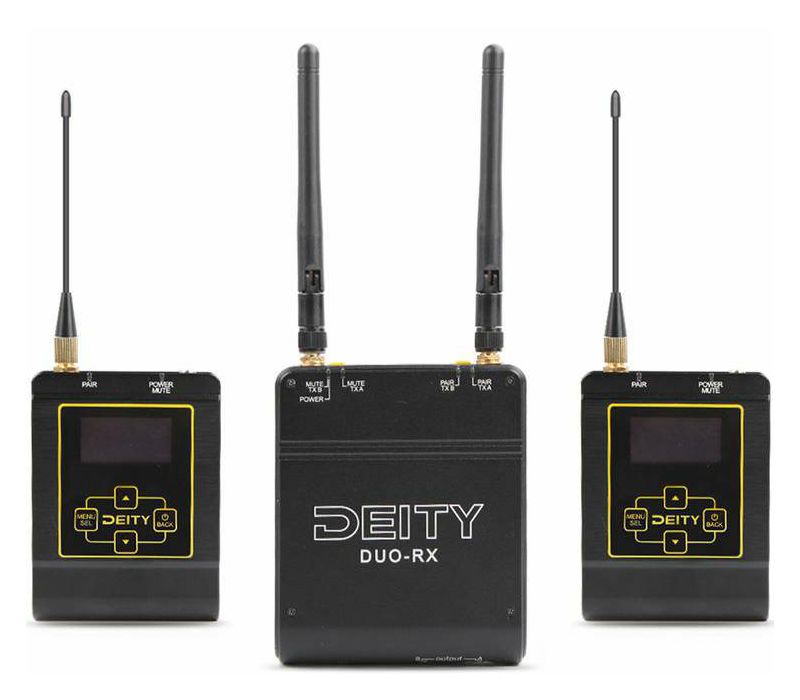

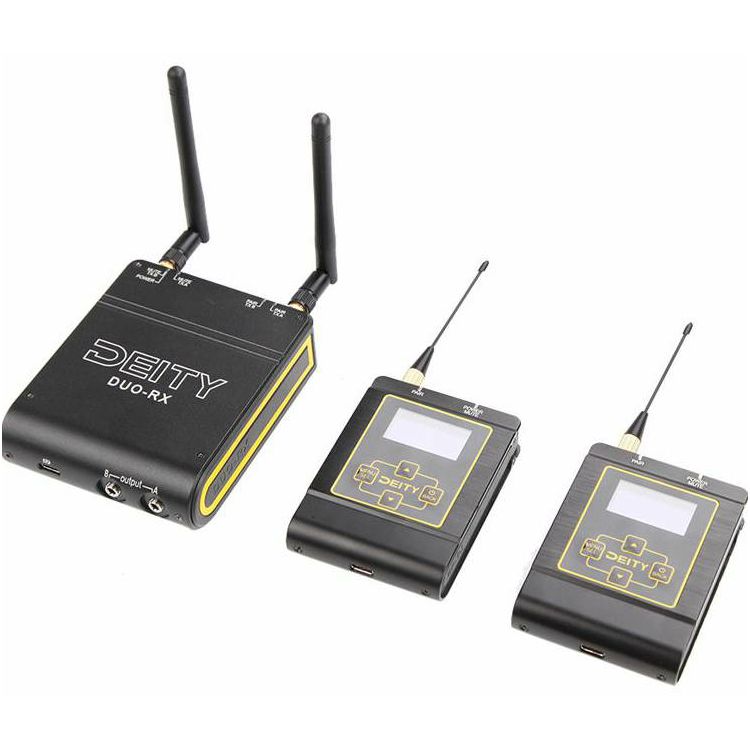

Deity Connect Dual-Channel True Diversity Wireless System

ZNAČAJKE:

Leave the UHF band behind and break into pro-level 2.4 GHz operation with the sound bag-ready Deity Microphones Deity Connect, a dual-channel, true diversity wireless system offering a host of high-end features and everything you need to produce broadcast-quality sound for your next film shoot, television project, or video production gig. Whether you're tasked with electronic news gathering, recording interviews, or capturing speeches at conferences, the Deity Connect empowers you with the advanced technology, rugged durability, and extensive customization requisite for dependable, high-grade results.

Knowing that a strong and solid audio link is crucial for professional results, the Deity Connect was designed as a bidirectional transceiver system with adaptive frequency hopping, "Listen-Before-Talk" stream repair, and encrypted, uncompressed digital signal integrity. The receiver sports four antennas—two internal dipole horizontal antennas, and two external elbow antennas—to allow versatile positioning and deliver uninterrupted signal reception. Through its OLED screen and straightforward buttons, the receiver provides comprehensive remote control of each transmitter; no more walking over to your subject to adjust transmitter settings! There are two gain-adjustable 3.5mm TRS outputs, which can be utilized in any of the three output modes—Balanced XLR mode sends a separate audio channel as a balanced signal to each output jack, DSLR Blended mode mixes both audio channels to one output and turns the other jack into a headphone output, while Stereo mode routes a stereo feed from each transmitter to separate outputs.In addition to having the same OLED screen and user-friendly menu navigation as the receiver, the transmitters grant thorough control of your signal quality via automatic or manual RF power adjustment, switchable analog limiters, low-cut filters, and high-frequency boosts; tame peaks, reduce rumble, enhance clarity, and more! The locking 3.5mm TRS input jack on each transmitter conforms to the Sennheiser-standard pin configuration, and can be set to accept a mono mic signal or a stereo line-level source for camera hopping. The transmitters and receiver boast 10 hours of operating time at 100mW (more time at lower mW settings) via internal lithium batteries, which recharge in about an hour via USB Type-C connections. If you want efficiency and versatility without sacrificing quality, make the Deity Connect your wireless audio solution.

Applications
Film, video, and television production
ENG (Electronic News Gathering)
Interviews
Conferences
Trade shows

System Feature
2.4 GHz ecosystem with proprietary advancements for strong audio linkup while coexisting with other devices in the same frequency band
Bidirectional transceiver system is constantly scanning and mapping out the 2.4 GHz band, coordinating and planning the next 70 frequency hops to avoid RF interference
"Listen-Before-Talk" mechanism detects RF interruption then adds missing audio and data into the stream without increasing system latency
Dual true diversity design—as found in commercial-grade Wi-Fi and high-end drones—ensures reliable signal delivery
Encrypted 24-bit / 48 kHz signal transmission
Easy pairing and configuration
Powered via internal lithium batteries for up to 10 hours at 100mW RF output power
Recharges via USB Type-C connections in about an hour
Up to 500 battery cycles
19 ms latency

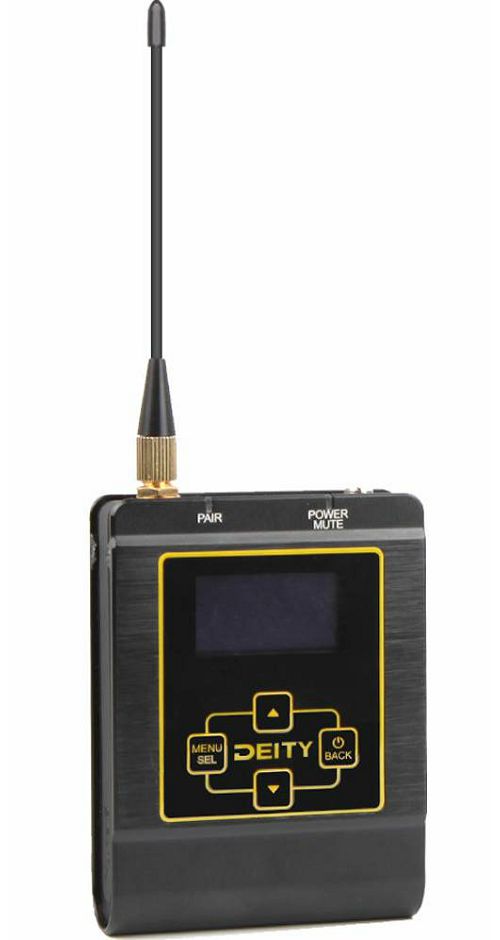

BP-TX Transmitter
Compact, durable brushed-aluminum housing
SMA antenna connector
1/4"-20 mounting point for the belt clip
Two multicolor LED alert lights
Daylight-bright, high-resolution OLED screen shows statuses of all major features and real-time VU metering on the home screen
Auto/manual RF power output adjustment from 10 to 100mW
Automatic RF power mode increases battery life by never using more power than the system needs
Latching mute switch
Guardrail limiter
75/150 Hz low-cut filters
7 to 20 kHz high-frequency boost in 1 dB steps
Assignable unique user ID
Screen and button lock
Sennheiser-standard locking 3.5mm TRS input
Accepts mic- or line-level signals
Selectable stereo line-level input mode
Transmits to one receiver

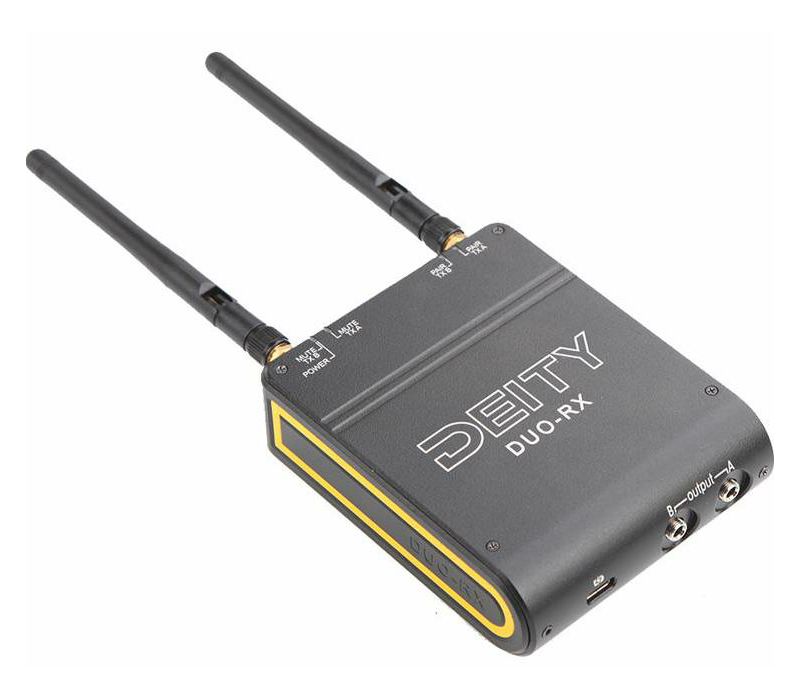

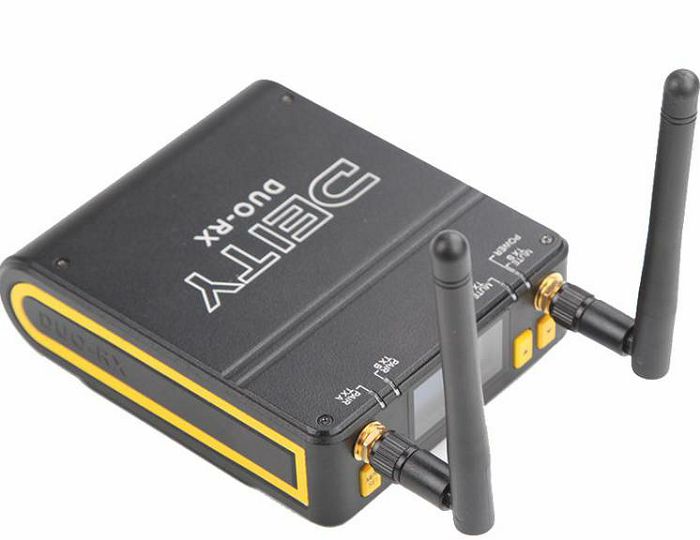

DUO-RX Receiver
Dual true diversity antenna arrays for a quad antenna setup
Removable SMA elbow antennas allow user upgrades to clover antennas, directional antennas, or antenna splitters
Screen, buttons, and antennas face up in a sound bag, while USB Type-C and audio outputs are on the bottom for easy cable management
Lightweight at just 8.7 ounces
Daylight-bright, high-resolution OLED screen shows real-time VU metering, transmitter battery level, and more on the home screen
Convenient remote control of every audio adjustment on each transmitter
Easy firmware updates
Two locking 3.5mm outputs with multiple output modes
1/4" and 3/8" mounting points

Two omnidirectional lavalier microphones with tie clips and locking 3.5mm TRS plugs
Foam windscreens for reduction of wind noise and plosives
Two XLR to 3.5mm audio cables for receiver-to-recorder connections
DSLR locking audio cable
DUO-RX cable for synchronizing multiple Deity Connect systems
USB Type-C charging cable
USB Type-C to USB Type-A firmware update adapter
Two straight transmitter antennas and two elbow-style receiver antennas
Cold shoe to 1/4"-20 adapter for easy camera mounting
Waterproof hardshell case with custom foam insert

SPECIFIKACIJE:

System
Wireless Transmission Digital 2.4 GHz
Number of RF Channels 18
Included Transmitters 2 x Bodypack with Microphone
Diversity True Diversity
Max Operating Range 300' / 91.4 m
Audio Codec PCM
Sample Rate/Resolution 48 kHz / 24-Bit
Latency 19 ms
Encryption Yes
Modulation Proprietary

Receiver
Form Factor Portable (Bag Suitable)
Mounting Options Belt Clip, Shoe-Mount (with Included Hardware)
Antenna 2 x External, SMA (Top-Mount)
Number of Audio Channels 2
Audio I/O 2 x 1/8" / 3.5 mm TRS Female Balanced/Unbalanced Line Output (Lockable)
Gain Range -21 to +15 dB (3 dB Steps)
Frequency Response 50 Hz to 20 kHz
Network I/O None
Network Protocols None
Word Clock I/O None
USB Port 1 x USB Type-C (Bus Power, Charging)
Approximate RF Sensitivity -86 dBm
RF Output Power 100 mW
Power Requirements Battery, USB Bus Power
Battery Type 1 x Built-In Rechargeable (Included, Replaceable)
Approx. Battery Life 10 Hours (Lithium Rechargeable)
Display & Indicators 1 x OLED (AF Level, Battery Status, High-Pass Filter, Menu Navigation, Mute, RF Level)
1 x LED (Mute, Power)
1 x LED (Sync)
Housing Aluminum
Dimensions 3.4 x 4.4 x 1.3" / 87.4 x 113.0 x 33.5 mm (without Antennas)
Weight 8.7 oz / 248.0 g

Transmitter
Form Factor Bodypack with Microphone
RF Output Power Up to 100 mW (Switchable)
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Balanced/Unbalanced Input (Lockable)
Pad None
Muting Mute Switch
Gain Range -51 to +21 dB
Signal ProcessingHigh-Pass Filter:
75 Hz
High-Pass Filter:
150 Hz
HF Boost:

Antenna 1 x External, Detachable
Power Requirements Battery, USB Bus Power
Battery Type 1 x Built-In Rechargeable (Included, Replaceable)
Approx. Battery Life High:
10 Hours (Lithium Rechargeable)
Battery Cycle Count Up to 500 Cycles
USB Port 1 x USB Type-C (Bus Power, Charging)
Display & Indicators 1 x OLED (Audio Level, Battery Status, Mute, Signal Strength)
2 x LED (Mute, Power)
2 x LED (Sync)
Housing Aluminum
Dimensions 2.5 x 3.7 x 1.0" / 63.0 x 92.8 x 26.0 mm (without Antennas)
Weight 5.2 oz / 148.0 g

Microphone
Form Factor Lavalier
Sound Field Mono
Operating Principle Pressure Operated
Transducer Electret Condenser
Diaphragm 0.41" / 10.4 mm
Polar Pattern Omnidirectional
Frequency Range 50 Hz to 20 kHz
Sensitivity -40 dBV/Pa
Dynamic Range 110 dB
Output Connectors 1 x 1/8" / 3.5 mm TRS Male Balanced (Lockable)
Cable Length 5.25' / 1.6 m
Operating Voltage 1.5 to 3 V

Packaging Info
Package Weight 6.23 lb
Box Dimensions (LxWxH) 14.0 x 11.5 x 4.26"

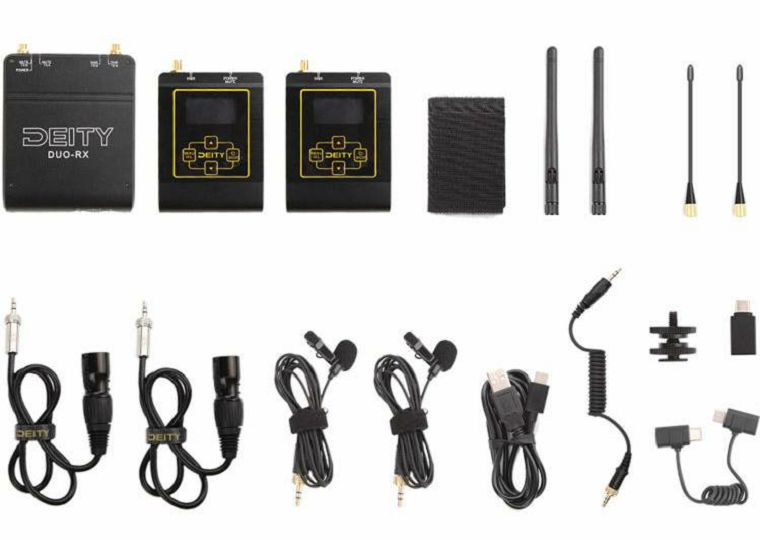

UKLJUČUJE:

Deity Microphones Deity Connect Dual-Channel True Diversity Wireless System (2.4 GHz)
2 x Lavalier Microphones
2 x XLR to 3.5mm Cables
DSLR Locking Audio Cable
DUO-RX Sync Cable
USB Type-C Charging Cable
USB Type-C to USB Type-A Firmware Update Adapter
2 x Transmitter Antennas
2 x Receiver Elbow Antennas
2 x Foam Windscreens
2 x Lavalier Tie Clips
Cold Shoe to 1/4"-20 Adapter

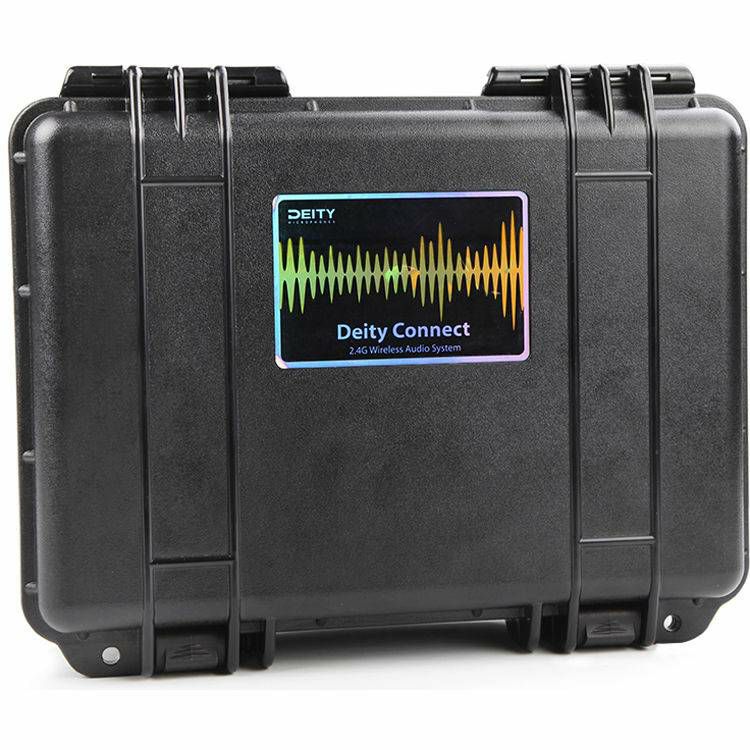

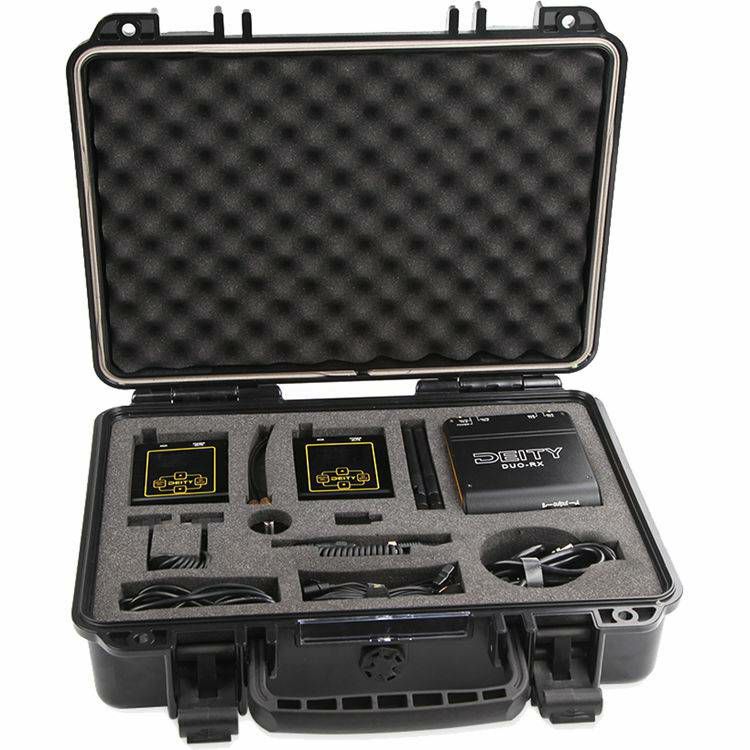

Waterproof Hardshell Case with Custom Foam Insert
