Panosaurus 2.0 3D nodal glava za sferne panorame panoramic head

Panosaurus 2.0 je sferična panoramska fotografska glava stativa, koja se može koristiti za okomite i vodoravne kadrove u krugovima od 360 stupnjeva. Može se postaviti na bilo koji stativ sa standardnim 1/4 "navojem.
Panosaurus glava je pogodna za većinu DSLR fotoaparata (osim u iznimnim slučajevima u kojima je visina od baze do središta objektiva veća od 63 milimetara - kao što je Nikon D2X ili Canon 1D). Glava Panosaurus 2.0 je vrlo stabilna i ima veliku nosivost (4,5 kg). Izrađena je od kvalitetnih materijala - čvrsti aluminijski dijelovi i ekspandirana PVC plastika koja je jaka i izdržljiva, ali iznenađujuće lagana. Ovi materijali doprinose maloj težini panoramske glave, koja iznosi samo 0,9 kg.
Osnovna rotirajuća ploča je označena po stupnjevima (sa 5-stupanjskim prirastom) u više boja kako bi se olakšalo kretanje u koracima od 30 ° (crvena) i 40 ° (plava). Sama rotacija je glatka, a snagu trenja je moguće prilagoditi zatezanjem vijka.

Specifikacije:
Težina: oko 0.9 kg
Nosivost: 4.5 kg
Navoj za prihvat (za stativ): 1/4 "
Materijal: PVC, Aluminij

Opis proizvođača:

The Panosaurus 2.0 is a fully spherical panoramic head, which means it can shoot 360 degrees in both the horizontal and vertical axis while the camera is mounted in the portrait postion.
It can acommodate any DSLR camera which does not exceed 63mm in height from its base to the center of its lens. This would include almost all DSLR cameras being made today - with the exception of the unusually tall cameras like the Nikon D2X and Canon 1D and a few similar models.
The length of lens the Panosaurus 2.0 can accommodate from its optical center to the tripod hole of the camera is 150mm - or 6 inches.

The Panosaurus 2.0 can support up to 10 lbs or 4.5 kg. The solid 1/4" aluminum upright arm is reinforced with a 3/4" solid aluminum block brace making the Panosaurus one of the most stable panoramic heads on the market.
The base is made of 3/4" expanded PVC plastic, which is an excellent vibration reduction material which helps make the Panosaurus 2.0 one of the lightest panoramic heads available - just under 2 lbs or .9 kg.

Color coded degree markings of the polycarbonate circular platform enable easy 30, 40, 60 and 90 degree (or anything inbetween) sequence shooting. The solid machined aluminum rotator arm rotates under tension above a nylon washer - enabling a smooth effortless rotation. The pointer of the rotator arm enables rotation accuracy by sight to within 2.5 degrees. Tension of the rotator arm is easily adjusted with the center screw of the rotator.

The Panosaurs does NOT support offset tripod hole cameras. The small point and shoot cameras that have tripod mounting holes not inline with the center line of the camera lens.
The Panosaurus will support the use of some fish eye lenses. However, a full frame sensor camera using a fish eye lens that is able to see a full 180 degrees will not work with the Pansoarus. A Nodal Ninja R1 is currently the best solution for fish eye lenses with full frame sensor cameras.

The stainless steel hardware of the Panosaurus 2.0 can be quickly adjusted with the on-board magnetically attached micro-screwdriver.
The upright arm is attached to the rotator arm with a single clamping knob from below.
The astronomical grade bubble level is slightly recessed into the upright arm brace in a convenient to read location.

The Panosaurus head will mount to any tripod that has a standard 1/4"-20 thread bolt on its top (the same size bolt that would mount to a camera) or quick release plate.
Although almost any tripod will mount to the Panosaurus, when asked, I recommend a ball head type tripod for mounting the Panosaurus. Using this type of tripod will enable you to level the Panosaurus in just a few seconds. Some Pro type tripods have a 3/8" bolt on their tops. You would need to secure an adaptor to mount the Panosaurus in this case.

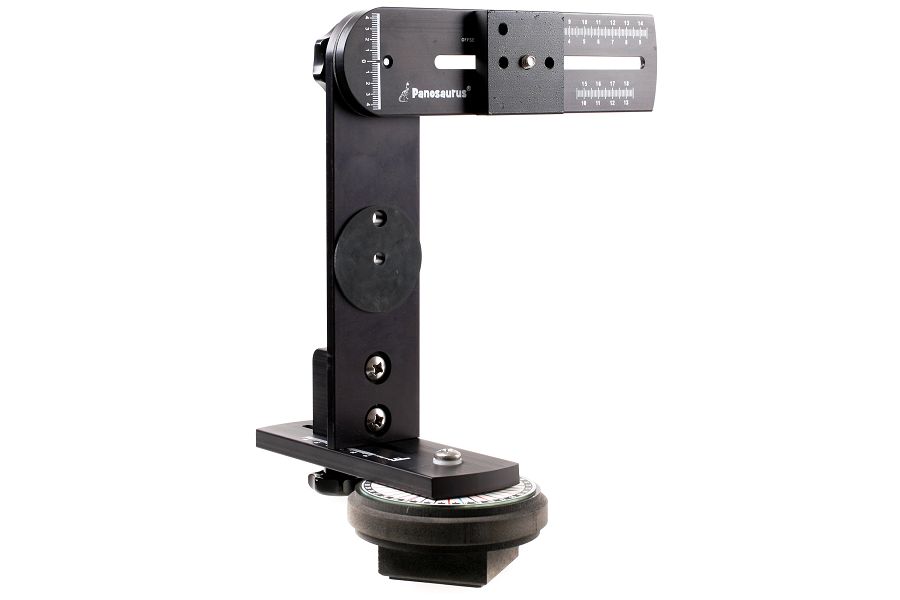

Picture shows the fully assembled Panosaurus 2 without a camera mounted.
The camera mounting block travels down the upper horizontal arm by releasing the tension on 2 set screws. The camera can be quickly removed with a few turns of a screw as well.
The vertical tilt of the Panosaurus 2.0 is controlled by a single clamping knob. The amount of tilt is read through a small hole directly above the clamping knob.
The Panosaurus 2.0 is a fully spherical head. This means it can tilt 90 degrees up or 90 degrees down when mounted in the upper position on the head.
