DJI Zenmuse H3-3D Spare Part 56 Video Output Connection Cable

PRODUCT HIGHLIGHTS

Passes Video Signal Through Gimbal
Includes Connection Cable
Includes Video Output Board
Includes Replacement Sticker
Replacement Part or Spare

The DJI Replacement USB Output Connection Cable for Zenmuse H3-3D Gimbal provides an essential connection between the GoPro camera and H3-3D gimbal. It allows the video signal from the camera to be relayed through the gimbal hardware for connection to a video transmitter, whether for FPV (first-person view) or live monitoring applications.

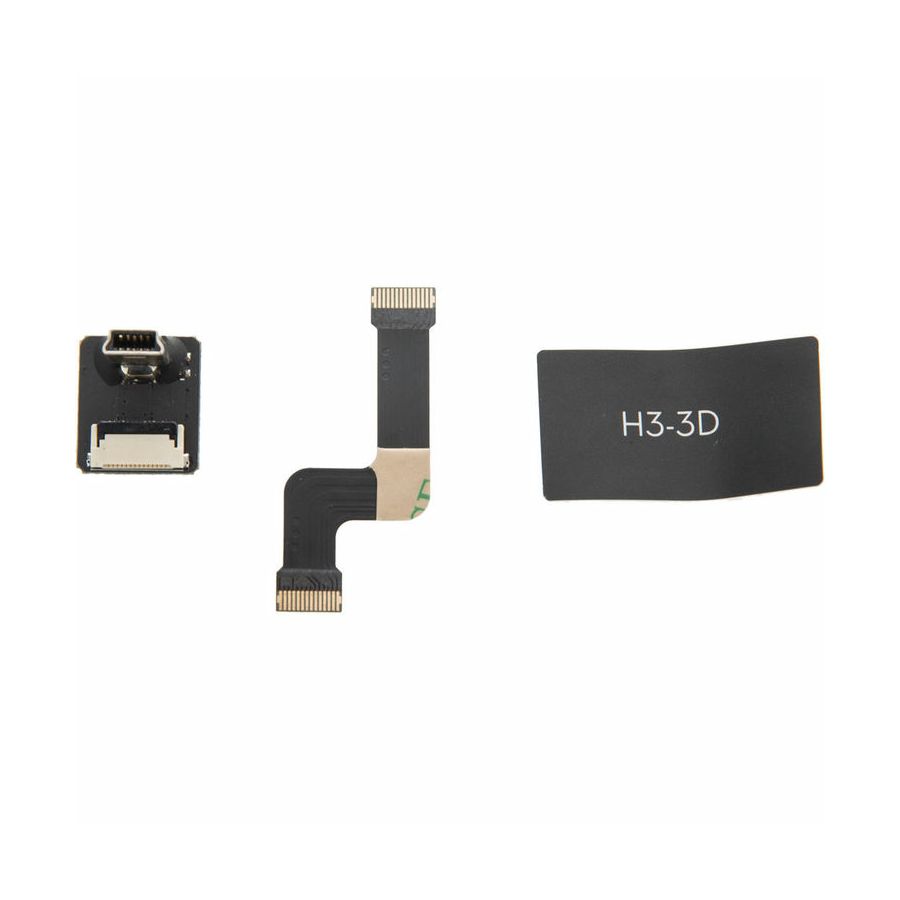

Included Parts
Connection Cable
Makes the connection between the video output board and the gimbal
Video Output Board
An adapter that converts the GoPro's mini-USB output so the connection cable can plug into it
Sticker
Covers the area where the connection cable connects to the gimbal
How to Install
Disconnect and remove GoPro from H3-3D Gimbal
Remove USB connector by flipping up the small black lever near the ribbon cable connector
Peel back the black H3-3D sticker covering the ribbon cable connection to the H3-3D gimbal. Flip up small black lever on H3-3D connection and remove the ribbon cable
Replace cable. Make sure that once connected to the H3-3D connections the small black levers are flipped down, locking the cable connectors in place. Re-apply or replace sticker to cover H3-3D connection

UKLJUČENO:

DJI Replacement USB Output Connection Cable for Zenmuse H3-3D Gimbal
Connection Cable
Video Output Board
Sticker
