DJI Inspire 1 V2.1 Quadcopter with single remote 4K Camera and 3-Axis Gimbal V2.0
PRODUCT HIGHLIGHTS
Ready-to-fly aerial system Capture 4K Video and 12MP Stills 3-Axis Gimbal Stabilizes Camera Up to 1.2 Mile Radio Range GPS-Based Flight Control System Vision Positioning for Indoor Flying Live 720p HD Monitoring with Lightbridge Thrust-Boosted Motors / New Propellers Retractable Carbon Fiber Arms Unobstructed 360° Shooting Dual Transmitter Operation Supported
Capture 4K video and take 12-megapixel still photos from the air with the DJI Inspire 1 v2.1 Quadcopter with Integrated Camera and 3-Axis Gimbal. Forgoing the fixed landing gear design found on many earlier quadcopters, the Inspire 1 features a retractable arm system whereby the underside of each prop motor has a foot to act as a landing pod when the arms are lowered. In-flight, the arms lift up to provide the camera an unobstructed 360-degree view. A 3-axis gimbal keeps shots steady and the camera pointed the same direction as the quadcopter banks and turns. The camera records internally to microSDHC/SDXC memory cards (16GB included) and can also beam a live 720p feed to a mobile device running the DJI Lightbridge app or a monitor or FPV glasses with an HDMI input. One transmitter (radio controller) is included and a second can be added so that one operator can pilot and another can pan and tilt the camera.
As with many other multi-rotor systems, the Inspire 1 relies on a GPS-based stabilization system that – thanks to spatial awareness – is able to hold a position even when experiencing wind interference, can compensate for overzealous pilot inputs to help avoid stalling, automatically brings the aircraft home in the event of signal loss or at the press of a button, and makes possible a number of semi-automated flight modes that can be enabled through the app. There is also an "indoor" mode which relies on Vision Positioning technology – essentially a special camera – provide stability indoors or in other contexts where GPS is unavailable (Note: certain features will be unavailable in indoor mode).
This bundle includes the Inspire 1 along with gimbal and camera, a transmitter, a flight battery, a battery charger, and a tablet holder that mounts on the transmitter. To store and transport the aircraft, a case with fitted cut-outs is included. It holds the Inspire with rotors detached, one or two transmitters, props, spare flight batteries, and more.
What's New for v2? Zenmuse X5/X5R Compatibility In addition to the included Zenmuse X3, this version of the Inspire 1 also works with the Zenmuse X5 and X5R gimbal cameras (available separately) New Propulsion System With the new 3510H motor, the thrust sees a boost. This yields an increase in the motor velocity constant from 350 Kv to 420 Kv. In practice, this translates into better control, especially when using a Zenmuse X5 series gimbal camera Redesigned Propellers To go with the 3510H motors, new propellers and a new propeller mounting system have been introduced. They employ an updated mounting system, designed to make attaching and removing the propellers easier than ever before What Ready-to-Fly Means This Inspire 1 bundle comes ready-to-fly (RTF). This means a pre-bound transmitter (radio controller) is included and that no major assembly is required – in particular, no assembly that requires soldering. It is important – as with any multi-rotor – to follow the user guide to ensure proper calibration before embarking on your first flight Integrated 4K Camera 4K and HD Video Capture The Inspire 1 Camera shoots 4K video at 24p and 30p, and it can shoot HD video frame rates from 24p to 60p. It features a 1/2.3" CMOS sensor with a 94-degree field of view (FOV) lens. This field of view works out to about 20mm in 35mm equivalent, which gives you a wide but not extremely wide or fisheye framing – while not as immersive as a fisheye, this FOV features less distortion and gives the subject more emphasis 3-Axis Gimbal The camera is mounted via an integrated 3-axis gimbal which uses brushless servo motors to keep the shot stable and the horizon level. The camera pans a full 360-degrees so that no matter which way the quadcopter turns, the camera can remain locked on the subject. Manual panning and tilting can be affected using controls on the transmitter Live HD View A real-time feed from the Inspire 1 Camera can be displayed in 720p HD on a mobile device or HDMI monitor, making this it a great choice for FPV (first-person view) flying as well as enabling videographers and photographers to monitor framing from the ground. This is made possible by the inclusion of the DJI Lightbridge system within the flight electronics, which features a range of up to 1.2 miles

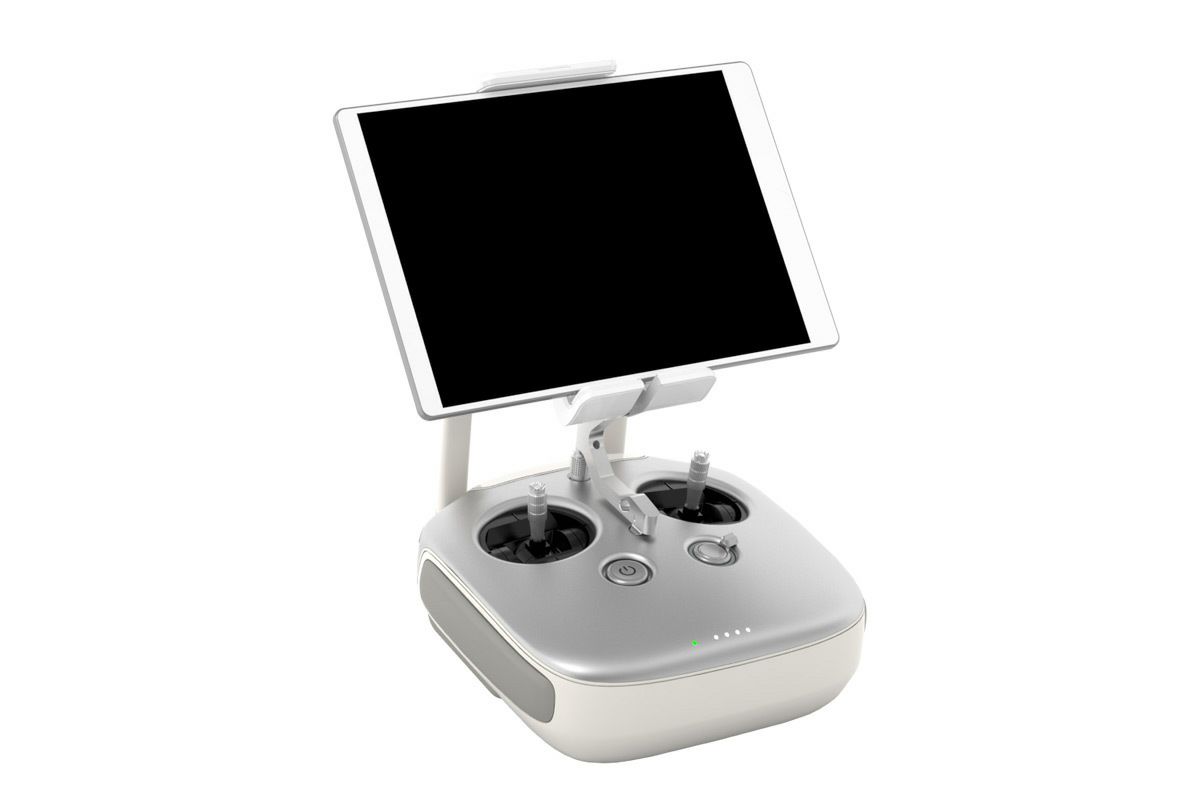

For connecting an FPV monitor or glasses there is an HDMI port on the transmitter. Plus there is a USB port to keep you mobile device's battery topped up. And included mount allows you to attach a smartphone or tablet directly to the transmitter Modular Gimbal and Camera Inspire 1's gimbal and camera can be removed from the aircraft for safe transport and future upgrades Airframe Design Retractable Carbon Fiber Arms The prop arms rest in a lowered position when the Inspire is on the ground, acting as landing gear. Once in the air, they can be retracted to give the camera unobstructed views across 360-degrees. Carbon fiber is used in the construction because of its high strength to weight ratio Aerodynamic Design Not only does it give the Inspire 1 a sleek look, the aerodynamic airframe helps reduce resistance for better performance and increased battery life Flight Control System Fly Indoors and Without GPS DJI's Optical Flow technology uses a specially designed camera as well as sonic waves to provide the same stability function indoors as GPS does outdoors. This technology allows the Inspire to hold its location, stop when the controls are released, and quickly respond to pilot commands even when GPS is unavailable App-Based Control Software Everything from manual camera controls to flight telemetry – even auto takeoff and landing – can be accessed via the Inspire 1 Mobile app. It is also possible to create autopilot courses using waypoints, just as you would on the DJI iPad Ground Station System
Note: The tablet must be connected to the transmitter via USB, and to use the waypoint map an Internet connection is required Manual Mode Change all of your camera settings, including ISO, White Balance, Exposure, and more on the fly ensuring every shot looks exactly the way you want Live Map and Radar See precisely where your Inspire 1 is at all times on the live map. The map can be enlarged when needed, and shows your most recent flight path Dynamic Home Point When GPS signal is available on the transmitter (remote control), the Home Point automatically refreshes. This becomes useful while traveling in a car or on a boat allowing the return-to-home point to move where the operator goes. Multiple configurations are available via the Dynamic Home Point function Auto-Takeoff and Landing Takeoff and landing are available with just a tap. Tap once to takeoff and your Inspire 1 will hover and transform, ready to start filming. Then tap again to make it transform into landing mode and auto land Transmitter Customization Put yourself in charge by tailoring the Inspire 1's controls to your personal needs. This way, your Inspire 1 moves and responds in ways you're most comfortable with Transmitter (Radio Controller) Take control of your Inspire 1 in the air with a dedicated transmitter (radio controller) designed specifically for it. Operating on 2.4 GHz, it features dedicated buttons for photo and video capture, a gimbal control dial, and more. It includes an integrated 6000mAh rechargeable battery Use Two Transmitters For an even greater level of precision, use a second transmitter and fly with a friend. With two people controlling the same quadcopter, one person pilots the flight path while the other aims the gimbal and camera. Each user can have their own screen to see exactly what is being shot in real-time Smart Battery System Smart Power Management The flight battery constantly supplies the flight computer with remaining voltage. Using special algorithms the computer supplies the pilot with estimates of remaining flying distance and time to return home Automated Charging The battery tracks the voltage of each cell, the total number of charges and discharges, and the overall health and battery status
SPECIFIKACIJE:
Performance Hovering Accuracy (GPS Mode) Vertical: 1.6' / 0.5 m Horizontal: 8.2' / 2.5 m Maximum Angular Velocity Pitch: 300°/s Yaw: 150°/s Maximum Tilt Angle 35°/s Maximum Ascent/Descent Speed Ascent: 16.4 fps / 5 m/s Descent: 13.1 fps / 4 m/s Maximum Speed 72.2 fps / 22 m/s (Attitude mode; no wind) Maximum Flight Altitude 14,764' / 4,500 m Maximum Wind Speed Resistance 32.8 fps / 10 m/s Maximum Flight Time With Zenmuse X3: Up to 18 minutes With Zenmuse X5/X5R: Up to 15 minutes Camera Model Name: X3 Designation: FC350 Sensor Sony EXMOR 1/2.3" CMOS Resolution 12.0 MP Lens Field of View: 94° Focal Length (35 mm Equivalent): 20 mm Aperture: f/2.8 Design: 9 elements in 9 groups; aspherical lens element Filters: Anti-distortion filter; UV filter Video Recording UHD (4K): 4096 x 2160: 24p, 25p 3840 x 2160: 24p, 25p, 30p
HD (720p): 1280 x 720: 24p, 25p, 30p, 48p, 50p, 60p
Maximum Bitrate: 60 Mbp/s File Format Photo: JPEG, DNG Video: MP4 in a .MOV wrapper (MPEG-4 AVC/H.264) Recording Media Type: microSD/SDHC/SDXC up to 64 GB Speed: Class 10 or faster Format: FAT32/exFAT Photography Modes Single shot Burst: 3, 5, 7 frames per second (AEB: 3/5 frames per second; 0.7 EV bias) Time-lapse Operating Temperature 32 to 104°F / 0 to 40°C Gimbal Model Zenmuse X3 Number of Axes 3-axis Control Accuracy ±0.03° Maximum Controlled Rotation Speed Pitch: 120°/s Pan: 180°/s Controlled Rotation Range Pitch: -90° to +30° Pan: ±330° Angular Vibration Range ±0.03° Output Power Static: 9 W In Motion: 11 W Operational Current Static: 750 mA In Motion: 900 mA Mounting Detachable Flight Controller Indoor Hovering Enabled by default Optical Sensor (Optical Flow) Frequency: 50 Hz Velocity Range: Below 26.2 fps / 8 m/s (6.6' / 2 m above the ground) Altitude Range: 2 to 196.8" / 5 to 500 cm
Operating Environment: Rich pattern surface with adequate lighting (> 15 lux) Operating Range: 0 to 8.2' / 0 to 2.5 m Motor Model DJI 3510H Motor Velocity Constant 420 Kv Maximum Thrust 4.8 lb / 2200 g at 25 V and sea level Weight 3.8 oz / 107 g Propeller Model DJI 1345 Transmitter Operating Frequency Transmitter to Transmitter: 5.728 to 5.850 GHz Transmitter to Aircraft: 2.400 to 2.483 GHz Range Line-of-Sight: Up to 6561.7' / 2000 m Receive Sensitivity 1% PER:-93 dBm EIRP 10 dBm at 900 MHz; 8 dBm at 5.8 GHz; 20 dBm at 2.4 GHz Connectivity 1 x USB type A female (for connecting mobile device) 1 x Micro-USB for firmware updates 1 x Mini-HDMI video output for FPV 1 x CAN-Bus port (for future accessory) Dual User Capability Host-and-slave connection Mobile Device Holder Tablet or smartphone Output Power 9 W Power Requirements 1.2 A at 7.4 VDC Battery 6S LiPo; 6000 mAh Charging Temperature Less than 3 Months: -4 to 113°F / -20 to 45°C More than Three Months: 72 to 82°F / 22 to 28°C Storage Temperature Less than 3 Months: -4 to 113°F / -20 to 45°C More than 3 Months: 72 to 82°F / 22 to 28°C Mobile Device Holder Device Width: 2 to 6.7" / 5 to 17 cm Flight Battery Model TB47 Voltage 6S LiPo; 22.2 VDC Capacity 4500 mAh / 99.9 Wh Maximum Charging Power 180 W Operating Temperature -4 to 104°F / -20 to 40°C Storage Temperature -4 to 113°F / -20 to 45°C 72 to 82°F / 22 to 28°C Charging Temperature 32 to 104°F / 0 to 40°C Weight 1.3 lb / 570 g Charger Model A14-100P1A Voltage 26.3 VDC Output Power 100 W Mobile App System Requirements iOS: 7.1 or later Android: 4.1.2 or later
Note: The device must be connected to a transmitter via USB (wireless linking is not supporting). Additionally, waypoint navigation requires an active Internet connection in order to load the maps General Model Aircraft: T600 Operating Temperature 14 to 104°F / -10 to 40°C Dimensions Diagonal Distance: Landing Gear Lowered: 22" / 559 mm Landing Gear Raised: 22.9" / 581 mm
Overall Dimensions: 17.2 x 17.8 x 11.9" / 438 x 451 x 301 mm
Transit Case: Exterior: 22.4 x 19.7 x 10.6" / 57 x 50 x 27 cm Weight With Battery: 6.5 lb / 2.9 kg
EAN: 6958265115899
UKLJUČUJE:
DJI Inspire 1 v2.1 Quadcopter with 4K Camera and 3-Axis Gimbal Transmitter for Inspire 1 Quadcopter Zenmuse X3 Gimbal and Camera Unit (Inspire 1 Variant) Mobile Device Holder TB47B Intelligent Flight Battery for Inspire 1 (99.9Wh) ND Filter Flight Battery Charger Charging Cable for Transmitter Power Cord 4 x Spare Prop CW/CCW Pairs 16GB microSD Memory Suitcase for Inspire 1 Quadcopter
Jamstvo: 12 mjeseci ili 200 sati rada Aircraft (whichever Comes First; Excluding Propellers, Gimbal, Camera, and Battery) 12 mjeseci Gimbal/Camera 6 mjeseci ili 200 sati rada Battery (whichever Comes First)
Canosa je ovlašteni zastupnik distributer uvoznik i servis za DJI iFlight Technology. Canosa je ovlašteni DJI zastupnik i uvoznik.
U ponudi je kompletan DJI asortiman dronova i opreme za snimanje iz zraka (DJI Phantom, DJI Inspire, DJI Spreading Wings, DJI Zenmuse, DJI Lightbridge, DJI Ground Station, HD video downlink, DJI Ronin, iOSD mini, iOSD mark II). DJI profesionalni dronovi i oprema za snimanje iz zraka.
Canosa DJI Authorized Dealer. Canosa je DJI Gold Dealer (DJI GmbH)
