MQR06 Charger

The microprocessor controlled quick-charger MQR06 is perfectly made for the demanding user. The plug is molded to the case for direct use into an A/C wall socket. If you take off the European plug, you will be able to use the US-plug, which is placed behind it. A very special feature is the individual charging, whereas each single cell gets charged on its own. The charging progress gets checked and ended for each single cell via Peak-Cut-Control.

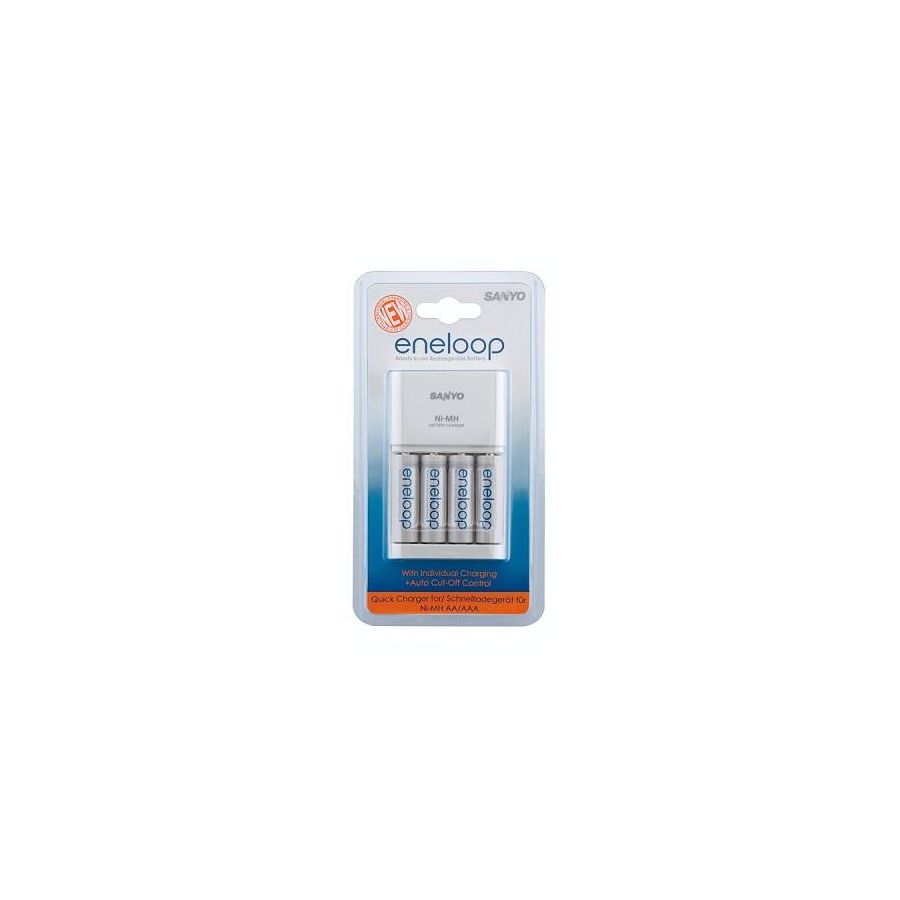

MQR06 with 4 AA / 4 AAA eneloop
Model Name

MQR06-E-4-3UTGB (European Plug)

MQR06-E-4-4UTGB (European Plug)

MQR06-U-4-3UGB (UK Plug)
Includes Asian & American plug for travelling
Charge Indicator Individual Cell Charging Control with 4 LEDs
Peak-Voltage-Detection yes
Timer & Temperature Control yes
Dry Cell Charge Protection yes
Charging Possibilities 1, 2, 3 or 4 rechargeable AA or AAA Ni-MH batteries
Universal Voltage Power Supply yes
Input AC 100-240V ~, 50-60Hz, 7W
Output

DC 1.2V: 4 x AA: 560mA, 2 x AA: 1120mA, 1 x AA: 1680mA



DC 1.2V: 4 x AAA: 280mA, 2 x AAA: 560mA, 1 x AAA: 480mA
Approx. charging time for eneloop AA & AAA

1 x AA: 75 min, 2 x AA: 110 min, 4 x AA: 220 min



1 x AAA: 65 min, 2 x AAA: 100 min, 4 x AAA: 200 min
Size & Weight

68 x 112 x 64 mm, approx. 116 g
