DJI Ronin-M Spare Part 17 Remote Controller for Ronin-M 3-axis handheld gimbal stabilizer

2.4 GHz Transmitter
Controls Gimbal Pan, Tilt, & Roll
Switch Between Modes and Speed Settings
Pre-Configured for Ronin-M
Internal Rechargeable Battery
Battery Charging & Configuration via USB
Replacement Part No. 17

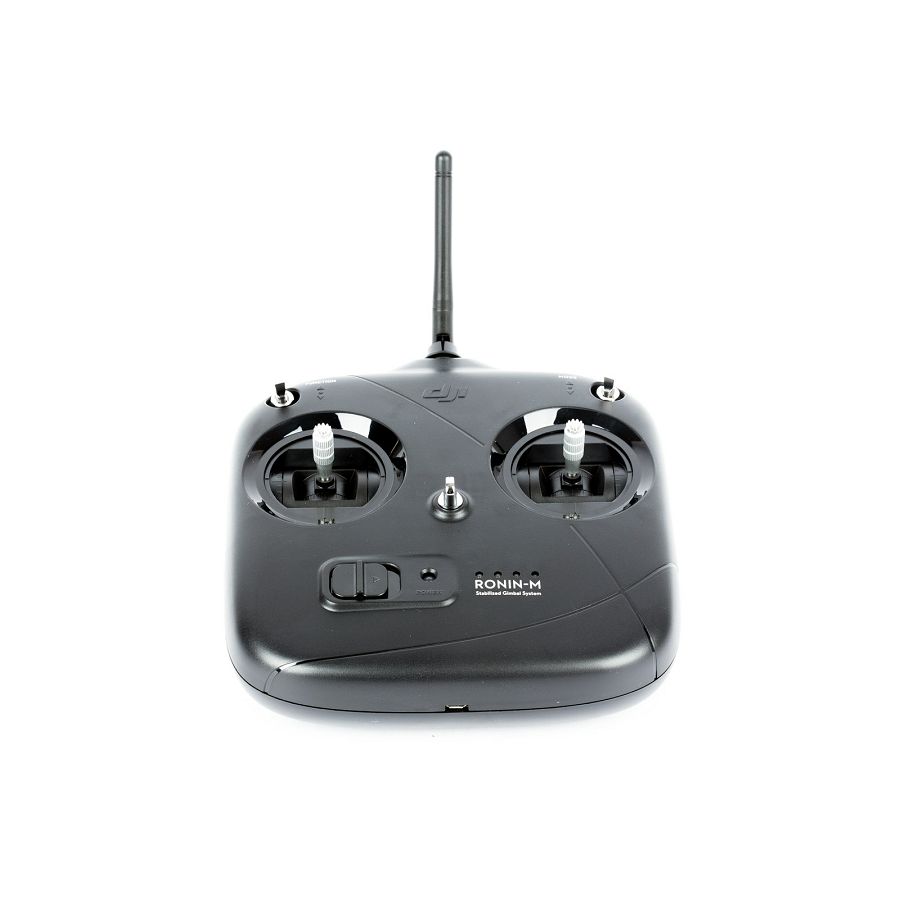

The Remote Controller for Ronin-M from DJI is a dedicated 2.4 GHz handheld transmitter that comes pre-configured for Ronin-M gimbal operation. With the transmitter, one operator can carry the gimbal while a second operates controls the gimbal pan, tilt, and roll remotely. This enables much more precise camera movements than is possible with only a single operator.

Notes:
This is for use with the Ronin-M only. It is not compatible with the Ronin.

Please make sure that the remote control is sufficiently charged before use. The remote will automatically turn off if the battery voltage gets too low.

Charge the internal battery using the Micro-USB cable included with the Ronin-M. Using the incorrect type of charging cable may cause damage.

Turn off the remote control before charging. The power LED indicator will glow solid green when the battery is fully charged.

When using the remote control, ensure that the antenna is at least 7.9" away from any person.

Key Features

Internal battery with USB charging
Power indicator light
LEDs indicate remaining battery
Carry handle
Neck strap attachment point
Configurable/updatable with RC Assistant software

Controls (Default Settings)

Right 3-Position Switch: Select mode
Left 3-Position Switch: Select function (Fast, Normal, and Slow)
Left Dial: Reserved
Right Joystick: Horizontal movements control the pan axis; vertical movements control the tile axis
Left Joystick: Horizontal movements control the roll axis

SPECIFIKACIJA:

Frequency 2.4 GHz
USB Micro-USB for Assistant software/charging
Power Requirements Built-in rechargeable battery 1
Please Note:

The remote control will turn off automatically when battery voltage drops below 3.45 V.
